All stock codes associated to this product
MW145BT, MW-145BT

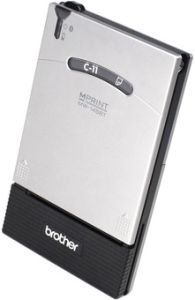

MW-145BT
A6-A7 Mobile Printer
Overview
The MW-145BT is the flagship model of the MPrint mobile printer family. Printing hard copy while on the move is now even easier with the new Bluetooth version of MPrint; the world's smallest self-contained mobile printer.
Its 'palm size' means it can be carried effortlessly, even in a jacket pocket. It uses A7 paper that is automatically fed from its own cassette, eliminating the need to feed each sheet individually. With easy to handle paper that doesn't curl, you are ensured quality printing anywhere, anytime.
USB connection is available whilst the print driver automatically re-sizes A4 documents down to A7 (whether landscape or portrait) when printing from Windows based applications. technology.
The MW-145BT boasts a superior wireless technology for communicating with SmartPhones and PDA's - Bluetooth! USB interfaces are also available to communicate with tablets and notebooks.
Print Engine: Direct Thermal
Print Speed: Ave.: 15 sec./page or 4.4 mm/sec.(under our standard environment)
Interface: USB 2.0 Full speed Bluetooth Ver. 2.1+EDR Class 2 (Serial PortProfile)
Max Print Area: C11: 69 x 100mm C51: 62 x 95mm
Warranty: 12 Months Return To Base Warranty Information
Specifications:
General
- Model: MW-145BT
- Print Engine: Direct Thermal
- Functions: A7 Mobile Printer with USB and Bluetooth interface - 300dpi
- Standard Memory: NA
- Drop Protection: NA
- Keyboard: Power Key (On/Off), Bluetooth Key(On/Off)
Display
- Display Type: LED Status Indicator: Blue / Green / Red LED Charging Indicator: Orange
Printer
- Emulation: 3 command (Brother original command, MPrint ESC/P command, P-touch template printer command)
- Print Speed: Ave.: 15 sec./page or 4.4 mm/sec.(under our standard environment)
- Printer Resolution: 300 x 300dpi
- Printer Driver Functions: Page size: 4(A7, A4->A7(default), B5->A7 and Letter->A7) Half-tone: 3 (Dithering, Error diffusion, None)
- Max Print Area: C11: 69 x 100mm C51: 62 x 95mm
Paper Handling
- Standard Paper Capacity: C-11:A7 Thermal x (50 sheets/cassette) C-51:A7 Carbon copy (2ply) x (30 sheets/cassette)
- Media Size General: 74mm x 105mm (A7)
Software
- Software Development Kit: Pocket PC2002/2003, Windows Mobile 5 / 6, Blackberry, Windows 2000/XP/Vista
- Template Transfer to Machine: Yes
Connectivity
- Interface: USB 2.0 Full speed Bluetooth Ver. 2.1+EDR Class 2 (Serial PortProfile)
- Operating System: Windows PC: Windows 2000 Professional / XP / Vista Windows Mobile: WM5 / WM6
- Mobile Operating System: Software Development Kit for Pocket PC2002/2003, Windows Mobile 5 / 6, Blackberry, Windows 2000/XP/Vista/Windows7
Networking
- Wireless Interface: NA
- Wireless Security: NA
Options
- Optional Power: Rechargeable lithium-ion battery 780mAh(7.4V) (BT-100) AC Adapter Auto switching (100-240V)
- Optional Car Mount: NA
- Optional magnetic card reader: NA
- Optional Carry Case: Yes (PCS-100)
Consumable
- Consumables: C-11: A7 Thermal x (50 sheets/cassette) C-51: A7 Carbon copy (2ply) x (30 sheets/cassette) - Special software from SDK needed
Weight and Measures
- Size: 100(W) x 163(D) x 17.5(H)mm (including 3mm antenna)
- Weight: 300g (including paper cassette and battery)
Environment
- Auto Power Off: Power-off (5 minutes), Bluetooth sleep mode (3 minutes)
- Humidity: Operating Humidity: 20 to 80%
- Temperature: Operating Temperature: 0 to 40deg C
Others
- Warranty: 12 Months Return To Base Warranty Information
- Carton Contents: MW-145BT, Quick Setup Guide, CD-ROM (Including users guide, printer driver), USB cable, C-11 thermal paper (50 sheets), Lithium ion Rechargeable battery pack (BT-100), AC Adaptor (AD-210AUS)
