Design
Description
Steam Castle WHS & BKS are dedicated high quality gaming computer case with great compatibility of up to 320mm graphic card installation. Steam punk style bold presentation has made steam castle a unique computer case. Its excellent ventilation performance is contributed by multiple air channels on front, rear, top and bottom panel.

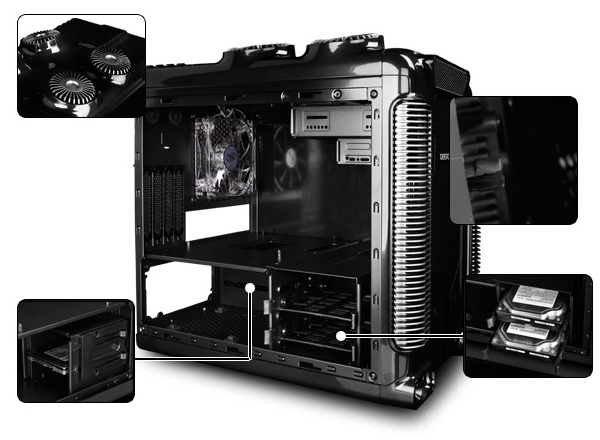

Tool-free Design
- Tools-free 2.5/ 3.5 SSD and HDD installation.
- Plug indesign of front and Top panel.
- Independent two 2.5 drive-bays support SSD RAID build-up.
Aesthetic Appearance
- Unique post-modern steam-punk style appearance, strong structure.

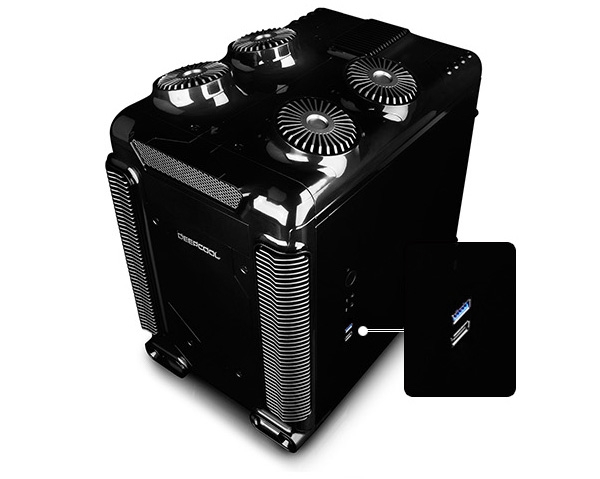

- Top 4 turbo-type air exhaust holes,good for modding.
- Visible acrylic side window.

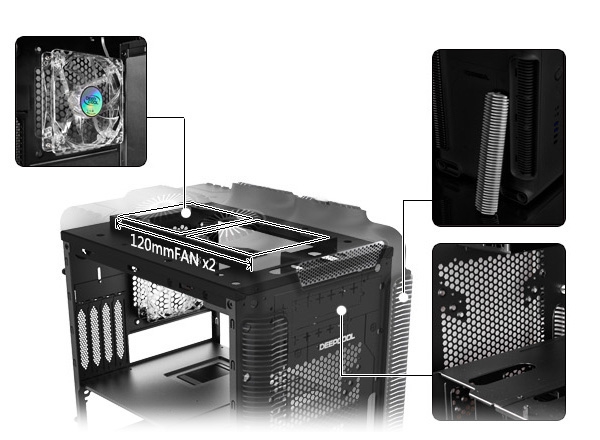

Optimized Airflow and Anti-dust Design
- Pre-installed 120mm LED fan at rear.
- Optional: Front: 1×200/140/120mm fan;
- Top: 2×120/140mm fan.
- With rubber buffer and dust filter for PSU.
- 3cm ground lifted design for PSU heat dissipation.
- Detachable strip on the front panel for dust cleaning.
- Two-layer horizontal structure, excellent for heat dissipation.
Excellent compatibility Protective approaches
- 1 USB 3.0 +1 USB 2.0 Ports at side panel.

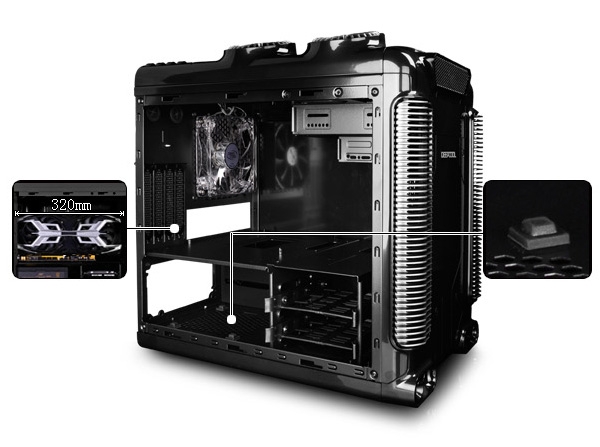

- Support long VGA Card installation up to 320mm length.
- Bottom located PSU for better space management.
- Supports up to 2 PCI graphics card installation.
- Shock absorbing pad for PSU protection.
Features
- Unique post-modern steam-punk style appearance, strong structure
- Side-window and top 4 turbo-type air out-taking holes, good for modding
- 120mm LED fan pre-installed at rear side
- 1 USB 3.0 +1 USB 2.0 Ports
- Horizontal structure, perfect for top-performance air cooler installation
- Two-layer horizontal structure, excellent for heat dissipation & compatibility
- Compatible with Micro ATX and Mini-ITX motherboards
- Support long VGA Card installation up to 320mm length
- Top panel supports max 240mm water cooler installation
- 2 grommets on the rear are ready for building external water-cooling system
- Tool free installation design for 2.5’’/3.5’’ SSD/HDD
- Independent two 2.5’’ drive-bays support SSD RAID build-up
- With rubber buffer and dust filter for PSU
Technical Specifications:
| Motherboards |
MICRO ATX/MINI-ITX |
| Materials |
SGCC+PLASTIC (ABS) (Panel thickness: 0.95mm. very strong) |
| Dimension (LxWxH) |
406*278*420mm |
| Net Weight |
7.17kg |
| 5.25" Drive Bays |
1 |
| 3.5" Drive Bays |
3 (Switchable to 2.5") (2 tool-free installation) |
| 2.5" Drive Bays |
2 (tool-free installation) |
| I/O Panel |
1USB3.0/1USB2.0/Audio1/Mic1 |
| Expansion Slots |
4 |
| Cooling Fans |
Pre-installed: Rear: 1120mm LED fan (140mm holes available), Optional: Front: 1200/140/120mm fan; Top: 2120/140mm |
| Power Supply Type |
ATX PS2 (max: 160mm length) (W150*L160*H86mm) |
| CPU Cooler Compatibility |
max: 200mm height |
| VGA Compatibility |
max: 320mm length |
