All stock codes associated to this product
DPMATXSMTRLED, DP-MATX-SMTRLED
Design
Description
Smarter series is designed to be Micro ITX/ Mini ITX computer case with high compatibility. Small size of 420 x 201 x 365mm has made Smarter an ideal choice for gamers or DIY enthusiast who are seeking for computer case to fit in limited space. Nothing could be simpler than Smarter computer case.
Classical Small Case Management
- Dedicated Micro ATX/ Mini-ITX Design
- 420 x 201 x 365mm Case Dimension
- Pre-installed two blue LED fan on the rear and front panel
- High VGA card and CPU cooler installation compatibility.
Simple Refinement
- 1 x 120mm fan mounting holes on the side panel

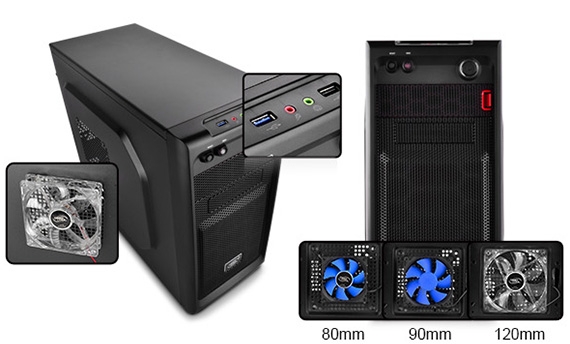

- USB ports, plugholes and switches on top panel for easier operation
Front Panel Ventilation
- Full dust-filter in the interior panel.
- Attachable 5.25” and 3.5” drive bay covers
- 120mm, 90mm and 80mm mounting holes on front panel
Effective Space Management
- Upper panel located PSU
- Ground-lifted design for better air dynamic and cooling performance of PSU fan's air intake
- 120mm and 80mm mounting holes on rear panel

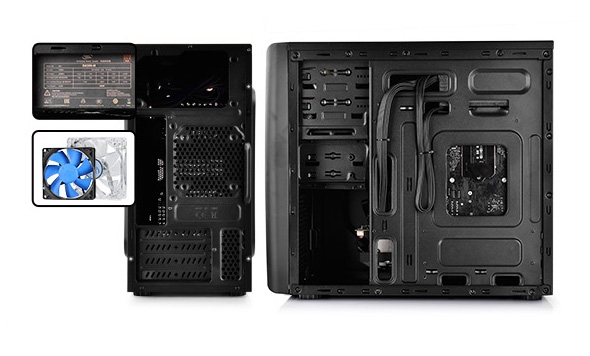

Backplate Cable Installation
- Multiple channels for supreme cable management.
Features
- Classical Micro ITX/ Mini ITX computer case with simple panel design
- Fully black painted interior
- Support backplate cable management design
- 420 x 201 x 365mm dimension

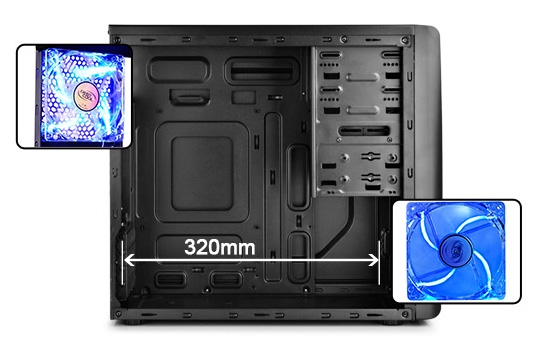

- High compatibility of up to 320mm VGA compatibility
Specifications
| Motherboards |
MICRO ATX/MINI-ITX |
| Materials |
SPCC+PLASTIC (ABS) (Panel thickness: 0.5mm) |
| Dimension (LxWxH) |
420*201*365mm |
| Net Weight |
3.65kg |
| 5.25" Drive Bays |
1 (External) |
| 3.5" Drive Bays |
3 (1 external, 2 internal ) |
| 2.5" Drive Bays |
1 (internal) |
| I/O Panel |
1USB3.0/1USB2.0/Audio1/Mic1 |
| Expansion Slots |
4 |
| Cooling Fans |
Optional:
Rear: 1120/80mm; Front: 1120/90/80mm
side: 1120mm |
| Power Supply Type |
ATX PS2 |
| CPU Cooler Compatibility |
165mm |
| VGA Compatibility |
320mm |
