Intel P4304XXMUXX Server Chassis - 4U
  • 4x Fixed 3.5" Drive Sleds, 2x Hot-Swap Fans, 4x Fixed Power Connectors, 1x 4-port Fan-Out SATA Cable, 1x Hot-swap Bezel, For Intel Server Board S2600CW

IMG 1 of 1
No Longer Available
Part Number:
388232
(?) Brand:
Intel Web Site
Manuf No:
P4304XXMUXX
Shipping Weight:
20 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
P4304XXMUXX, 2749306, 735858289962, 5032037068802

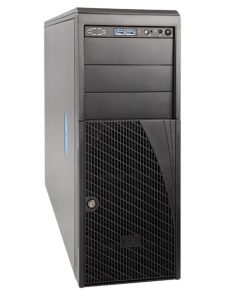

Intel Server Chassis P4304XXMUXX


4U pedestal chassis designed specifically for the Intel Server Board S2600CW with default of four 3.5" fixed drives support, and optional 3.5" or 2.5" Hot Swap drives support. Power supply options sold separately and include redundant 750W and 1600W.

Specifications

Essentials

Launch Date Q4'14
Status Launched
Expected Discontinuance Q4'17
Limited 3-year Warranty Yes
Extended Warranty Available for Purchase (Select Countries) Yes
Chassis Form Factor 4U Rack or Pedestal
Chassis Dimensions 17.24" x 24.9" x 6.81"
Datasheet Link
Description 4U pedestal chassis designed specifically for the Intel Server Board S2600CW with default of four 3.5" fixed drives support, and optional 3.5" or 2.5" Hot Swap drives support. Power supply options sold separately and include redundant 750W and 1600W.
Target Market Embedded
Redundant Fans Yes
Redundant Power Supported Supported, requires additional power supply
Backplanes Sold Separately
Included Items (2) Hot-swap fans, (1) standard control panel, (4) fixed 3.5 inch drive sleds, (4) fixed power connectors, (1) 4-port fan-out SATA cable, (1) high current power distribution board, (1) processor/memory airduct, (1) hot-swap bezel, (1) fixed EMI cover, (1) spare hot-swap EMI cover, and (1) Quick User Guide.
# of Front Drives Supported 4
Front Drive Form Factor Fixed 2.5" or 3.5"



Package Specifications

Max CPU Configuration 2


No additional files, specification sheets, guides or documentation found for product.

Warranty: 3 Year

Full manufacturers warranty details are available at the manufacturers (Intel) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
