All stock codes associated to this product
SSTPS11BQ, SST-PS11B-Q
PS11

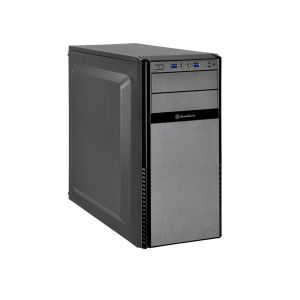

Precision Series
A versatile ATX tower case for perofmrance or silence
INTRODUCTION
To meet enthusiasts’ expectations for a versatile entry-level case, SilverStone created the Precision PS11 ATX tower case with no compromise in style or in quality. By adopting the bottom-PSU-mount design, the PS11 has flexible storage options and a wide range of support for nearly all components. Despite affordable prices, it still retains outstanding and practical features such as Superspeed USB 3.0 ports, space for high performance graphics cards, and support for various cooling configurations. The PS11 comes in two versions, one with side window and a mesh front panel for high cooling performance, while the other one has sound absorbing foam and indirect front-side intake vents for quiet operation.
SPECIAL FEATURES
- Quick access filters for easy cleaning
- Motherboard back plate opening for quick CPU cooler assembly
- Mesh front panel intake maximizes airflow with side window for viewing system innards (PS11-W)
- Front-side intake vents with foam padded side panels to minimize noise (PS11-Q)
- All black painted interior for stylish look
- Support graphics cards up to 16.2 inches
- 120mm fan slot
- 2 x 120mm fan slot (PS11B-W)
- I/O ports include microphone, audio, and two USB 3.0 ports
- Motherboard tray cut-out for CPU cooler backplates
- Two 5.25 drive bay space with tool-less locks
- Seven expansion slots accommodates top-end graphics card up to 16.2 long
- Two 2.5 drive bay
- Fan filter for power supply intake area
- 2 x 120mm/140mm fan slot
- Three tool-less 3.5 drive bays
- Front-side intake vents with foam padded side panels to minimize noise (PS11B-Q)
- Mesh front panel intake maximizes airflow with side window for viewing system innards (PS11B-W)
- 1 x 120mm intake front fan included (PS11B-Q)
- 1 x 120mm intake LED front fan included (PS11B-W)
Specifications
|
Model No.
|
SST-PS11B-W |
| SST-PS11B-Q |
| -- |
| -- |
|
Material
|
Mesh front panel, steel body (SST-PS11B-W)
Plastic front panel, steel body (SST-PS11B-Q) |
|
Motherboard
|
ATX , Micro-ATX |
|
Multimedia
|
-- |
|
Drive Bay
|
External |
5.25 x 2 |
| -- |
| Internal |
3.5" x 3 , 2.5 x 2 |
|
Cooling System
|
Front |
2 x 120mm/140mm fan slot
(1 x 120mm intake fan included) |
| Rear |
1 x 120mm fan slot |
| Side |
-- |
| Top |
2 x 120mm fan slot (SST-PS11B-W) |
| Bottom |
1 x 120mm fan slot |
| Internal |
-- |
|
Expansion Slot
|
7 |
|
Front I/O Port
|
USB 3.0 x 2
Audio x 1
MIC x 1 |
|
Power Supply
|
1 x optional standard PS2(ATX) |
|
Operating system support
|
-- |
|
Expansion Card
|
Compatible with expansion cards up to 16.2 , width restriction - 6.1 |
|
Limitation of CPU cooler
|
161mm |
|
Limitation of PSU
|
225mm |
|
Net Weight
|
4.825KG |
|
Dimension
|
215.3mm (W) x 426.5mm (H) x 481.5mm (D), 44L |
|
Extra
|
-- |
|
Support VESA Mount
|
-- |
