SilverStone Kublai KL05 Midi-Tower Case - NO PSU, Black
  • 2xUSB3.0, 1xAudio, 1x120mm Fan, Plastic Front Panel, Steel Body, ATX

IMG 1 of 3
No Longer Available
Part Number:
388480
(?) Brand:
SilverStone Web Site
Manuf No:
SST-KL05B-Q
SSTKL05BQ
Shipping Weight:
20 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
SSTKL05BQ, SST-KL05B-Q
KL05

INTRODUCTION

The Kublai KL05 is a high quality ATX tower case designed for enthusiasts with the need for ample liquid cooling and storage space. It has convenient tool-less 5.25” drive bays and highly flexible cages designed to accommodate any combination of 2.5” or 3.5” drives. With a relatively tall and slender profile, it has surprising room for fitting liquid coolers. Not only does it have complete support for 240mm and 280mm radiators on both the top and the front panel, it has numerous paths for tubing, mounting holes for fans, and easily removable filters for an exceptionally cool and clean build. KL05 is offered in two variations depending on front panel design so whether the preference is for a direct intake case with side window or a conservative, quiet build with indirect intake and sound-absorbing foam, there is a model perfectly suited for the intended task.

SPECIAL FEATURES

  • Interference-free design for mounting 240mm or 280mm radiator
  • Highly flexible storage accommodation of up to 8 or 11 drives*
  • Quick access filters for easy cleaning
  • Motherboard back plate opening for quick CPU cooler assembly
  • Mesh front panel intake maximizes airflow with side window for viewing system innards (KL05-W)
  • Front-side intake vents with foam padded side panels to minimize noise (KL05-Q)
  • All black painted interior for stylish look
  • *Requires purchase of additional drive cage


  • 2 x 120mm / 140mm fan slot
  • Interference-free design for mounting 240mm or 280mm radiator
  • I/O ports include microphone, audio, and two USB 3.0 ports
  • 120mm fan slot
  • Two 5.25” drive bay space with tool-less locks
  • Motherboard tray cut-out for CPU cooler backplates
  • 1 x 120mm intake fan included (KL05B-Q)
  • 1 x 120mm intake LED fan included (KL05B-W)
  • Eight expansion slots accommodates top-end graphics card up to 16” long
  • Front-side intake vents with foam padded side panels to minimize noise (KL05B-Q)
  • Mesh front panel intake maximizes airflow with side window for viewing system innards (KL05-W)
  • Two 2.5” SSD/HDD slots on the backplate
  • Fan filter for power supply intake area
  • Six highly flexible cages designed to accommodate any combination of 2.5” or 3.5” drives

Specifications

Model No.
 SST-KL05B-W
SST-KL05B-Q
--
--
Material
 Mesh front panel, steel body (SST-KL05B-W)
Plastic front panel, steel body (SST-KL05B-Q)
Motherboard
 ATX , Micro-ATX
Multimedia
 --
Drive Bay
 External 5.25 x 2
--
Internal 3.5" x 6 or 2.5 x 6 , 2.5 x 2
Cooling System
 Front 2 x 120mm/140mm fan slot (1 x 120mm intake fan included)
Rear 120mm fan slot x 1
Side --
Top 120mm / 140mm fan slot x 2
Bottom 120mm fan slot x 2
Internal --
Expansion Slot
 8
Front I/O Port
 USB 3.0 x 2
Audio x 1
MIC x 1
Power Supply
 Optional Standard PS2(ATX)
Operating system support
 --
Expansion Card
 Compatible up to 16, 11 with optional drive cage (sold separately) installed
Limitation of CPU cooler
 165mm
Limitation of PSU
 225mm
Net Weight
 KL05-Q:6.8Kg / KL05-W:6.9Kg
Dimension

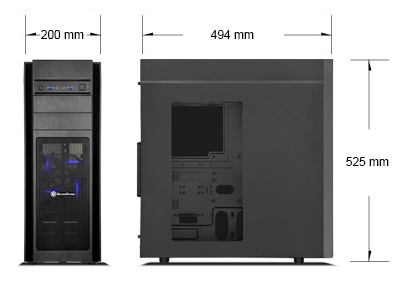

 200mm (W) x 525mm (H) x 494mm (D), 52 liters
Extra
 Support Kensington locks
Support VESA Mount
 --

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (SilverStone) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
