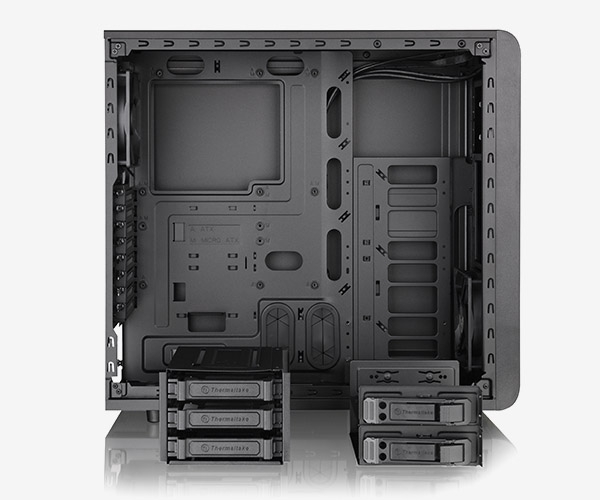

A customizable 5.25 & 3.5 drive bay feature enables users to freely interchange the 3.5 hard-drive cages to suit their particular needs, whilst being able to remove the 5.25 & 3.5 drive bays to gain maximum interior space for advance cooling performance or liquid system build.

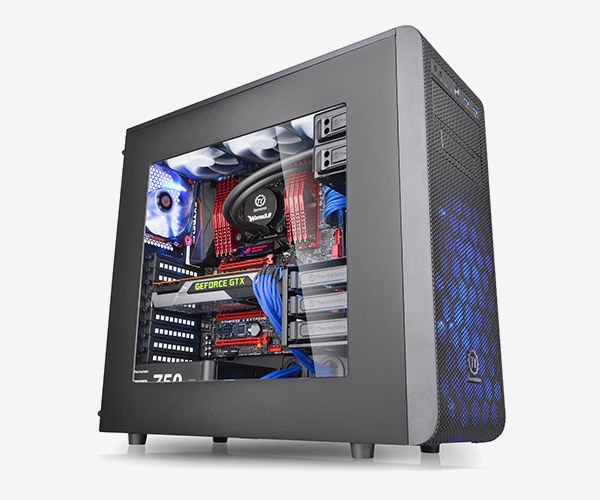

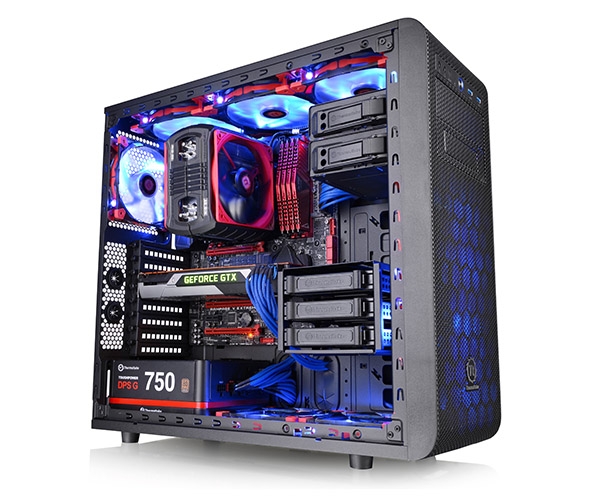

Core V31 delivers an outstanding cooling performance, which consists of DIY/AIO liquid cooling systems and air cooling units. Standard equipped with a 120mm intake fan which is hidden behind the front dust filter, quietly pushing infinite amounts of air over the hard drives and GPUs. The air is then extracted by a second 120mm fan at the rear. Additionally, with the aid of the cable management design that is guaranteed to take the cooling performance to the next level.
Liquid Cooling Support

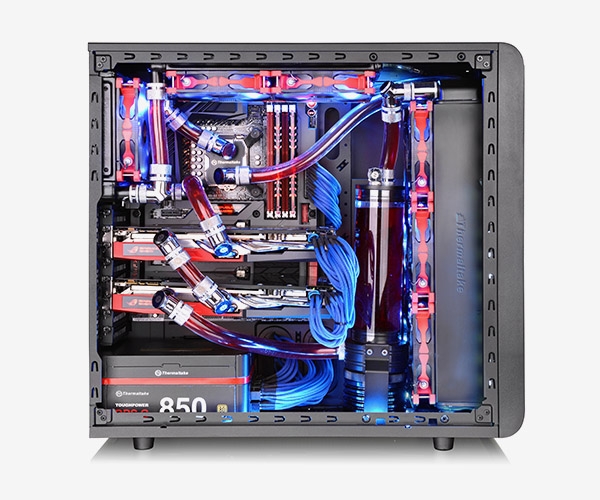

Core V31 enables users to build a high-end liquid cooling system by supporting up to 360mm liquid cooling radiators, along with long graphic cards, and other liquid cooling components. The series is not only aimed at simultaneously protecting the hardware, but also to increase the CPUs overclocking potential. Most importantly, it has the capability to deliver an outstanding cooling efficiency throughout the entire chassis.
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

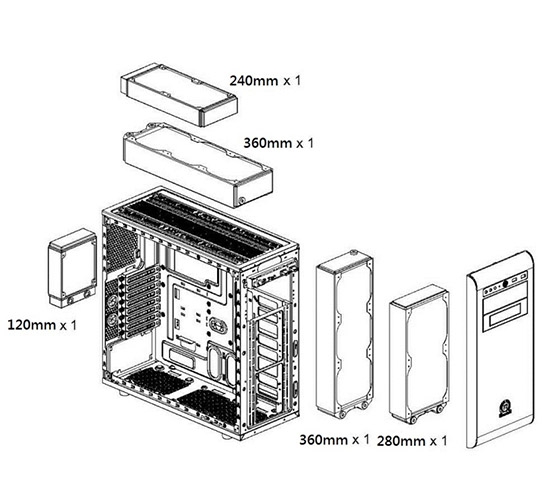

Core V31 Radiator Supporting List
| Radiator Compatibility |
| |
120mm |
140mm |
240mm |
280mm |
360mm |
| Front |
* |
* |
* |
* |
* |
| Top |
* |
|
* |
* |
* |
| Rear |
* |
|
|
|
|
| Bottom |
|
|
|
|
|
|
| Water 3.0 Compatibility List |
| |
Ultimate |
Extreme |
Pro |
Performer |
| Front |
* |
* |
* |
* |
| Top |
* |
* |
* |
* |
| Rear |
|
|
* |
* |
| Bottom |
|
|
|
|
|

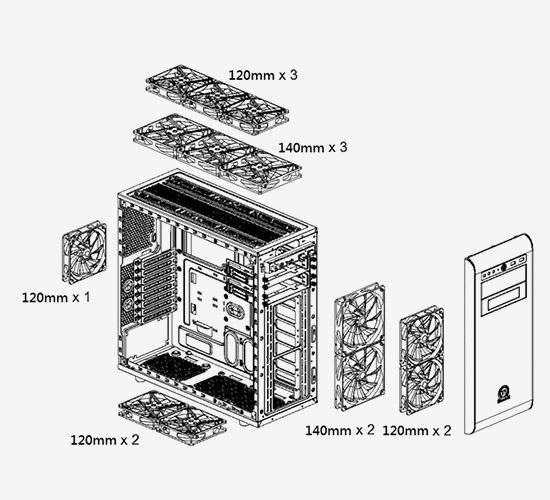

Core V31 Fan Supporting List
| Fan Compatibility List |
| |
120mm |
140mm |
| Front |
2 |
2 |
| Top |
3 |
3 |
| Rear |
1 |
- |
| Bottom |
1 |
- |
|
| Thermaltake Compatible Fan |
| PURE FAN Series |
* |
* |
| LUNA FAN Series |
* |
* |
| Odin FAN Series |
* |
- |
|
Core V Series Comparison Chart
Specifications:
| Model |
Core V31
|
| P/N |
CA-1C8-00M1WN-00
|
| Case Type |
Mid Tower
|
| Dimension (H x W x D) |
470 x 208 x 506 mm
(18.5 x 8.2 x 19.9 inch)
|
| Net Weight |
7.1 kg / 15.7 lb
|

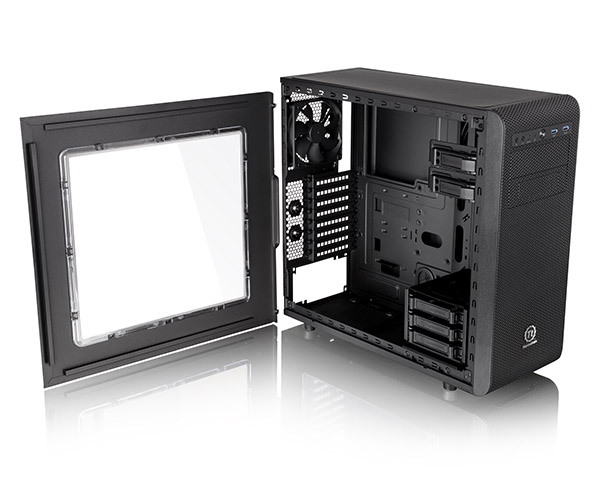

| Side Panel |
Transparent Window
|
| Color |
Exterior & Interior : Black
|
| Material |
SPCC
|
| Cooling System |
Front (intake) :
120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA)
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA)
|
| Drive Bays |
-Accessible :
2 x 5.25, 1 x 3.5 (Converted from one 5.25 drive bay)
-Hidden :
3 x 3.5" or 3 x 2.5"
2 x 2.5" (2 behind the M/B tray) |
| Expansion Slots |
8
|
| Motherboards |
6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX)
|
| I/O Port |
USB 3.0 x 2, HD Audio x 1
|
| PSU |
Standard PS2 PSU (optional)
|
| LCS Upgradable |
Supports 1/23/81/4 water tube
|
| Fan Support |
Front:
1 x 120mm or 2 x 120mm
1 x 140mm or 2 x 140mm
Top:
1 x 120mm or 2 x 120mm or 3 x 120mm
1 x 140mm or 2 x 140mm or 3 x 140mm
Rear:
1 x 120mm
Bottom:
1 x 120mm or 2 x 120mm
|
| Radiator Support |
Front:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm
Top:
1 x 120mm or 1 x 240mm or 1 x 360mm
Rear:
1 x 120mm
|
| Clearance |
CPU cooler height limitation:
155mm
VGA length limitation:
278mm(with HDD rack)
420mm(without HDD rack)
PSU length limitation:
180mm (With Bottom Fan)
220mm (Without Bottom Fan) |
