All stock codes associated to this product
CA1D700C1WN00, CA-1D7-00C1WN-00, II20584

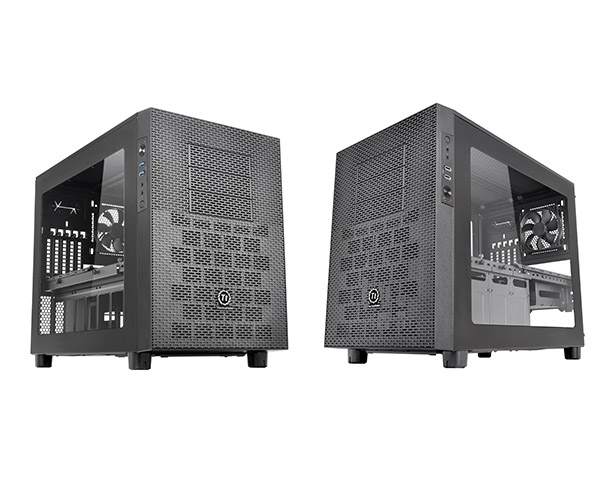

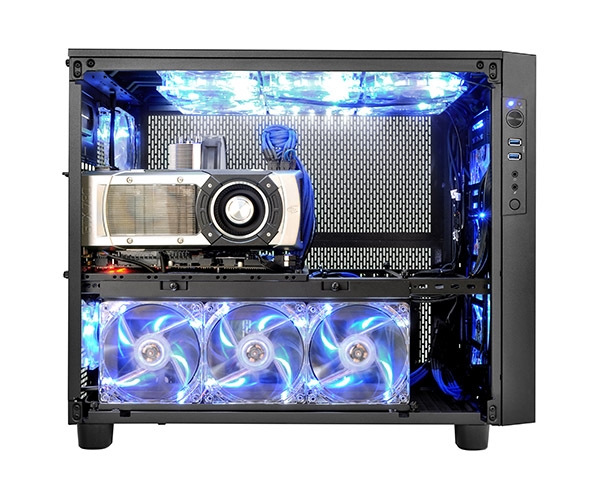

Core X2, the first mATX chassis of Core X Series presented by Thermaltake, is a cube case offering endless stackable capacity and expandability for enthusiasts to create massive liquid cooling systems, utilize as a file server as well as accommodate dual systems. Users can customize the chassis for the best viewing presentation with an interchangeable window and I/O panel design. The Core X2 delivers outstanding cooling performance with compatibility for extensive DIY/AIO LCS and overclocking components, further enhancing the reputation that the air-cooling units of this series has become renowned for. It is guaranteed to be an immensely powerful system!
Stackable for Enthusiasts

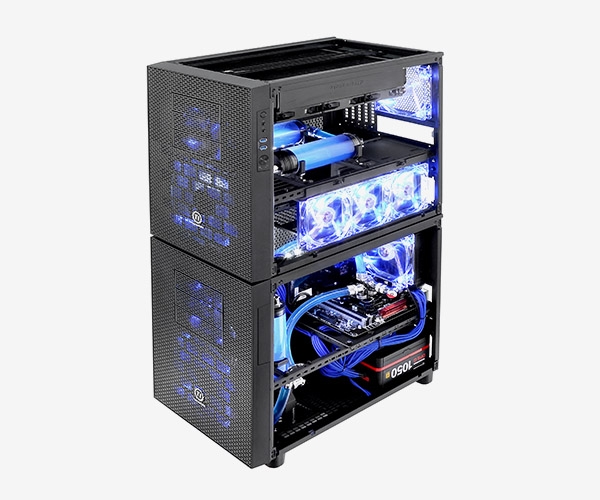

With its endless stacking design, the Core X2 is in a class above the rest. Virtually limitless utility is possible; it offers an expandable system allowing enthusiasts to incorporate externally-modular upgrades. Stacked together, the chassis opens up space to expand the liquid cooling system, the storage solutions, or even create dual systems, thereby enabling a dedicated top/bottom set-up for pure cooling. When stacked, the maximum radiator length supported is 600mm on the front side.
Remarkable Expansion
Designed for high-end gaming system compatibility, the Core X2s modular drive racks allow gamers to easily install up to six data storage devices, a dual expansion slot VGA of up to 480mm in length, and a tower CPU cooler as high as 230mm. Even with a high-wattage PSU stretching to 200mm in length, it still leaves plenty of space for cable management. Moreover, two 360mm radiators can be installed on top of the chassis, delivering superior cooling performance.
Great Ventilation

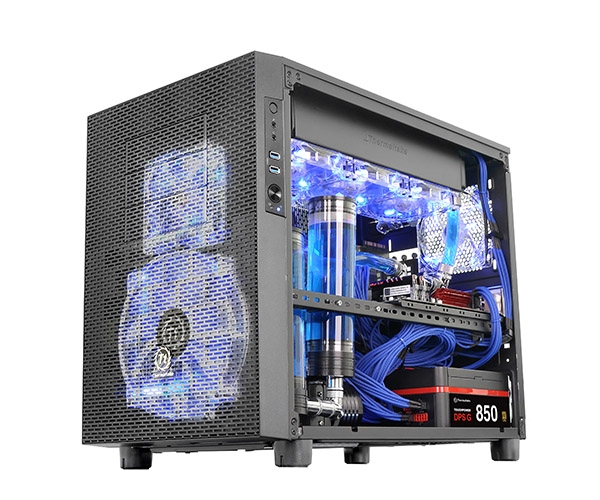

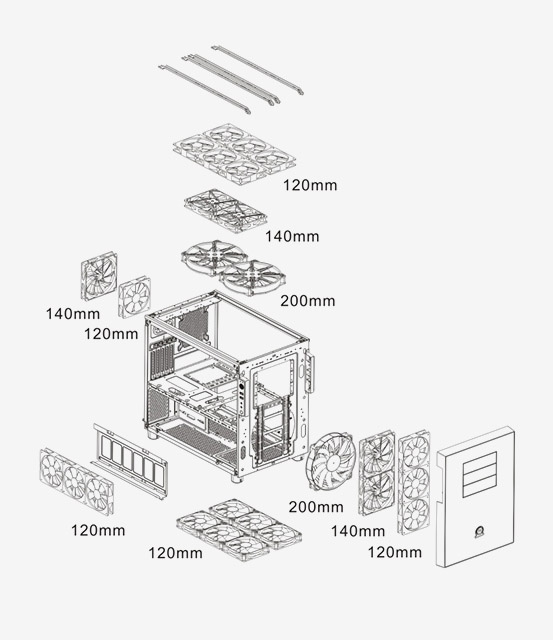

The Core X2s unparalleled cooling ability offers fan brackets with various mounting points to support any type of gaming system that can be accommodated , including DIY/AIO liquid-cooling systems and air-cooling units. Two 120mm fan are preinstalled on the front and rear to reassure and guarantee the flow of aeration. The fan brackets can either be adjusted for 120mm, 140mm, or 200mm fans on the top panel, while there is room for 120mm and 140mm fans on the side panel.
Chambers Concept
Optimized for space management, the Core X2 is divided into two main chambers: the upper chamber is made for cooling performance and better efficiency, while the lower one is made for PSU and drive bays. Thanks to the removable 2.5/3.5 drive device racks, there is plenty of flexibility to gain the maximum interior space when needed for advanced cooling performance or liquid systems build.
Fully Modular Design

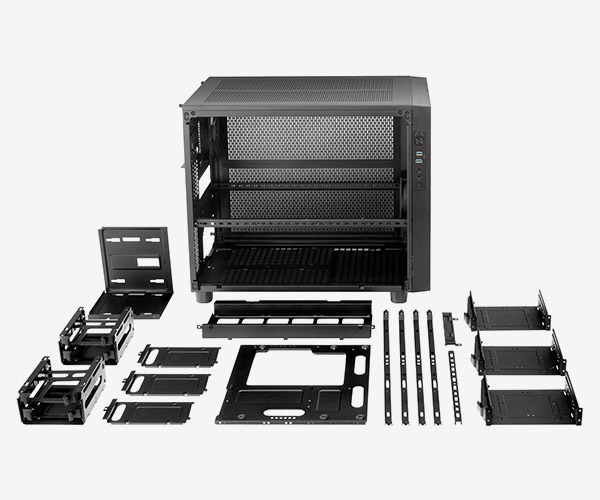

A 3 +7 drive bay concept design for storage devices makes setting up the best storage solution on the market super easy and flexible. In addition, a customizable 5.25 & 3.5 drive bay feature enables users to freely interchange the 3.5 hard-drive cages to suit their particular needs.
Interchangeable Window and I/O Panel

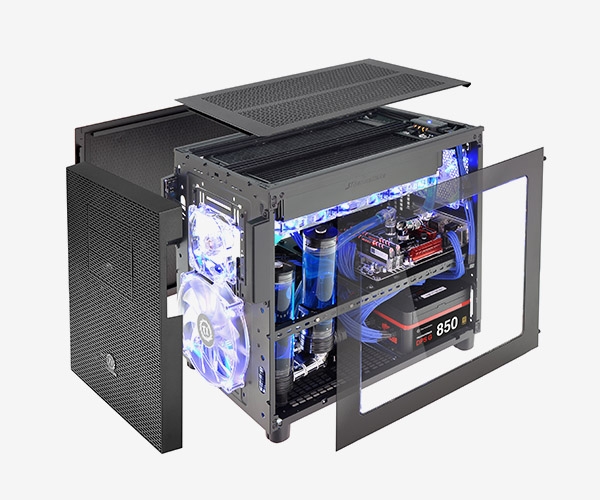

Users can customize the chassis for the best viewing presentation with an interchangeable window and I/O panel design.
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

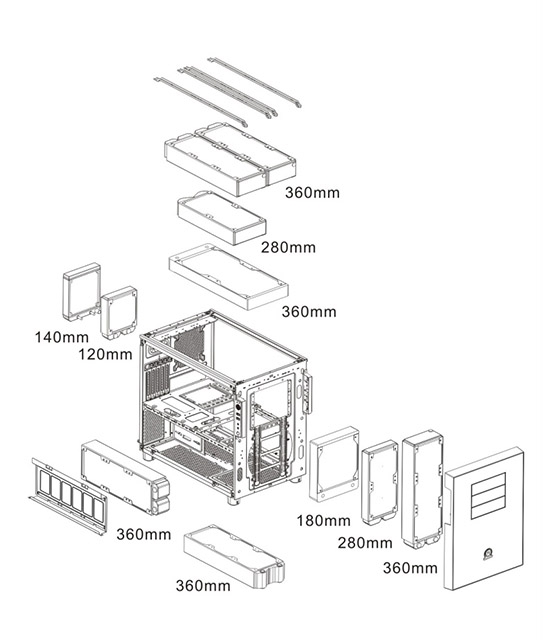

Core X2 Radiator Supporting List
| Radiator Compatibility List |
| |
120
mm |
140
mm |
180
mm |
240
mm |
280
mm |
360mm (120mm based) |
360mm (180mm based) |
420
mm |
480
mm |
540
mm |
| Front |
* |
* |
* |
* |
* |
* |
|
* |
* |
* |
| Top |
* |
* |
* |
* |
* |
* |
* |
|
|
|
| Rear |
* |
* |
|
|
|
|
|
|
|
|
| Bottom |
* |
|
|
* |
|
* |
|
|
|
|
| Side (L/R) |
* |
|
|
* |
|
* |
|
|
|
|
|
Highlighted part is only on stacking mode
| Water 3.0 Compatibility List |
| |
Ultimate |
Extreme |
Pro |
Performer |
| Front |
* |
* |
* |
* |
| Top |
* |
* |
* |
* |
| Rear |
|
* |
* |
* |
| Bottom |
* |
* |
* |
* |
| Side (L/R) |
* |
* |
* |
* |
Core X2 Fan Supporting List
| Fan Compatibility List |
| |
120mm |
140mm |
200mm |
| Front |
3 |
2 |
1 |
| Top |
6 |
2 |
2 |
| Rear |
1 |
1 |
- |
| Bottom |
6 |
- |
- |
| Side (L/R) |
3 |
- |
- |
|
Thermaltake Compatible Fan
|
| |
120mm |
140mm |
200mm |
| Pure Fan Series |
* |
* |
* |
| Luna Fan Series |
* |
* |
* |
| Odin Fan Series |
* |
|
|

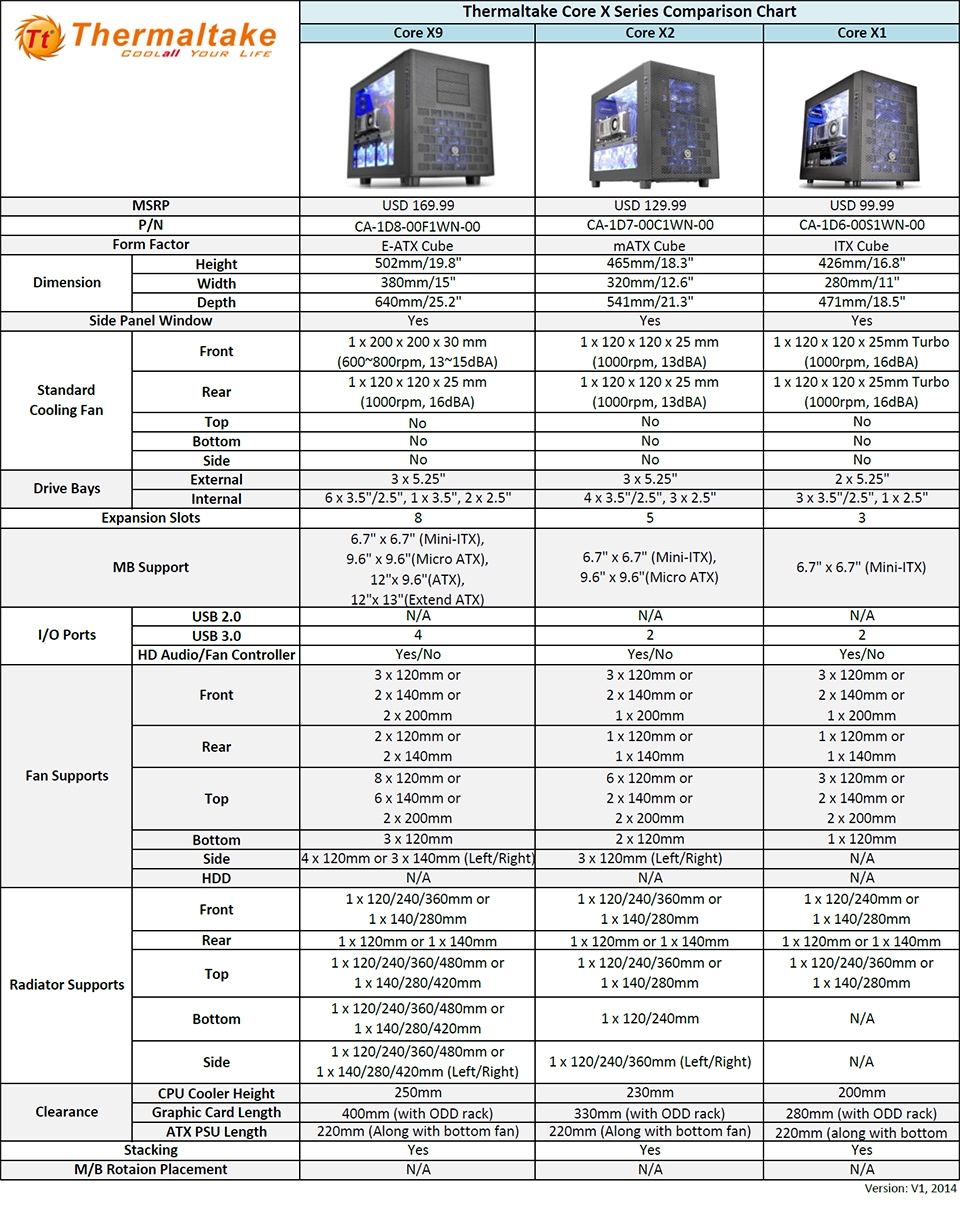

Core X Series Comparison Chart
Specifications:
| P/N |
CA-1D7-00C1WN-00
|
| Case Type |
M-ATX Cube Case
|
| Dimension |
465 x 320 x 541 mm
(18.3 x 12.6 x 21.3 inch)
|
| Net Weight |
11.6 kg / 25.6 lb
|
| Side Panel |
Transparent Window
|
| Color |
Exterior & Interior : Black
|
| Material |
SPCC |
| Cooling System |
Front (intake) :
120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA)
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA)
|
| Drive Bays |
-Accessible :
3 x 5.25
-Hidden :
4 x 3.5 or 2.5 (HDD Cage)
3 x 2.5 (HDD Tray) |
| Expansion Slots |
5 |
| Motherboards |
6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX)
|
| I/O Port |
USB 3.0 x 2, HD Audio x 1
|
| PSU |
Standard PS2 PSU (optional)
|
| LCS Upgradable |
Supports 1/23/81/4 water tube
|
| Fan Support |
Front:
3 x 120mm
2 x 140mm
1 x 200mm
Top:
6 x 120mm
2 x 140mm
2 x 200mm
Rear:
1 x 120mm or 1 x 140mm
Bottom:
2 x 120mm
Left / Right Side:
3 x 120mm
|
| Radiator Support |
Front:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm
Top:
2 x 120mm or 2 x 240mm or 2 x 360mm
1 x 140mm or 1 x 280mm
Rear:
1 x 120mm or or 1 x 140mm
Bottom:
1 x 120mm or 1 x 240mm
Left / Right Side:
1 x 120mm or 1 x 240mm or 1 x 360mm
|
| Clearance |
CPU cooler height limitation:
230mm
VGA length limitation:
330mm(with ODD Cage)
480mm(without ODD Cage)
PSU length limitation:
220mm (With Bottom Fan) |
