500Mbps Powerline Kit with AC Pass-through - NP511
Overview

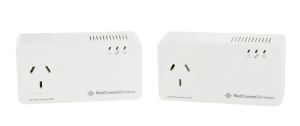

500Mbps Powerline Kit with AC Pass-through
Transform your existing electrical wiring into a high-performance online network capable of supporting todays most bandwidth-intensive activities. With the 500Mbps Powerline Kit with AC Pass-through, all you need is an available power point to create a high speed Internet connection in any room of the house. Enjoy high-definition streaming, multimedia and online gaming in any area of the home.
Lightning fast Powerline
A 500Mbps data signal is transmitted between the adapters over Powerline to create an instant access point for bandwidth-intensive devices such as HD-TVs, gaming consoles and Blu-ray players. Simply connect your devices directly to the Ethernet ports for a powerful broadband connection in any room.
Connect with Ethernet
Connect any Ethernet enabled device to your Powerline Adapters to give it instant access to your online network. Perfect for devices such as gaming consoles, TVs and other items that are generally fixed in one location.
Noise filtering
The AC pass-through socket also improves network performance over Powerlines by reducing noise interference from other electrical devices to give you an optimal online experience.
Simply plug and play
The user-friendly 500Mbps Powerline Adapters work straight out of the box so you can focus on enjoying your online active ties. With no setup required, simply connect the adapters to power and you're connected.
Technical Specifications
PACKAGE INCLUDES
- 2 x Powerline Adapters with AC Pass Through
- 2 x Ethernet Cables (RJ-45)
- Printed Quick Start Guide
- Warranty Card
MINIMUM SYSTEM REQUIREMENTS
- Modem Router
- Active Internet Connection
- Available Power Sockets
- Computer or network device with a free Ethernet port
MAIN CHIPSET
- Powerline: Atheros AR7420 chipset
STANDARDS
- Powerline: IEEE 1901/HomePlug AV
- Ethernet: IEEE 802.3 10/100 Mbps Auto MDI/MDIX
- Compliant to EuP
MODULATION SUPPORT
- Powerline: OFDM 4096/1024/256/64/16/8 QAM, QPSK, BPSK and ROBO
DATA TRANSFER RATE
- Up to 500Mbps over Powerline
RANGE
- Up to 300m over Powerline
SECURITY
- 128-bit AES Encryption (enabled with Simple Connect button)
EXTERNAL CONNECTORS
- 1 x 10/100 Ethernet LAN port
- 1 x Reset button
- 1 x Security push button
- 1 x Filtered AC pass-through socket
LED INDICATORS
- 1 x Bicolour Power LED
- 1 x Bicolour Powerline Link/Activity Status LED
- 1 x Bicolour Ethernet Link/Activity Status LED
POWERLINE FILTERING
- Filtering at frequency band 2MHz to 68MHz
- Filter characteristics: -25dB to -45dB
POWER SUPPLY
ENVIRONMENTAL
- Operating: 00C to 400C
- Non-Operating: -200C to 700C
- Operating: 10% to 90% Relative Humidity (Non-Condensing)
- Non-Operating: 5% to 90% Relative Humidity (Non-Condensing)
MEASUREMENTS
- Dimensions 56 mm x 112 mm x 47 mm
- Weight 155g
CERTIFICATIONS
Specifications are subject to change without notice
