All stock codes associated to this product
SSTFTZ01B, SST-FTZ01B, 4710007221907
Fortress Series
Premium Slim Form Factor Case with Superior thermodynmaics and construction
FTZ01
INTRODUCTION
In early 2014, a revolutionary slim form factor case called the RVZ01 was created by SilverStone’s RAVEN team that exceeded and redefined what a slim HTPC or console-styled PC case could do. As a follow up, SilverStone created another new line called the Fortress Z to cater to enthusiasts with affinity for all metal design in slim form factor cases, thus the FTZ01 was born. Similar to RVZ01, the FTZ01 utilizes a PCI-E riser and custom designed fans to accommodate the biggest consumer graphics card on the market with superb air cooling performance and the ability to support liquid cooling*. Designed for use in either vertical or horizontal orientation, it can be placed comfortably in any space-constrained environment that requires a powerful PC. For those looking to build a premium, all-metal slim form factor PC, there is no better choice than the FTZ01.
SPECIAL FEATURES
- Classic exterior built from aluminum unibody frame
- Support graphics card up to 13 inches
- Mini-ITX motherboard & SFX PSU compatible
- Maximum performance in slim form factor with support for liquid cooling*
- Positive air pressure design for excellent cooling/quietness and dust-prevention
- Fits in nearly any environment with horizontal or vertical orientation
Special Features
- Classic exterior built from aluminum unibody frame
- Adjustable graphic card holder
- Support graphics card up to 13 inches
- Slim slot-loading optical drive slot
- Dual 2.5 SSD/HDD slots
- Mounting holes for one 2.5 SSD/HDD or a Laing DDC pump
- High-performance SilverStone customized riser card
- Front USB 3.0 and I/O ports
- Support Mini-ITX & Mini-DTX motherboard
- One 3.5 HDD can be mounted on into the PSU bracket
Specifications
|
Model No.
|
SST-FTZ01B (black) |
| SST-FTZ01S (silver) |
| -- |
| -- |
|
Material
|
Aluminum unibody frame, steel chassis |
|
Motherboard
|
Mini-DTX, Mini-ITX |
|
Multimedia
|
-- |
|
Drive Bay
|
External |
Slim slot-loading optical x 1 |
| -- |
| Internal |
3.5 x 1, 2.5 x 3 |
|
Cooling System
|
Front |
-- |
| Rear |
-- |
| Side |
-- |
| Top |
1 x 120mm fan, 1500rpm 18dBA |
| Bottom |
1 x 120mm fan, 1500rpm 18dBA
1 x 120mm fan slot |
| Internal |
-- |
|
Expansion Slot
|
2 |
|
Front I/O Port
|
USB 3.0 x 2
audio x 1
MIC x 1 |
|
Power Supply
|
SFX, SFX-L |
|
Operating system support
|
-- |
|
Expansion Card
|
Support graphics card up to 13, width restriction 5.88 |
|
Limitation of CPU cooler
|
83mm |
|
Limitation of PSU
|
-- |
|
Net Weight
|
4.6kg |
|
Dimension
|

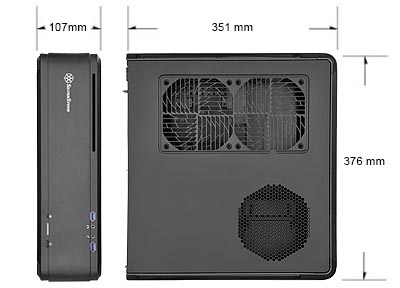

376mm (W) x 107mm (H) x 351mm (D), 14 liters |
|
Extra
|
Support Kensington locks |
|
Support VESA Mount
|
-- |
