SmartOffice PS4080U
The Plustek SmartOffice PS4080U is a departmental-class document scanner capable of simplex and duplex scanning. With a built-in auto-document feeder, it is extremely efficient in performing duplex scans of a stack of double-sided documents. In simplex scan mode, the PS4080U can scan up to 40 pages per minute, and in duplex mode, 80 images per minute. The auto-document feeder, meanwhile, has a cavernous 100-sheet capacity. All these features make the Plustek PS4080U scanner an essential part of every digital office.
Features
Robust Paper Handing
Combining fast document feeding with the advantage of robust paper handling, the SmartOffice PS4080U is an ideal choice for workgroups who have a demanding workload and limited budget. Plastic and other rigid cards such as ID cards, Drivers Licenses, Membership Cards and Insurance Cards as well as long documents up to 200” are scanned without additional adjustments or additional set up. The advanced image processing and a high daily duty cycle all add up to the perfect departmental scanning solution for document management, content management and forms processing applications. The SmartOffice PS4080U also features auto wake up that enables users simply to place paper in the scanner to wake the scanner up from sleep / stand-by mode.
Intelligent Misfeed Function

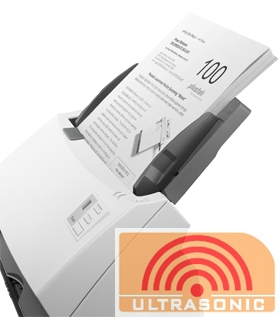

With the built-in ultrasonic multi-feed detection capability, the SmartOffice PS4080U scanner prevents multi-feeds by checking the thickness of documents and detecting overlapping pages. When a multi-feed is detected, the scan halts and a warning message is displayed. This feature is turned on by default so that it automatically improves the scanning experience and results. However, when scanning papers with labels, sticky notes, taped receipts or plastic cards, the ultrasonic function can be turned off to prevent false detection.
Exceptional Productivity
Operation of the PS4080U is simple with Plustek’s exclusive software application DocAction. Users need only to properly place the document on the scanner and press the “Scan” button. What’s best is that the scanned image can then be sent directly to your desired destination application.
Environmentally Responsible and Energy-Saving
The SmartOffice PS4080U is also eco-friendly. In standby mode, power consumption is less than 0.5 watts. In operation, power consumption is less than 24 watts. In addition, it meets the ErP and Energy Star standard certification, WHEE and RoHS standards.
Features
The SmartOffice PS4080U has following features:
Auto Threshold
Automatically thresholds the current image into a binary black and white image.
Auto Rotate
Automatically rotates document based on the contents of the document.
Auto Crop & Deskew
Automatically straightens and crops image to the documents actual size.
Auto Mode
Automatically detects document color and scans document in color, grayscale or black & white mode.
Multi-Image Output
Scans and saves documents in 2 or 3 modes at same time.
Color Dropout
Removes red, green or blue color when scanning forms.
Blank Page Removal
Automatically removes blank pages without manual editing.
Specifications
Image Sensor: CCD Sensor x 2
Light Source: LED
Optical Resolution: 600 dpi
Hardware Resolution: 600 x 600 dpi
ADF Capacity:
1. 100 sheets (A4/ Letter, 70 g/? or 18 Lbs)
2. 30 sheets (Business Cards)
3. Plastic Card, Max. thickness under 1.2 mm.
Note: Maximum ADF capacity varies, depending upon paper weight.
Scanning Speed ( ADF )
40 ppm/80 ipm (grayscale mode, 300 dpi, A4 Portrait)
40 ppm/80 ipm (B&W mode, 300 dpi, A4 Portrait)
40 ppm/80 ipm (color mode, 200 dpi, A4 Portrait)
30 ppm/60 ipm (color mode, 300 dpi, A4 Portrait)
Note: Results may vary depending upon your scanning application, computer processor and system memory.
Scanning Area (W x L):
Max: 216 x 5080 mm (8.5” x 200”)
Min: 13.2 x 13.2 mm (0.52” x 0.52”)
Acceptable Paper Sizes (W x L):
Max: 244 x 5080 mm (9.6” x 200”)
Min: 50.8 x 50.8 mm (2” x 2”)
Acceptable Paper Weight (Thickness): 40 to 220 g/? (10 to 58 Lbs)
Multi-feed Detection: With ultrasonic technology
Daily Duty Scan ( Sheets ): 4,000
Roller Lifetime (Scans): 300,000
Pad Lifetime (Scans): 50,000
Action Button:
4 Buttons: Up, Down, Scan, Standby
9 function keys are all customizable.
Power Supply: 24 Vdc/ 1.25 A
Interface: USB 2.0
Net Weight: 2.7 Kgs (5.95 Lbs)
Dimensions (W x D x H): 318.7 x 230.7 x 228.3 mm (12.55" x 9.08" x 8.99")
Protocol: TWAIN Compliant
OS: Windows XP / Vista / 7 / 8
Hardware Requirements
Pentium IV 2.0 GHz processor (Pentium IV 3.0 GHz processor recommended)
CD-ROM Driver
One available USB Port (USB 2.0 recommended)
1GB RAM or higher recommended
800 MB free HDD space (1 GB or larger recommended)

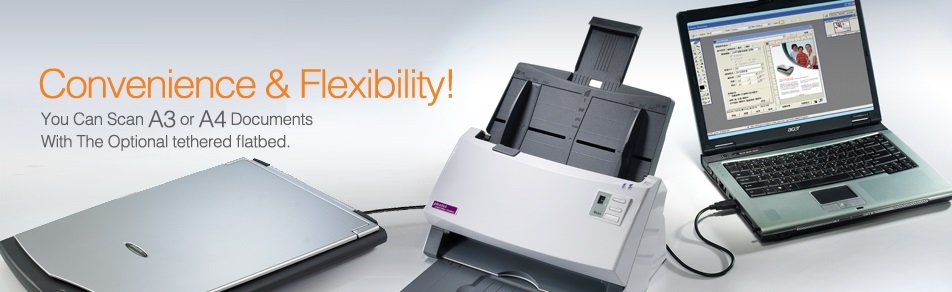

Option: OpticSlim 1180
