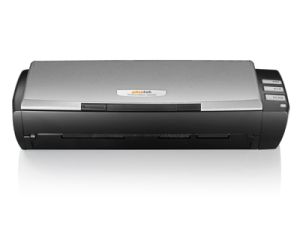

MobileOffice AD460
The Plustek AD460 is an easy to use solution to digitize the important paper documents. Three single touch buttons to automate frequent scanning jobs, the ability to scan paper documents and rigid cards, and the AD460’s small footprint make it an ideal solution for small offices, healthcare applications, or home use.
Features
Scan Documents, Cards and More
It scans long document up to 914mm (36), and embossed plastic card up to 1.24 mm, and now you can turn all of your documents including bank statements, legal documents, insurance papers, medical records, embossed plastic cards, business cards, and any size document into a digital format.
Easy to Use
Place your documents in the Automatic Document Feeder and with the touch of button, documents can be saved in many popular formats including Searchable PDF, Microsoft Office, JPG and TIF. Documents are automatically sent to many different destinations including: any folder on your network, email, or even a printer.
Energy-saving and Instant Warmup
The AD460 is environmentally responsible and easy to use at the same time thanks to its ENERY STAR certification and low power LED illumination technology.
Features
The MobileOffice AD460 has following features:
Auto Threshold
Automatically thresholds the current image into a binary black and white image.
Auto Rotate
Automatically rotates document based on the contents of the document.
Auto Crop & Deskew
Automatically straightens and crops image to the documents actual size.
Color Dropout
Removes red, green or blue color when scanning forms.
Blank Page Removal
Automatically removes blank pages without manual editing.
Specifications
Image Sensor: CCD x 2
Light Source: LED
Optical Resolution: 600 dpi
Hardware Resolution: 600 x 600 dpi
Scan Modes
Color: 48-bit Input; 24-bit Output
Grayscale: 16-bit Input; 8-bit Output
B/W: 1-bit
ADF Capacity
20 Sheets (A4/ Letter, 70 g/? or 18 Lbs)
6 Sheets (Business Card)
Scanning Speed
20 ppm / 40 ipm (Grayscale, 200 dpi, A4)
20 ppm / 40 ipm (B&W, 200 dpi, A4)
15 ppm / 30 ipm (Color, 200 dpi, A4)
Scanning Area (W x L)
ADF:
Maximum: 216 x 914.4 mm (8.5" x 36")
Minimum: 12.7 x 12.7 mm (0.5" x 0.5")
Cardslot:
Maximum: 90.9 x 105 mm (3.58" x 4.13")
Minimum: 12.7 x 12.7 mm (0.5" x 0.5")
Acceptable Paper Sizes (W x L)
ADF:
Maximum: 216 x 914.4 mm (8.5" x 36")
Minimum: 50.8 x 50.8 mm (2" x 2")
Cardslot:
Maximum: 90.9 x 105 mm (3.58" x 4.13")
Minimum: 50.8 x 50.8 mm (2" x 2")
Acceptable Paper Weight (Thickness)
Paper: 50 g/? to 120 g/?
Plastic card: Non-Embossed up to 0.76 mm & Embossed up to 1.24 mm (ISO 7810)
Daily Duty Scan ( Sheets ): 1500
Roller Lifetime (Scans): 100000
Pad Lifetime (Scans): 20000
Action Button: PDF, BCR, Scan
Power Supply: AC adapter: 24 Vdc/ 0.75 A
Interface: USB 2.0
Net Weight: 1.3 Kgs (2.87 Lbs)
Dimensions (W x D x H): 288.5 x 98 x 75 mm (11.36" x 3.8" x 2.96")
Protocol: TWAIN compliant
OS: Window 2000 / XP / Vista / 7 / 8
Hardware Requirements
Pentium® IV 2.0 GHz processor or higher
CD-ROM/ DVD-ROM drive
One available USB 2.0 port
512 MB RAM (1GB or higher recommended)
800 MB Free HDD space (1GB or larger recommended)
