One quick tap of the Safe Boot button powers off your system and launches into Safe Mode, where you can tweak your retained previous settings.

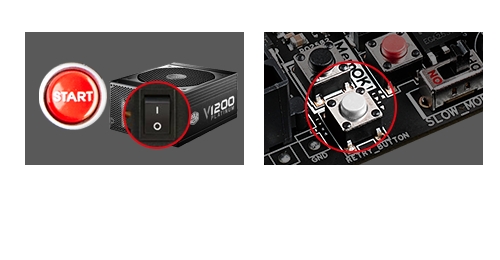

ReTry Button
If your system hangs during the power-on self-test (POST) boot process, just hit the motherboard's hardware-level ReTry button to force a reboot right away.
Unwavering Power

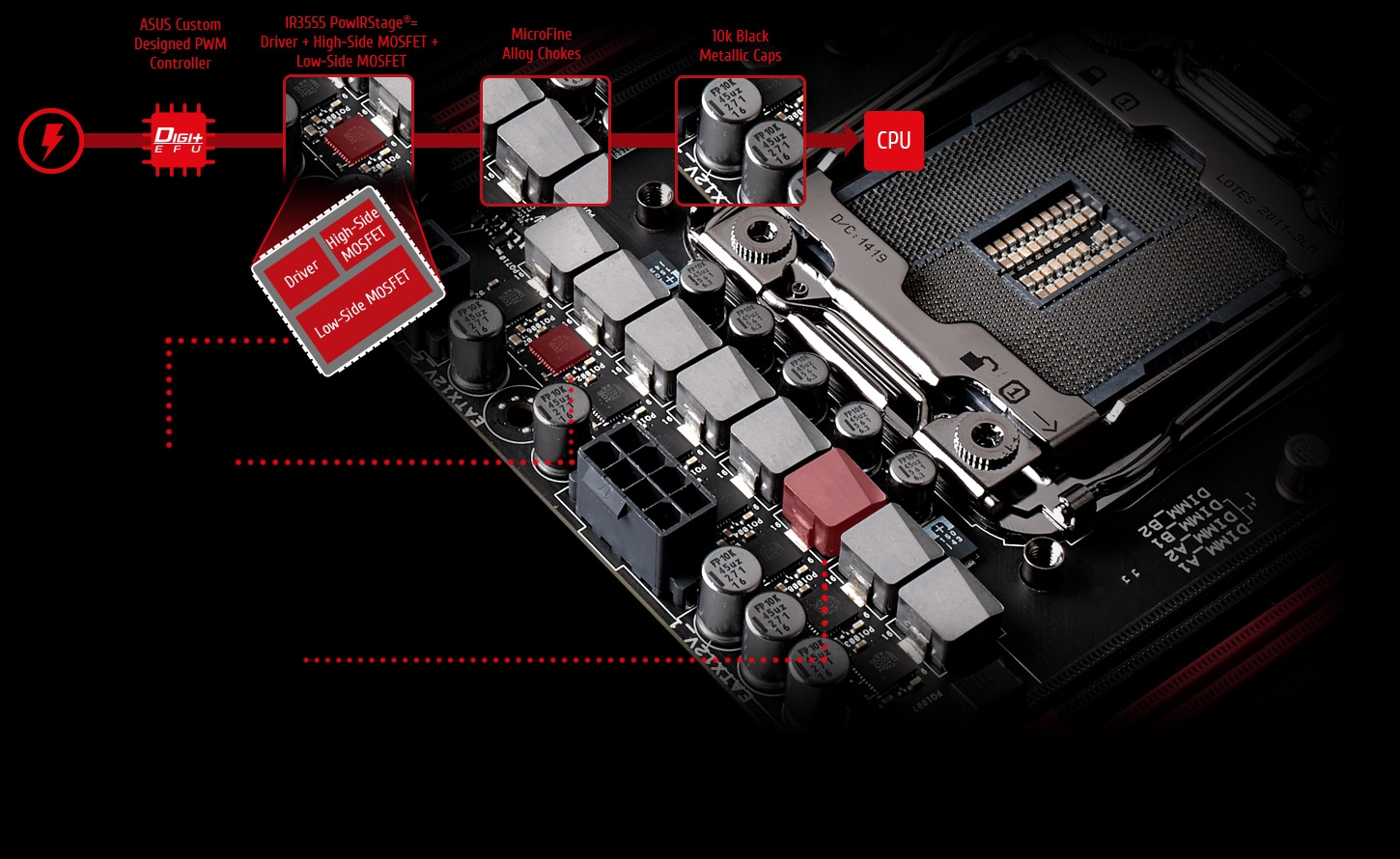

Carefully selected VRM components for this extreme high-end platform
Extreme Engine Digi+ IV
Pump up your power
An extreme platform demands extreme control over the purest power, and nothing delivers more control or purer power than Extreme Engine Digi+ IV Rampage V Extreme's exclusive voltage-regulator module (VRM).
MicroFine alloy chokes lower overall core loss for lower temperatures, while the VRM has been upgraded with the brand-new PowIRstage IR3555. This chip integrates the driver, high-side and low-side MOSFETs and features the latest RDS On current-sensing technology.
Extreme Engine Digi+ IV's high-frequency pulse-width modulation (PWM) implementation scales to 1MHz allowing the DRAM VRM to achieve a 40% increase in stability!
PowIRStage
An all-in-one driver, high- and low-side MOSFETs with built-in Resistance drain-to-source (RDSOn)-sensing technology
Higher efficiency
Lower power loss
Cooler
Longer lifespan

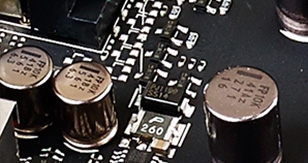

MicroFine alloy chokes
Alloy chokes constructed with 3X-smaller granules and more evenly distributed air gaps that increase the over permeability of the choke
More stable at high currents
31% Cooler than large granules
Higher efficiency
Stay Cool
Carefully selected VRM components for this extreme high-end platform
DirectCU thermal design
Copper-cooled to the core

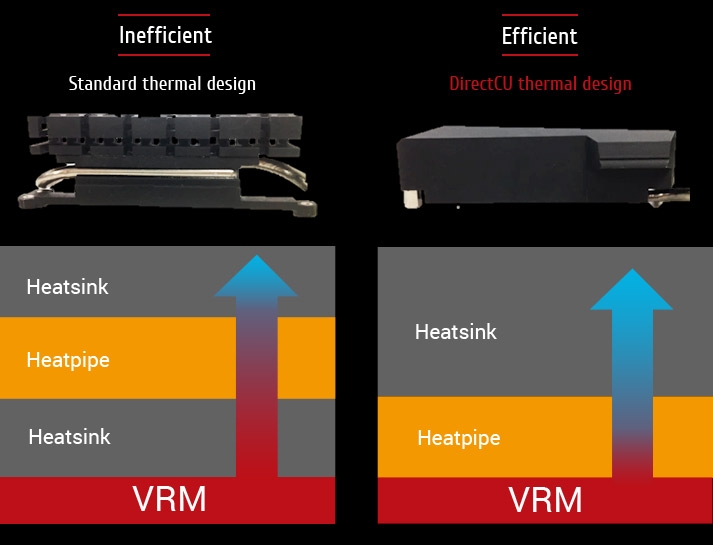

Exclusive DirectCU cooling technology puts better conductive copper heat-pipes in direct contact with Rampage V Extreme's Extreme Engine Digi+ IV VRM zone to provide incomparable heat dissipation. Other designs merely prevent overheating Rampage V Extreme with DirectCU goes up to 7 cooler.

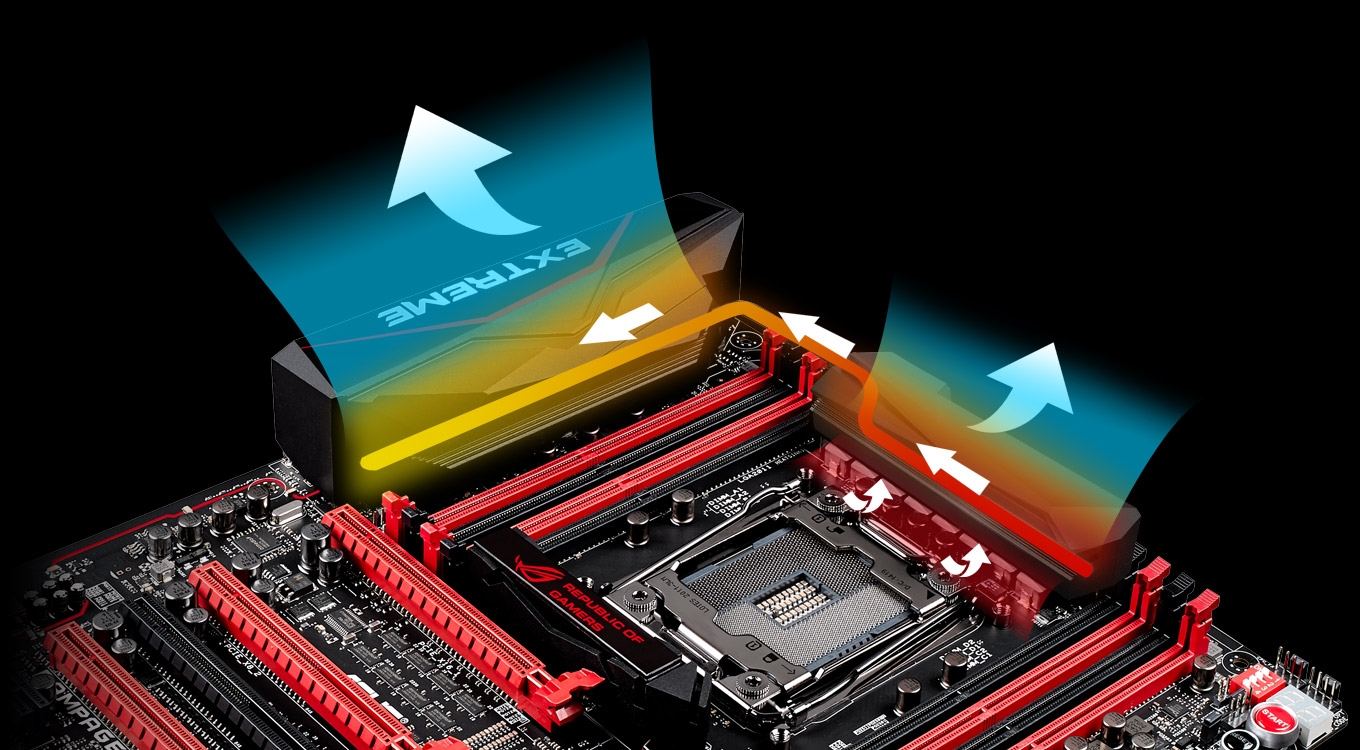

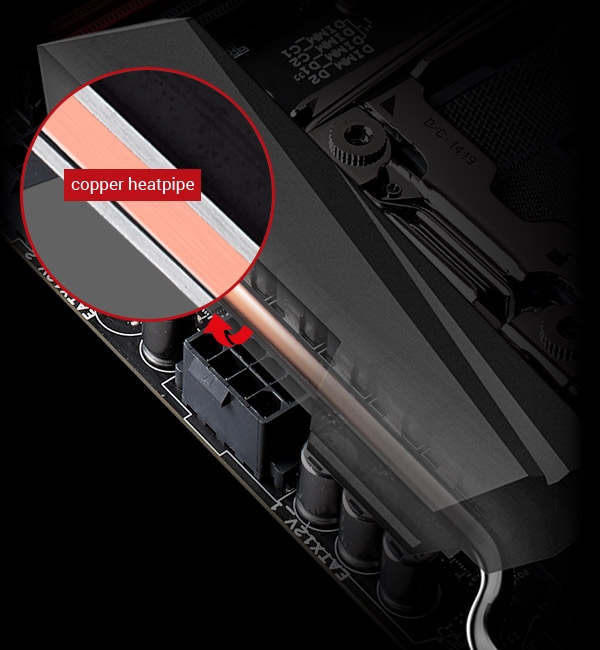

The heat coming from the chokes and VRM zone is absorbed by the copper heatpipe and then dissipated through two large aluminum heatsinks for ultimate cooling.
X-Socket II
Primed for your existing pot

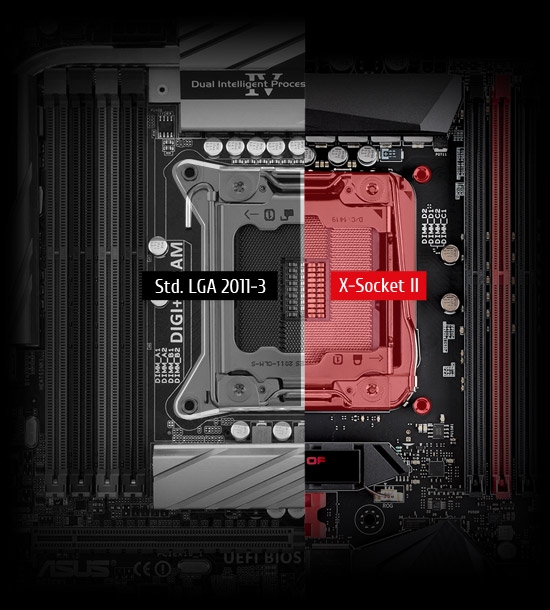

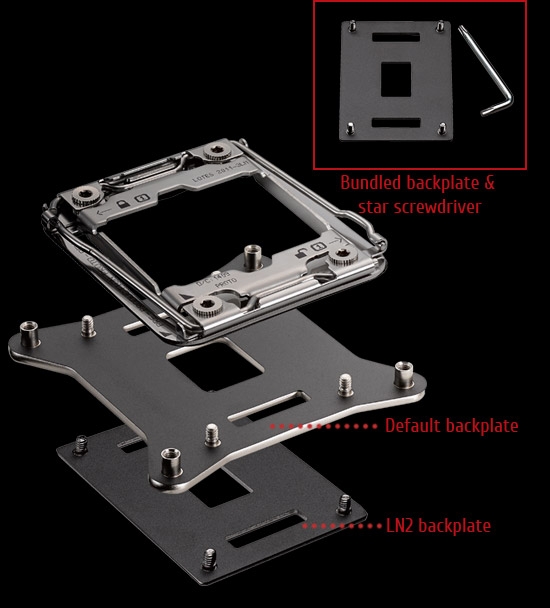

Rampage V Extreme's three-piece X-Socket II makes easy work of mounting your existing liquid-nitrogen (LN2) or dry-ice evaporator pots to the latest LGA2011-3 socket. Use the supplied star screwdriver to replace the LGA2011-3 backplate with X-Socket II and you're ready to super-cool with your existing evaporator!

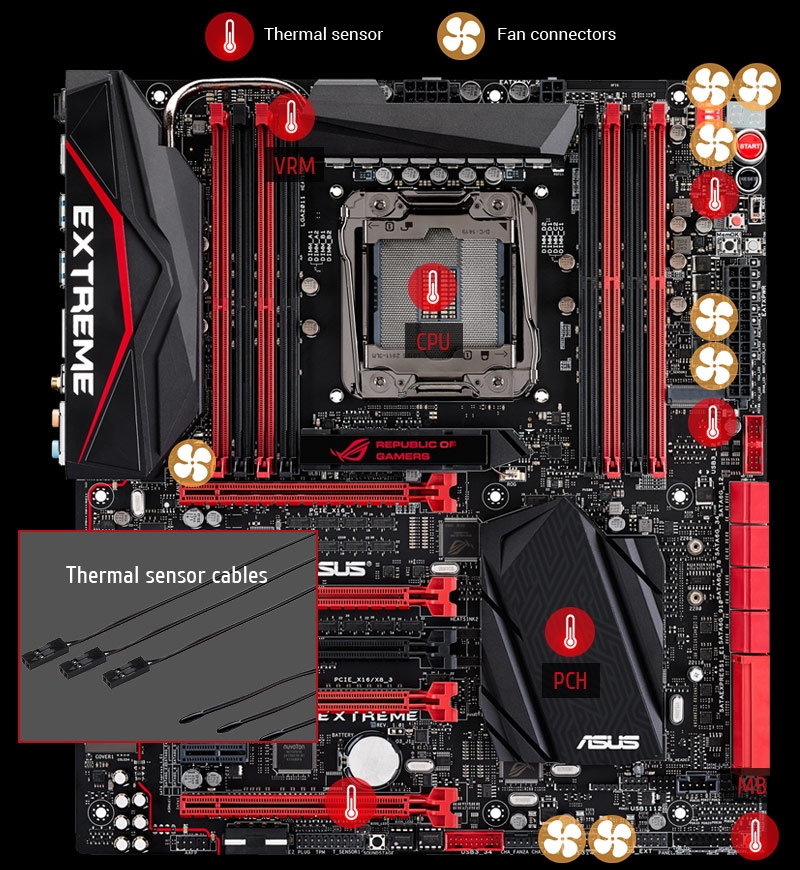

8 x 4/3-pin combo fan connectors + 7 thermal sensors + Fan Xpert 3
Advanced fan controls for ultimate cooling and quietness

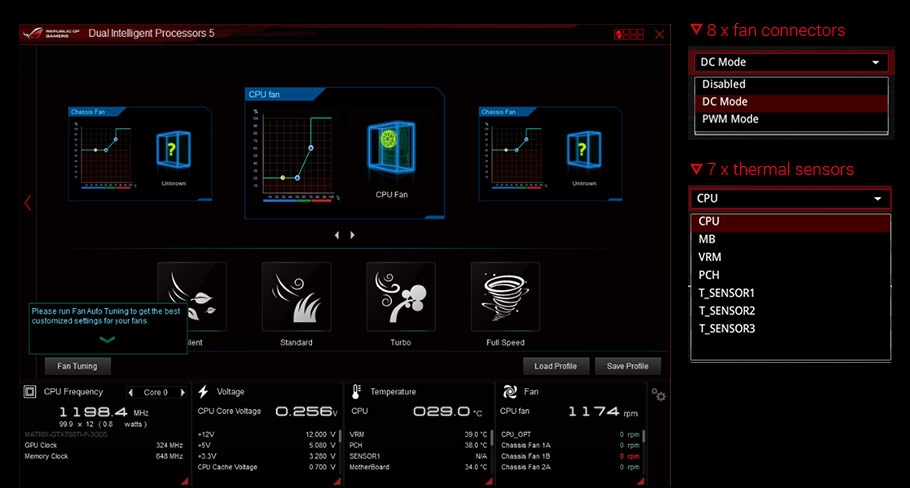

Rampage V Extreme has 8 x 4/3-pin (PWM/DC) combo fan connectors, four intelligent onboard sensors plus three additional 2-pin headers and a selection of three thermal cables to help you monitor the temperatures of up to seven motherboard or key components in real time so you're able to adjust CPU and case coolers automatically or manually for the best dissipation.
Exclusive Fan Xpert 3 delivers complete information that allows you to take advanced control over each fan. Create your perfect balance between quietness, cooling and performance.
Game With More
Best-in-class audio, networking technology with free keyboard upgrade and system performance up utility
SupremeFX 2014
Precision-engineered audio that's as great as a dedicated sound card
ROG knows the importance of flawless audio pristine effects and full-range soundtracks make the game. That's why we invest substantial engineering resources to perfect onboard audio. The result is SupremeFX. Cutting-edge isolation technologies minimize electromagnetic interference (EMI) and exceptionally premium components deliver best-in-class audio that's as great as a dedicated soundcard. But we never rest on our laurels, which is why SupremeFX 2014 has been refined even further for Rampage V Extreme. That means even finer components and superbly clever software innovations for gaming and multimedia experiences beyond compare!
8-channel gold-plated output
Minimize EMI (electromagnetic interference)
8-channel gold-plated output
Minimize EMI (electromagnetic interference)
Sonic SenseAmp – Amp up your headset!
Sonic SenseAmp is a ROG invention that detects headphone impedance (below 65 / 65-150 / 150 or higher ohms) and adjusts the built-in amp automatically, for pitch-perfect listening right away!
ELNA® capacitors – Exceptionally warm and natural sound
Premium Japanese-made ELNA® audio capacitors
Sonic SoundStage – Hardware-level audio-profiles switch
Apply the best settings for your favorite game genres in real time on any operating system, via the onboard Sonic SoundStage button. The debug LED displays the mode — FPS (01), racing (02), fighting (03) or sports (04).*
Sonic SenseAmp and Sonic SoundStage supports only analog-audio front-panel (AAFP) connections
Sonic Studio - Brilliant one-click virtual sound!
Sonic Studio is a brand-new audio-tuning suite that provides an aural treat. Use the one-click Virtual Surround function to simulate 7.1 channel audio, through a stereo (2.0-channel) headset. It offers five superb audio controls, including Reverb, Bass Boost, Equalizer, Voice Clarity and Smart EQ ensuring that everything you hear sounds just amazing!
Virtual Surround
Smart EQ
Bass Boost
Reverb
Equalizer
Perfect Voice Simple and effective noise reduction
Perfect Voice removes ambient noise with one click, for crystal-clear in-game chat
Normalizes the microphone volumes for stable recording consistency
Minimizes ambient noise during sentences (i.e. pauses and periods of silence)
Spectral-subtraction algorithm analyzes and calculates ambient noise
Sonic Radar II
Scan and detect to dominate!

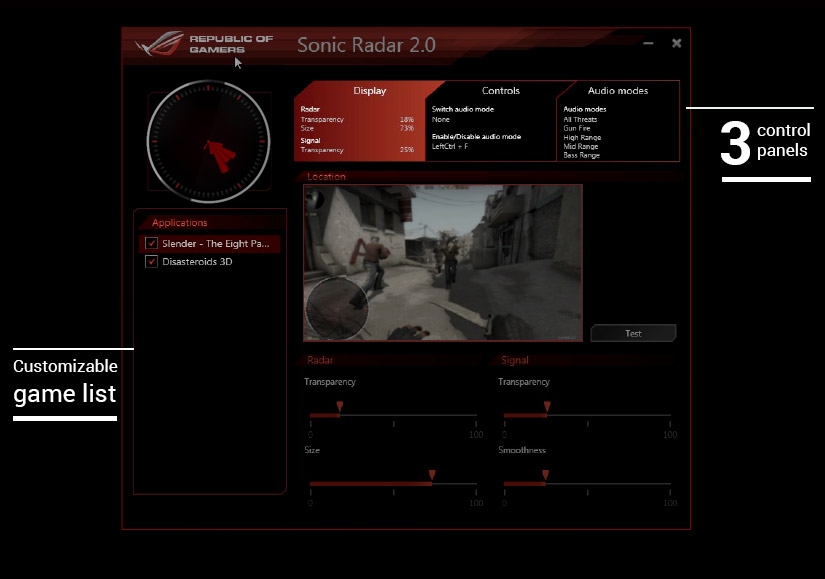

Designed for first-person shooters (FPS), Sonic Radar II displays a stealthy overlay that shows what opponents and teammates are up to. See the precise direction and origin of in-game sounds such as gunshots, footsteps and call-outs, and practice your enemy-pinpointing skills and exclusive Audio Enhancement further improves in-game sound for superb hearing awareness. The all-new Sonic Radar II includes a redesigned control panel with customizable game list!
Intel Ethernet
More throughput, less CPU usage and great gaming experiences!

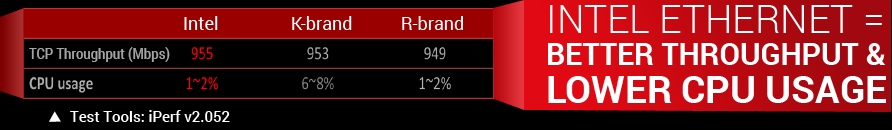

Rampage V Extreme features the very latest Intel Ethernet for faster, smoother gaming always. Intel's LAN has the serious double advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput. This significantly reduces the processor's workload, so there's more power for your game and your gameplay!

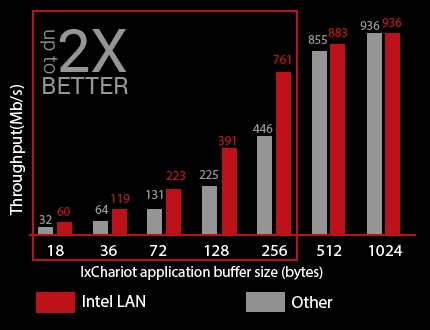

ASUS engineers used IxChariot, an independent network-assessment test tool, to determine just how much faster Intel Gigabit Ethernet deals with the smaller (sub-256 bytes) UDP data packets that are vital for responsive gaming. The results are in and with Rampage V Extreme your game-data packets flow up to two times (2X) faster than competing gaming-LAN technologies!
LANGuard RJ45 Reinvented!
Pumped-up throughput. Best surge protection.
ROG has reinvented the LAN port. Advanced signal-coupling technology and premium surface-mounted capacitors improve throughput, while surge-protected and electrostatically-guarded components (ESD Guards) protect your motherboard from lightning strikes and static electricity!
GameFirst III
Network-optimization software for no-delay gameplay!

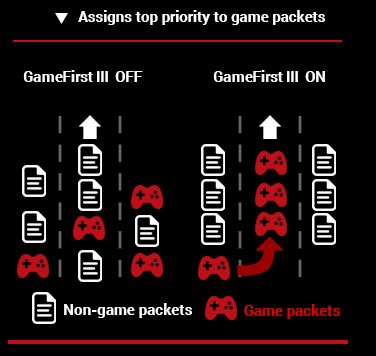

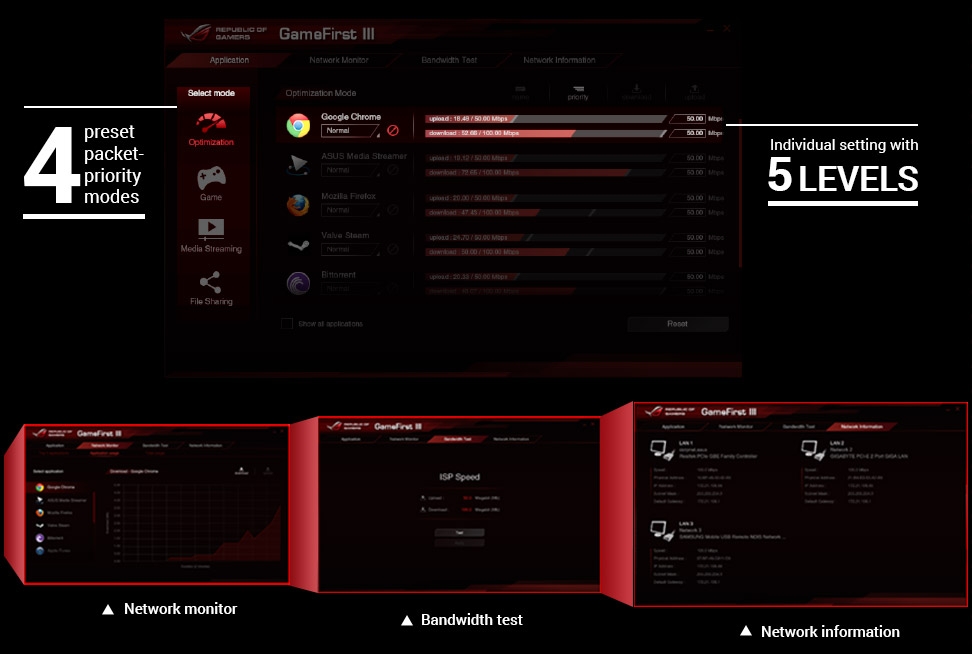

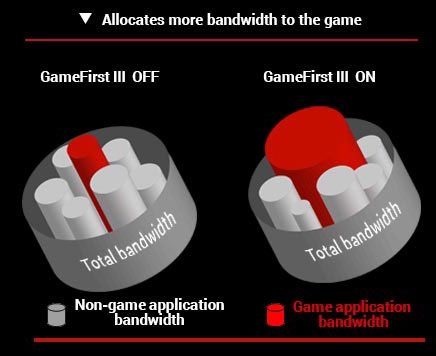

Exclusive GameFirst III has been upgraded with even more gamer-helping features and an interface that's even more intuitive! GameFirst III helps you to assign top priority to game packets and allocate more bandwidth to the game, ensuring the best online gaming experience.
Choose from a preset mode to suit what you're doing Optimization, Game, Media Streaming or File Sharing. You can manage bandwidth down to the level of individual applications, with five priority levels and even the ability to block specific traffic. GameFirst III even has a built-in Network Monitor tool, so you can supervise your network traffic and test your connection speed to check that you're getting the bandwidth you pay for!
KeyBot
Your keyboard, instantly upgraded!

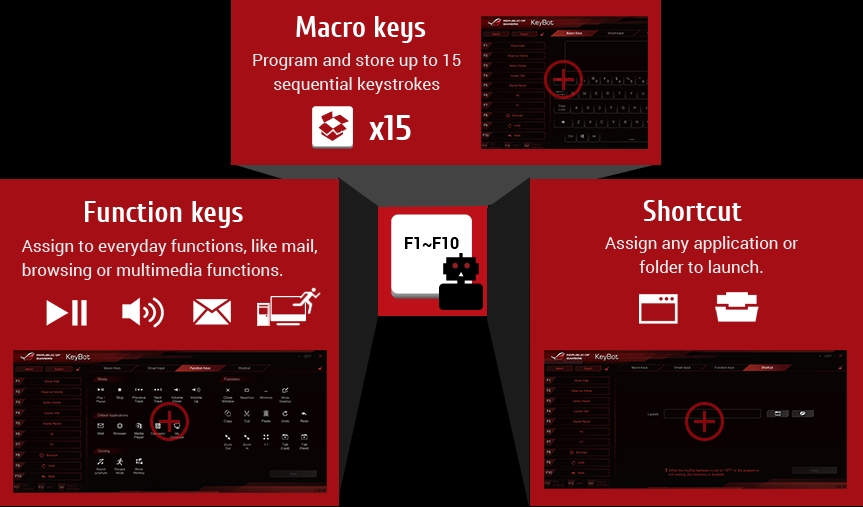

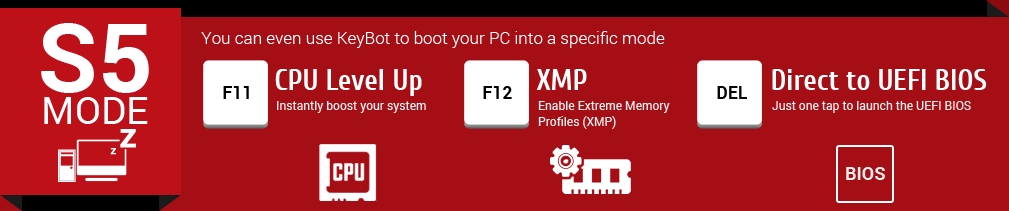

Fancy a free keyboard upgrade? That's what KeyBot gives you instantly. Just plug your existing keyboard into the dedicated USB socket to activate the exclusive KeyBot microprocessor on the Rampage V Extreme. Use the easy-to-use utility to assign macros to function keys F1-F10 to launch any application with a single press or control multimedia playback or store up to 15 keystrokes per key!
RAMDisk
Dynamically unleash your RAM 20X faster than SSD!

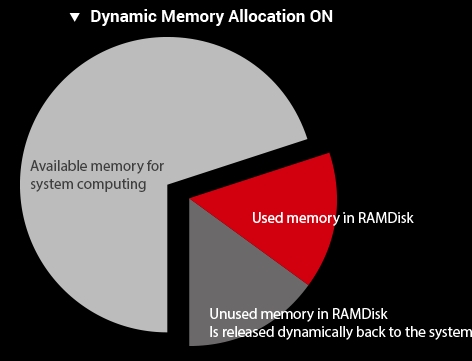

With RAMDisk you can turn system memory into superfast temporary storage. Put large files, such as game maps, into RAMDisk and watch loading times fly you'll never again wait to play. The improved 2014 edition of RAMDisk dynamically allocates memory, so unused RAM is released back to the system when it's needed. You'll even enjoy the bonus of protecting your SSD drives, as RAMDisk reduces excessive reads and writes that can reduce lifespan!

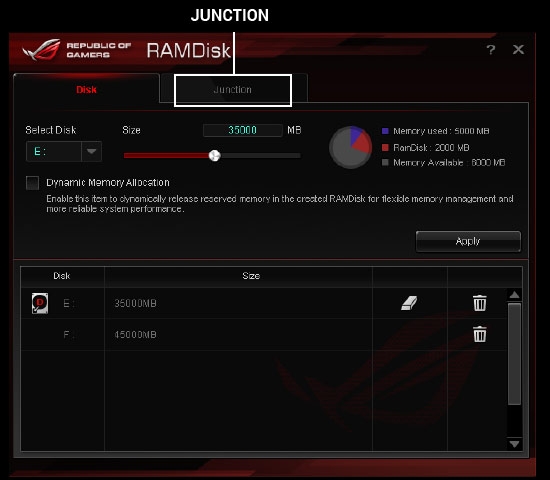

Last but not least, the junction function serves as quick links between files and RAM storage. All files are automatically saved and restored to their specific locations on hard drives when you turn your PC off, then go back to RAM when you power on again.
UEFI BIOS
UEFI BIOS and Secure Erase.
Award-winning simplicity and factory-fresh conditioning for superb performance.

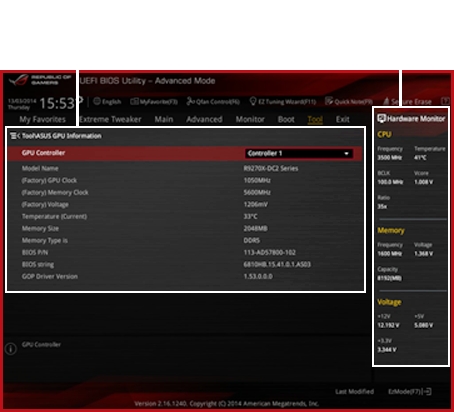

Award-winning UEFI BIOS
Acclaimed by media worldwide as the most-intuitive UEFI BIOS!

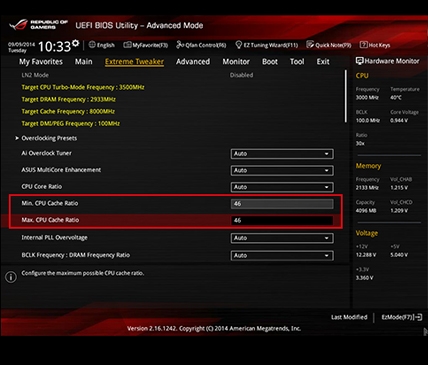

The smoothest mouse-controlled graphical UEFI BIOS has been upgraded to deliver faster setup and easier functions, with an even more appealing design for better overclocking and DIY experiences. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.

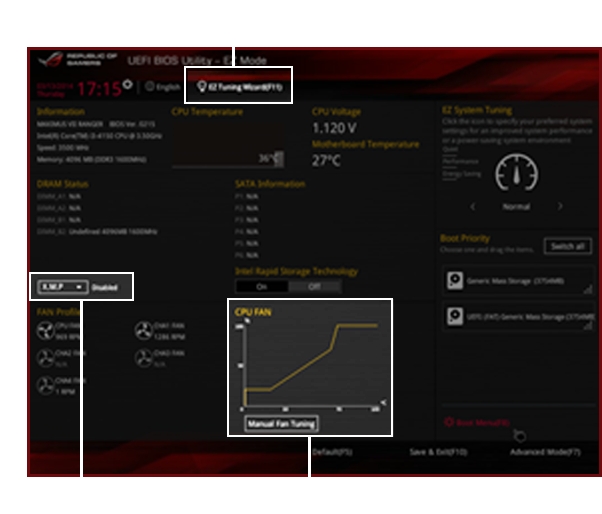

EZ mode
Fan Profile:
Detailed CPU and case fan information for instant cooling!
SATA Information:
Displays SATA port details for you to easily recognize devices!
Fast Clock Adjustment:
Use mouse controls to change the time and date!
EZ XMP:
Improve your DRAM performance with a click!
Answer a few question to boost the system or build up RAID
Quickly apply XMP settings
Drag to customize each fan's settings
Advanced
Shortcut:

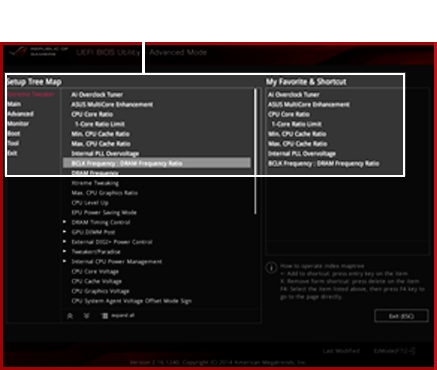

Right-click to create shortcuts to frequently-used settings or press F4 to manage your list!
Quick Notes:
Make notes and capture BIOS-related ideas, quickly and conveniently!
Last Modified Log:
Track recent changes and save preferred profiles onto a USB drive!
SATA Port Renaming:
Rename SATA ports for easy identification!
Design Obsessed
ASUS gives you more!
Truevolt USB
Stable supply of 5V - front and back!!
Forget the USB power drop-outs!

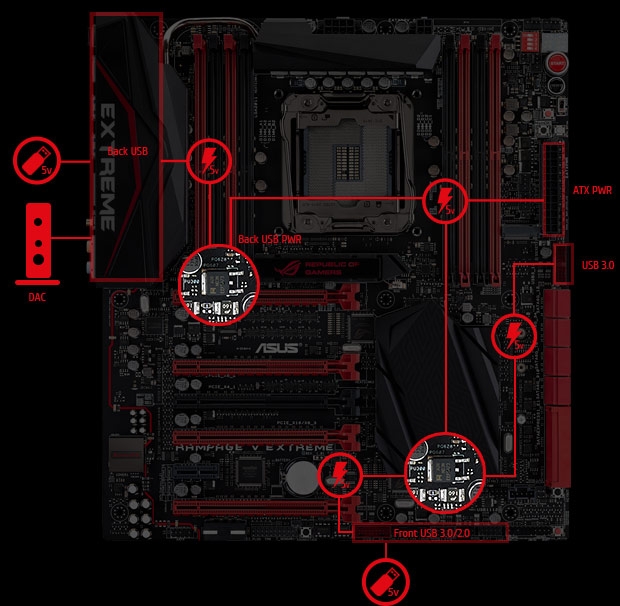

ROG's TrueVolt USB design delivers a rock-steady 5V supply to both the front and back USB sockets no drop-outs!
Two 5V isolated linear power supply for all USB ports
-Low noise, low loss.
-Stable 5V* supply to provide clean 5V USB power to minimize potential fluctuations
-All connected equipment benefits from the clean, stable 5V supply at the same time.
5V output varies from PSUs to PSUs
Gamer's Guardian
All-round protection provides the best quality, reliability and durability
Black Nickel-coated Q-shield
0 pain!
Protect your hands from nicks and cuts!

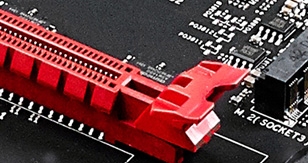

Q-Slot
1 clip
to swap or secure your graphics card!
Q-DIMM
1-sided

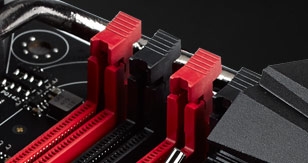

clips mean handling memory modules is a cinch super simple and super secure!
DRAM Over-current Protection
1 additional

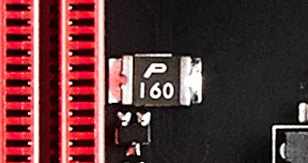

resettable fuse protects connection ports and DRAM against overcurrent and short-circuit damage!
Backplates
2
backplates to provide additional cooling, protection and reinforcement!
ESD Guards
2X greater
electrostatic protection than standard. ESD Guards cover the PS2, USB, audio and LAN ports!
Stainless Steel Back I/O
3X longer
lifespan than ordinary panels!
10K Black Metallic Capacitors
20% greater
temperature endurance
5X longer
lifespan than generic capacitors!
AI Suite 3
One-stop control panel
ROG CPU-Z
ROG-themed
CPU-Z shows important system information
Mem TweakIt
Dynamic timing monitoring, DRAM efficiency gauge
USB UEFI BIOS Flashback
Refresh your BIOS in a flash, even when the system is off
Kaspersky Anti-Virus (1 year)
The best protection from viruses and spyware
DAEMON Tools Pro Standard (1 year)
The leading tool for optical and virtual discs
ASUS WebStorage
Free cloud storage
ASUS HomeCloud
Access your PC, stream multimedia and manage could stage anytime and anywhere!
Specifications
- CPU
Intel Socket 2011-v3 Core i7 Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
- Chipset
Intel X99
- Memory

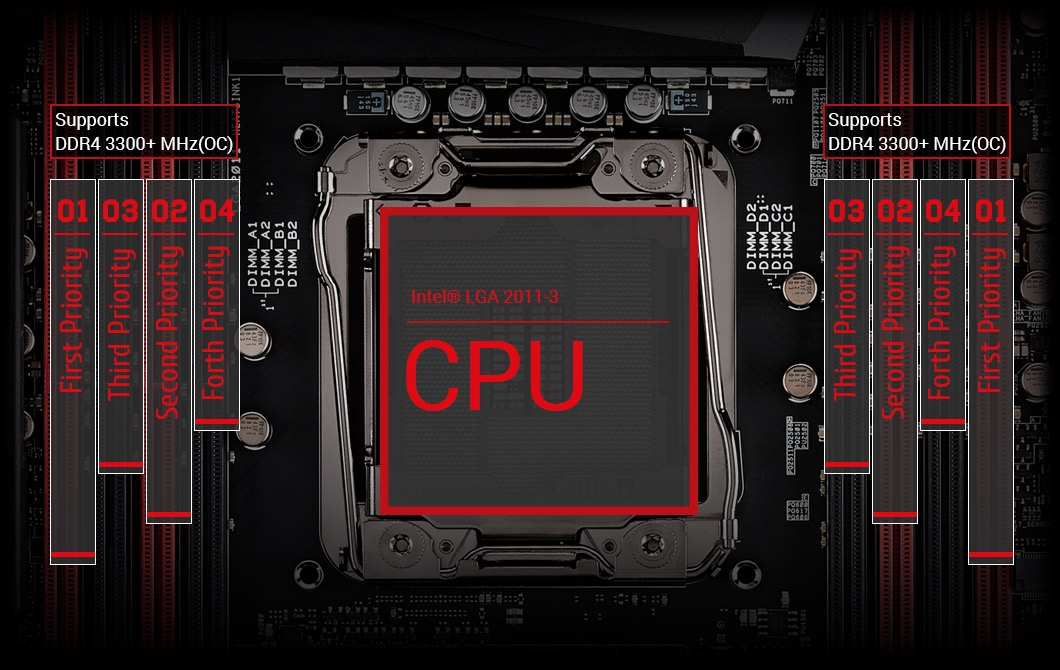

8 x DIMM, Max. 64GB, DDR4 3300(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Quad Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
- Multi-GPU Support
Supports NVIDIA 4-Way SLI Technology *1
Supports NVIDIA 3-Way SLI Technology
Supports NVIDIA SLI Technology
Supports AMD 4-Way CrossFireX Technology
Supports AMD 3-Way CrossFireX Technology
Supports AMD CrossFireX Technology
- Expansion Slots

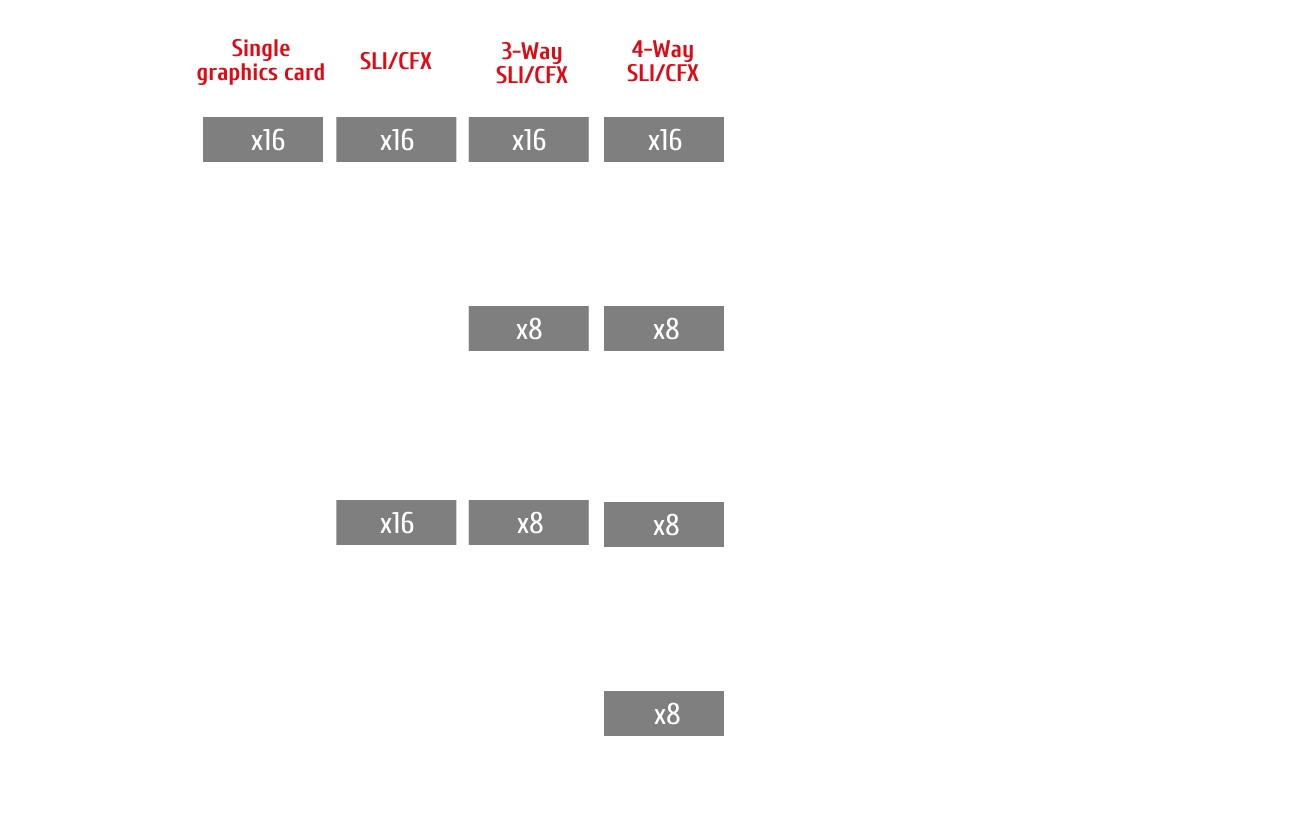

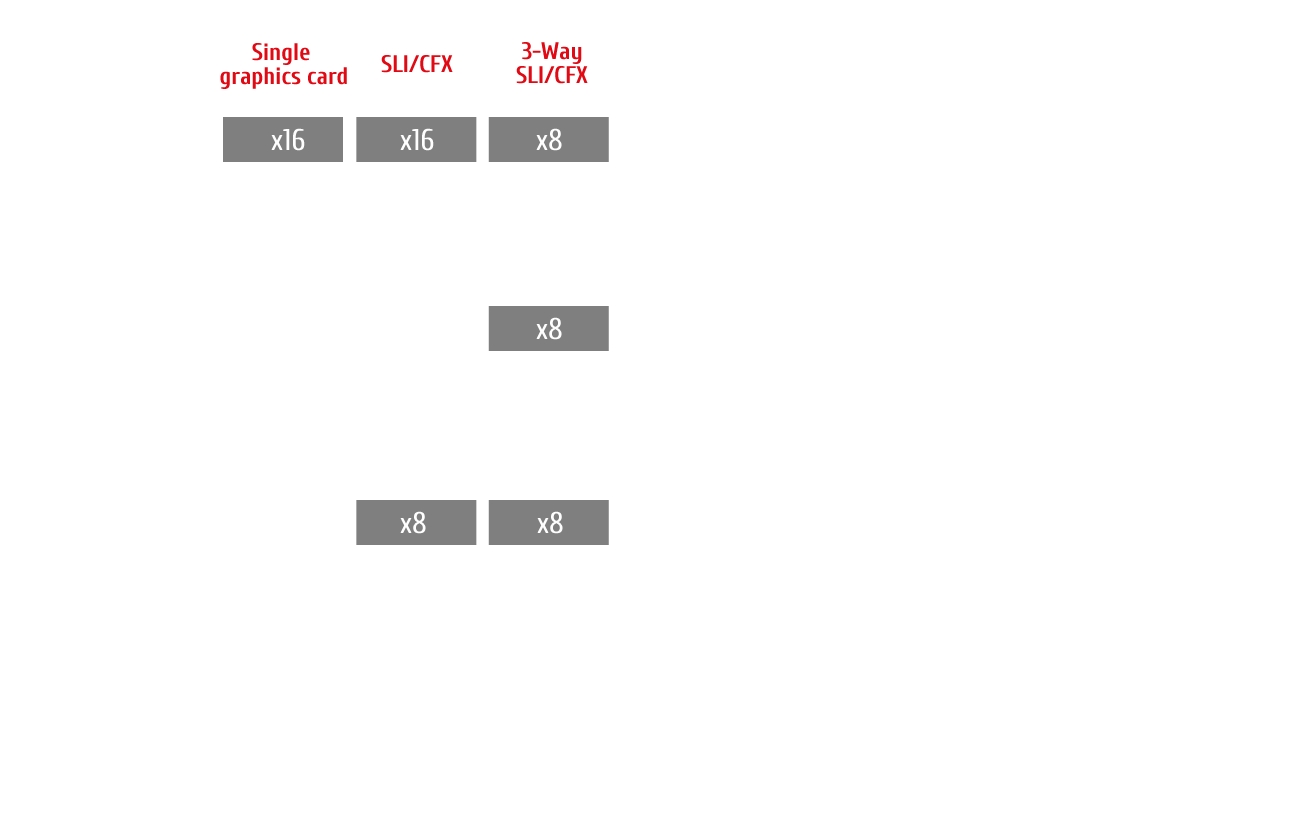

4 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x8/x8 or x16/x8/x8/x8 mode with 40-LANE CPU; x16, x16/x8, x8/x8/x8 mode with 28-LANE CPU) *2
1 x PCIe 2.0 x16 (x4 mode) *3
1 x PCIe 2.0 x1 *3
- Storage
New Intel Core i7 Processors :

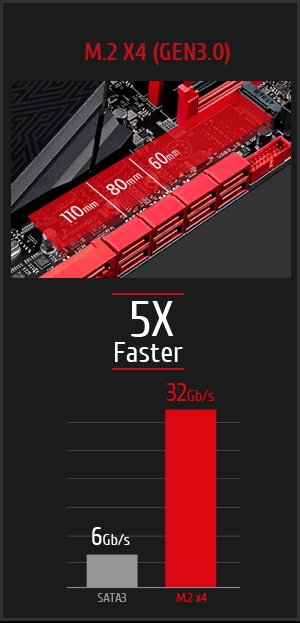

1 x M.2 Socket 3, , with M Key, type 2260/2280/22110 storage devices support ( Supports PCIE SSDs only)
Intel X99 chipset :

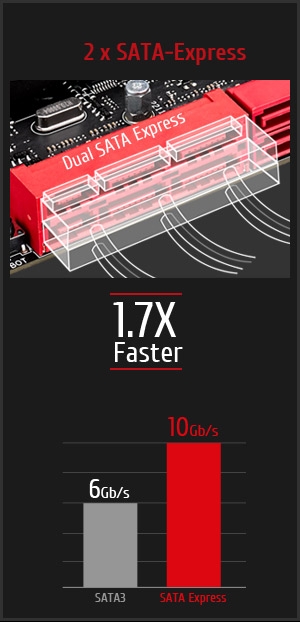

1 x SATA Express port, red, compatible with 2 x SATA 6.0 Gb/s ports
8 x SATA 6Gb/s port(s), red, *4,
Supports Intel Smart Response Technology, Intel Rapid Recovery Technology*5
ASMedia SATA Express controller : *6
1 x SATA Express port, red, compatible with 2 x SATA 6.0 Gb/s ports
- LAN
Intel I218V, 1 x Gigabit LAN Controller(s), featuring GAMEFIRST III
Intel LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
Anti-surge LANGuard
- Wireless Data Network

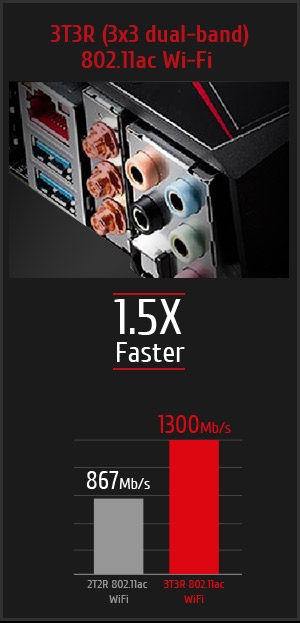

Wi-Fi 802.11a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Up to 1300Mbps transfer speed
- Bluetooth
Bluetooth V4.0
- Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- SupremeFX Shielding Technology
- ELNA premium audio capacitors
Audio Feature :
- Blu-ray audio layer Content Protection
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- Sonic SoundStage
- Sonic SenseAmp
- Sonic Studio
- Sonic Radar II
- USB Ports
Intel X99 chipset :
4 x USB 3.0 port(s) (4 at mid-board)
Intel X99 chipset : *7
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
ASMedia USB 3.0 controller : *8

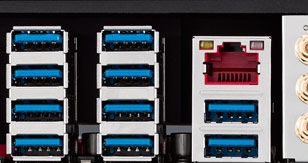

10 x USB 3.0 port(s) (10 at back panel, blue)

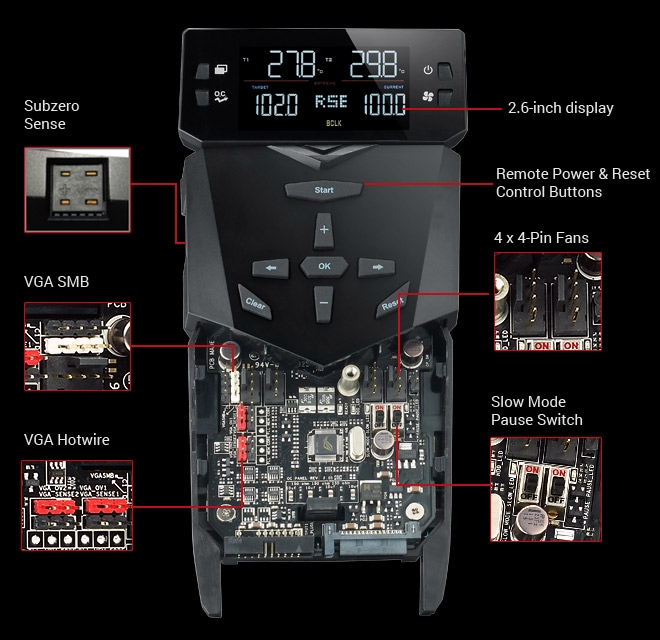

- OC Panel

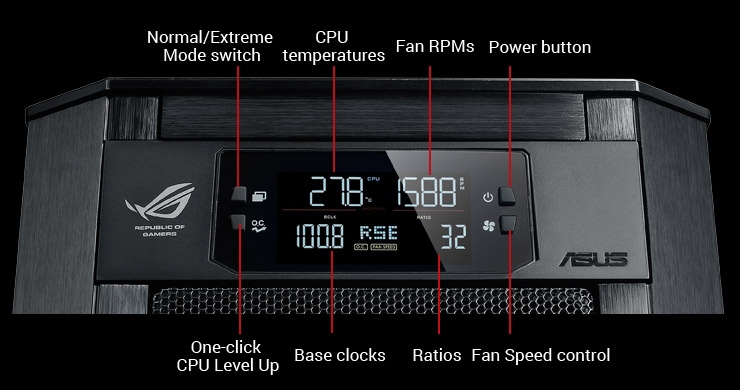

2.6 " LCM display
EXTREME/NORMAL mode switch
EXTREME Mode for subzero OC benching:*9
- VGA Hotwire
- Subzero Sense
- Slow Mode
- Pause Switch
- VGA SMB header
- ProbeIt
- 4 x 4-pin extra fan connectors
NORMAL Mode for in-chassis usage:*10
- CPU Level Up OC button
- FanSpeed control button
- LCM backlight on/off button
I/O Ports:
- POWER1 x SATA power connector
- ROG_EXT port1 x 18-1 pin data connection port
- ROG Exclusive Features
DirectCU thermal design
ROG Connect :
- RC Diagram
- RC Remote
- RC Poster
Extreme Engine Digi+ IV :
- IR3555 PoweIRstage
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
ROG Extreme OC kit :
- ReTry button
- Safe Boot button
- Start button
- Reset button
- Slow Mode
- LN2 Mode
- PCIe x16 Lane Switch
- Debug LED
ProbeIt
KeyBot
- CPU Level Up
- XMP
- Direct Key
UEFI BIOS features :
- ROG BIOS Print
- GPU.DIMM Post
- Tweakers' Paradise

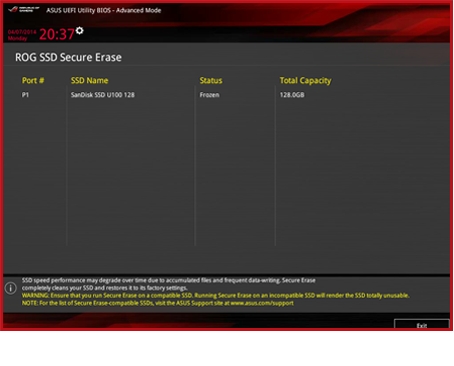

- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
GameFirst III
iROG
Extreme Tweaker
USB BIOS Flashback
Overclocking Protection :
- COP EX (Component Overheat Protection - EX)
- Voltiminder LED II
- Special Features
ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger+
- USB Charger+

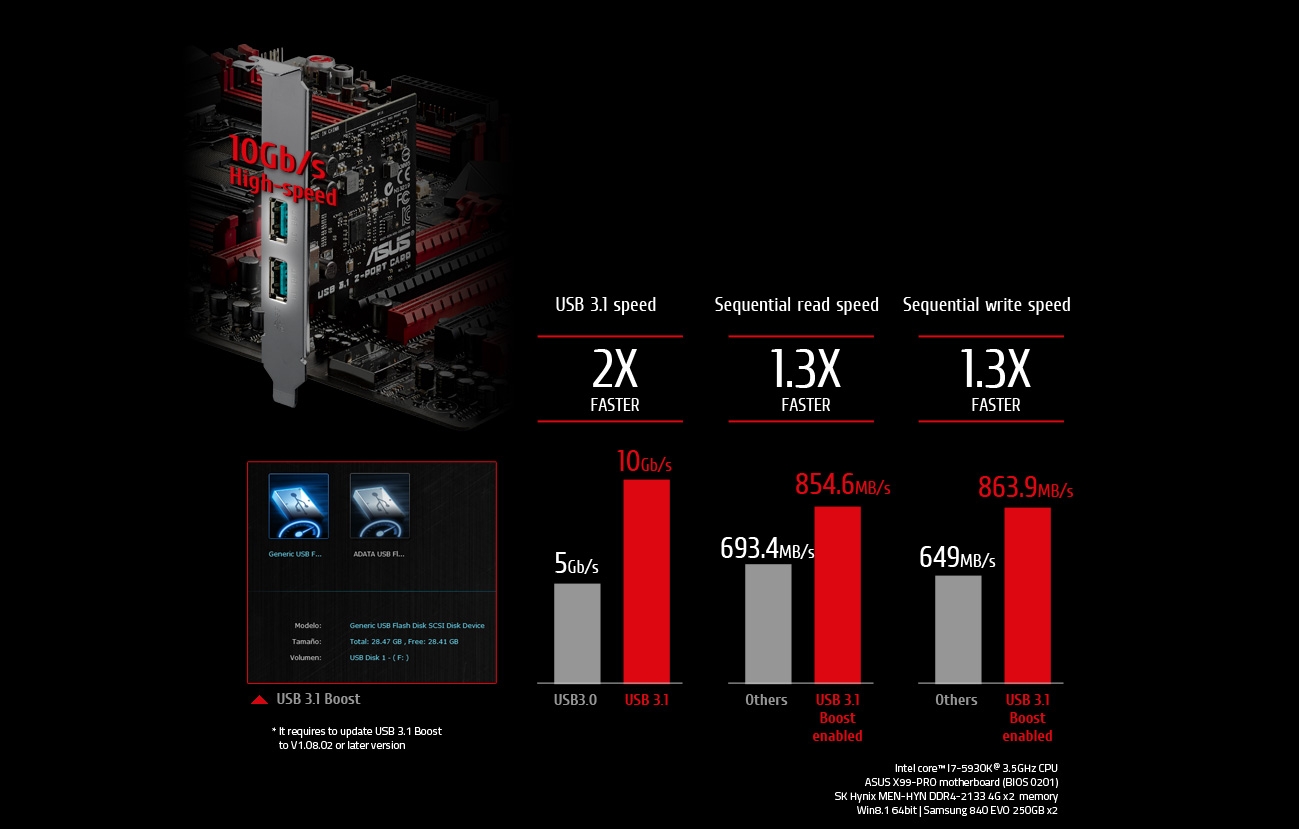

- USB 3.1 Boost
- Disk Unlocker
- Operating System Support
Windows 8.1
Windows 8
Windows 7
- Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x LAN (RJ45) port(s)
10 x USB 3.0 (blue)
2 x USB 2.0 (one port can be switched to ROG Connect)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Clear CMOS button(s)
1 x ROG Connect On/ Off switch(es)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0
- Internal I/O Ports
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA Express connector: red, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2 Socket 3 for M Key, type 2260/2280/22110 storage devices support ( Support PCIE SSD only)
1 x TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
6 x Chassis Fan connector(s) (6 x 4 -pin)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x Slow Mode switch(es)
9 x ProbeIt Measurement Points
3 x Thermal sensor connector(s)
1 x EZ Plug connector(s) (4-pin Molex power connector)
1 x Power-on button(s)
1 x Reset button(s)
1 x BIOS Switch button(s)
1 x LN2 Mode jumper(s)
1 x ROG extension (ROG_EXT) header(s)
1 x KeyBot Button
1 x Sonic SoundStage Button
1 x Safe Boot button
1 x ReTry button
- Accessories
User's manual
I/O Shield
10 x SATA 6Gb/s cable(s)
1 x ASUS 3T3R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x 3-Way SLI bridge(s)
1 x 4-Way SLI bridge(s)
1 x SLI bridge(s)
1 x CrossFire cable(s)
1 x Q-connector(s) (2 in 1)
1 x ASUS USB 3.1 CARD(2-ports Type A)
3 x Thermal sensor cable pack(s)
1 x 12 in 1 ROG Cable Label(s)
1 x X-Socket 2 kit
1 x ROG Door Hanger(s)
OC Panel Kit:
- 1 x OC Panel(s)
- 1 x OC Panel 5.25-inch bay metal case
- 1 x OC Panel Cable(s)
- 1 x OC Panel screw pack(s)
- BIOS
2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.
- Manageability
WfM2.0, DMI2.7, WOL by PME, PXE
- Support Disc
Drivers
ROG GameFirst III
ROG RAMDisk
ROG CPU-Z
ROG Mem TweakIt
Kaspersky Anti-Virus
DAEMON Tools Pro Standard
ASUS WebStorage
HomeCloud
ASUS Utilities
- Form Factor
Extended ATX Form Factor
12 inch x 10.7 inch ( 30.5 cm x 27.2 cm )
- Note
1. 28-LANE CPUs can only support up to 3-Way SLI/ 3-Way CrossFireX
2. The PCIE_X8_4 slot shares bandwidth with M.2 x 4.
40-LANE CPU: The PCIeX8_4 slot can only be used in x4 mode or lower when used simultaneously with the M.2 connector. If x8 mode is used, the two connectors will be mutually exclusive.
28-LANE CPU: The PCIE_X8_4 slot will be disabled and the M.2 connector will always be enabled.
3. The PCIE_X4_1 (gray) slot shares bandwidth with the PCIE_X1_1 slot, USB3_E910 and SATAExpress_E1 connector. When the PCIE_X4_1 slot is occupied by an X1 or X2 device, the SATAEXPRESS_E1 will be disabled. When the PCIE_X4_1 slot is occupied by X4 device, the SATAEXPRESS_E1, USB3_E910 ports, and the PCIE_X1_1 slot will be disabled.
4. Due to chipset behavior, the SATA6G_78, SATA6G_910 ports do not support IRST including RAID configuration.
5. These functions will work depending on the CPU installed.
6. These SATA ports share bandwidth with the PCIE_X4_1 slot, and when the PCIE_X4_1 slot is ocuupied, the SATA ports will be disabled. These SATA ports are for data hard drives only. ATAPI devices are not supported.
7. 2 x USB2.0 port at mid-board shares with ROG extension (ROG_EXT) port.
8. USB3_E910 ports at back panel will be disabled when the PCIE_X4_1 slot is occupied by an X4 bandwidth device.
9. Extreme Mode capabilities, including V1, V2, DRAM and other voltage definitions, vary by chipset. Please refer to your motherboard manual for details.
10. One 5.25" drive bay is required for NORMAL Mode installation.
