All stock codes associated to this product
CLF035PL12BUA, CL-F035-PL12BU-A
Overview

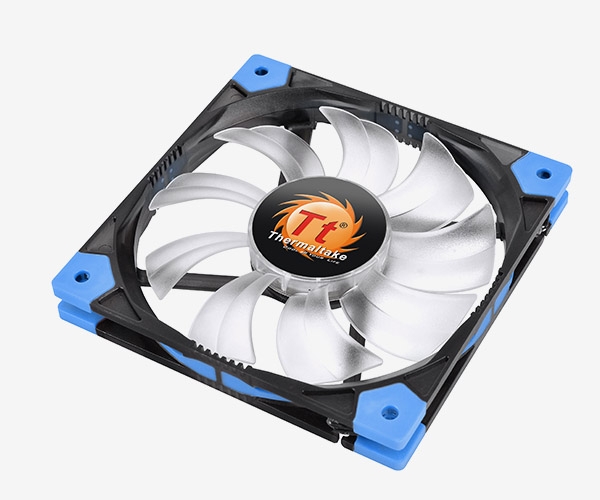

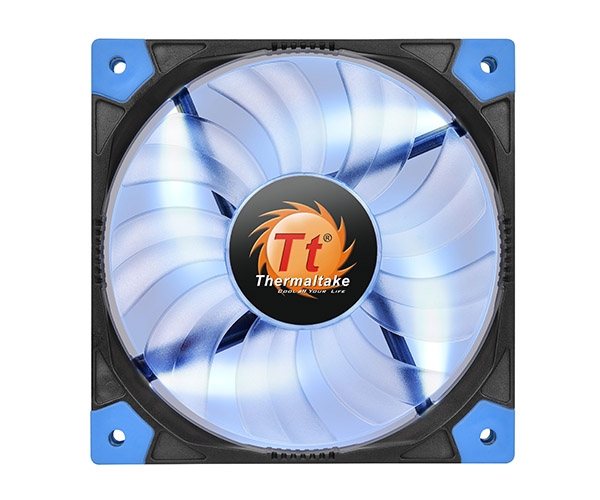

Luna 12 Slim LED Blue
With only 15mm thickness, the Luna 12 Slim LED Series is a high performance
silent fan especially designed for mini chassis or at any critical modding
situation. Hydraulic bearings for silent operation guarantee ultra-low noise.
Double-curved nine fan blades design ensures optimal airflow. Additionally, an
anti-vibration mounting system strengthens the stability during operation. Luna
12 Slim LED series is available in three colors (red/white/blue) to add style to
the chassis.

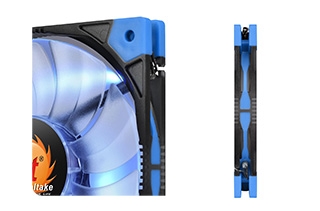

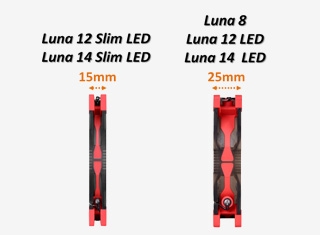

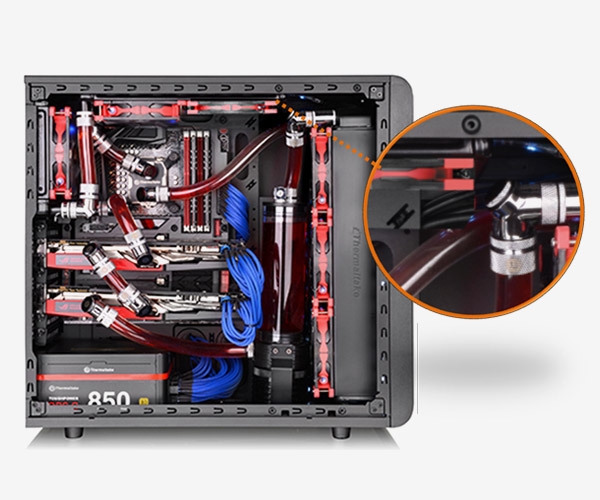

Interference-free Design
With 15mm thickness, Luna 12 Slim LED fan can be mounted on ultra thick
radiator in PC cases with limited space where a normal 25mm thick fan can’t
support.

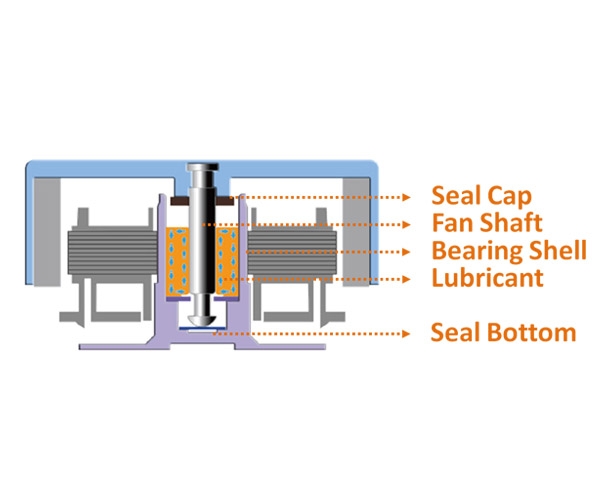

Hydraulic Bearing Offers Silent Operation and Longer
Lifespan
Hydraulic bearing self lubricates with a high quality, friction reducing
substance which lowers operating noise and improves efficiency. The seal cap
prevents leakage of the lubricant improving on the lifespan of the unit.

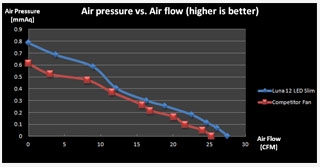

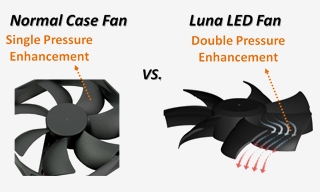

Outstanding Performance, Less Noise
Enlarged fan frame opening enhances air flow with a fan speed of up to 1400
RPM. Double-curved nine fan blades deliver exceptional static pressure at a low
noise level of 24 dBA.

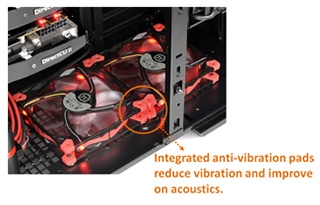

Anti-vibration Mounting System
In-mold injection anti-vibration rubber pads provide hassle-free usage for
80% protection coverage, including all four corners and the frame.

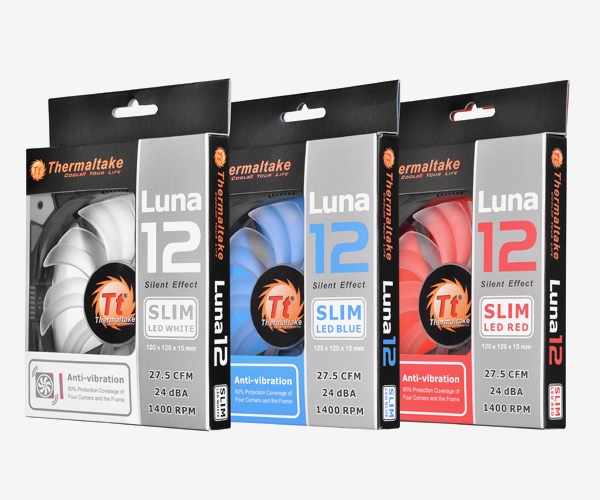

3 Colors of Luminous LED
The Luna 12 Slim LED series is available in three vivid colors: red, white,
and blue. Embellish the chassis in your own way!
Specifications
|
P/N |
CL-F035-PL12BU-A
(Blue) |
|
Fan
Dimension |
120 x 120 x 15
mm |
|
Started
Voltage |
9.0
V |
|
Rated
Voltage |
12
V |
|
Rated
Current |
0.16
A |
|
Power
Input |
1.92
W |
|
Fan
Speed |
1400
R.P.M |
|
Max. Air
Pressure |
0.876
mm-H2O |
|
Max. Air
Flow |
27.533
CFM |
|
Noise |
24
dB-A |
|
Bearing
Type |
Hydraulic
Bearing |
|
Life
Expectation |
40,000 hrs,25 |
|
Connector |
3
PIN |
|
Weight |
93.2
g |
