Overview

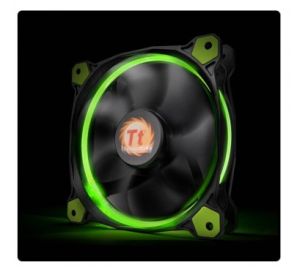

Riing 12 High Static Pressure LED Radiator Fan
Thermaltake has released the new Riing 12 LED Series, a 120mm fan fitted to
enhance static pressure that produces impressive cooling performance with an
optimized fan blade. Hydraulic bearings for silent operation guarantee ultra-low
noise. In addition, an anti-vibration mounting system strengthens the stability
during operation.

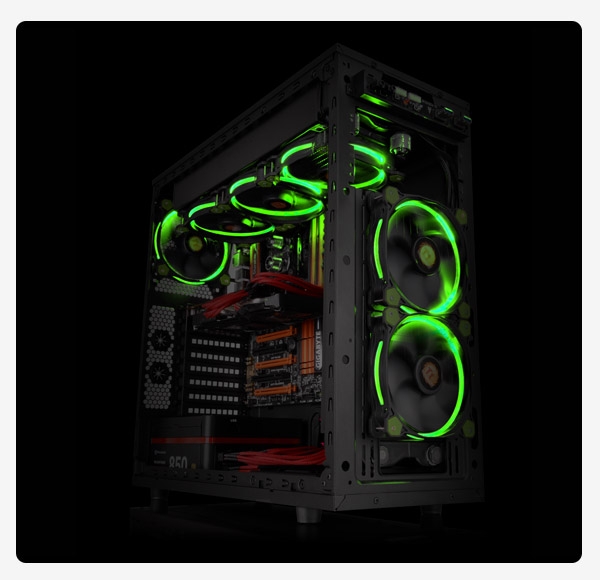

The patented LED Ring maintains color and brightness uniformity; the lighting
effect is visible from all sides and angles. The four-colored LED ring (in blue,
red, white, and green) adds style to the chassis.
Taiwan Patent : M498806
China
Patent : CN204498539U
US
Application Patent : US9,506,663
Tt LCS Certified is the hallmark that ensures first-class performance from
the best features and fitment. A certification exclusive to Thermaltake, it sets
the benchmark for all true LCS chassis and is applied only to products that meet
our stringent design standards for delivering what hardcore enthusiasts demand.
The Tt LCS certification is a way for Thermaltake to designate to all power
users the chassis which have been tested for best compatibility with extreme
liquid cooling configurations.
(T = Inlet temp. Outlet temp)
*The
bigger number of T means the better performance.

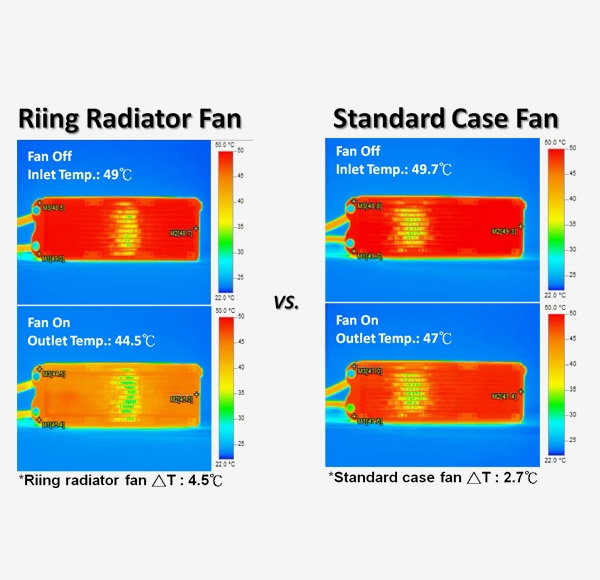

Thermal Image Test
Compared to the standard case fan, the combination of three Riing 12 radiator
fans and RL360 radiator delivers 40% better cooling performance. (Inlet and
outlet temp. are 49? and 44.5? in respective, ?T= 4.5?)

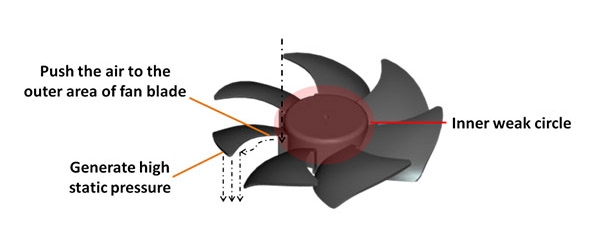

Concentrated Compression Blade
Custom designed for high-static pressure requirements of demanding
applications such as radiators, the Concentrated Compression Blade (CCB) is
engineered to focus the inner weaker circle of air outwards, allowing the outer
section to pressurize and compress the air.

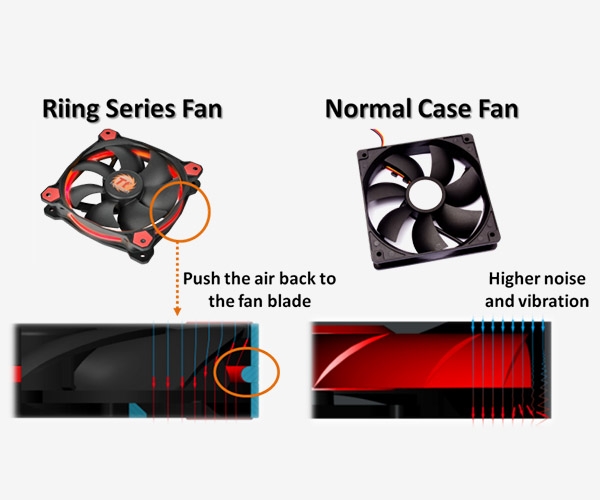

Wind Blocker Frame
To achieve maximum static pressure in all applications, the wind blocker
frame is designed to work with the Concentrated Compression Blades (CCB)
pressure mechanism by directing airflow towards the middle section of the blade,
thereby creating a compression effect and blocking any pressure from escaping.
This reduces the blades noise and vibration, creating a perfect balance between
power and sound.

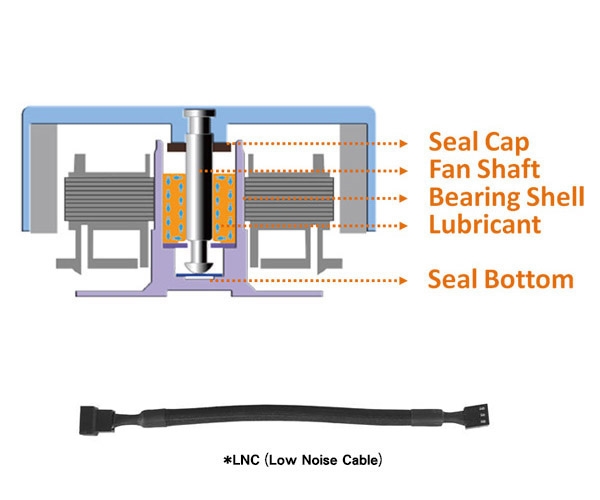

Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high quality, friction-reducing
substance which lowers operating noise and improves efficiency. The seal cap
prevents leakage of the lubricant, and improves the lifespan of the unit. The

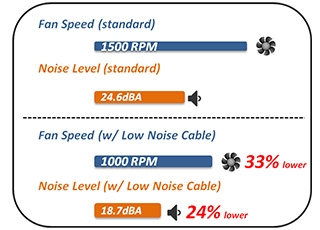

LNC (Low-Noise Cable) can reduce the noise level by 24% from 24.6dBA to
18.7dBA.

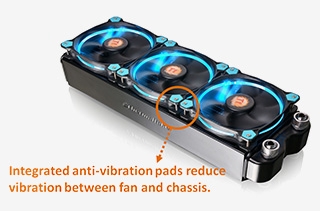

Anti-vibration Mounting System
In-mold injection anti-vibration rubber pads provide hassle-free usage for
80% protection coverage, including all four corners.

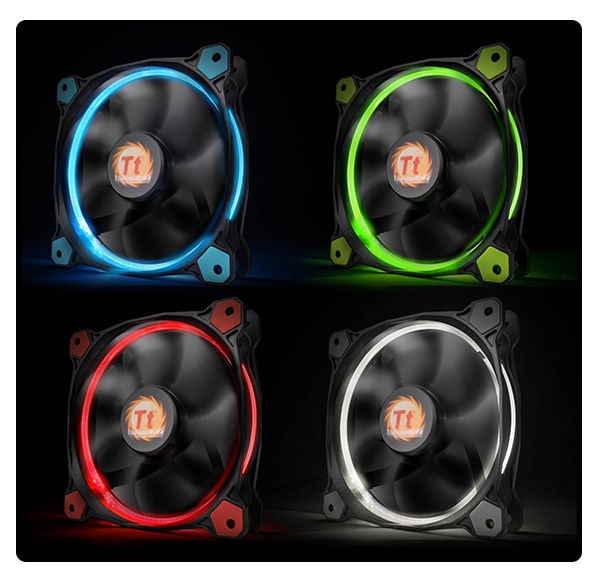

Four colors of the Patented LED Versions Available
Riing 12 LED Series is also available with different LED versions (red, blue,
green, and white), adding cooling aesthetics to the chassis.
Specifications
|
P/N |
CL-F038-PL12GR-A |
|
Fan
Dimension |
120 x 120 x 25
mm |
|
Started
Voltage |
9.0
V |
|
Rated
Voltage |
12.0
V |
|
Rated
Current |
0.2
A |
|
Power
Input |
2.4
W |
|
Fan
Speed |
1500
R.P.M |
|
1000 R.P.M (with
LNC) |
|

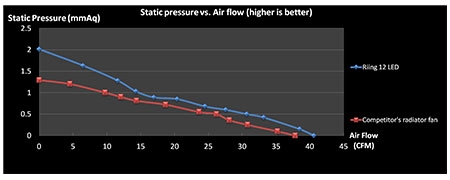

Max. Air
Pressure |
2.01
mm-H2O |
|
Max. Air
Flow |
40.6
CFM |
|
Noise |
24.6
dB-A |
|
18.7 dB-A (with
LNC) |
|
Bearing
Type |
Hydraulic
Bearing |
|
Life
Expectation |
40,000
hrs,25 |
|
Connector |
3 PIN + LNC (Low-Noise
Cable) |
|
Weight |
158.8
g |
