All stock codes associated to this product
CASEKENDOMENTI, CASE-KENDOMEN-TI, CADKENDOMENTI, CAD-KENDOMEN-TI, 6933412712695
Kendomen TI
Mid-tower chassis features excellent cooling performance, easy installation, superior expandability and easy future maintaining.
Design
Description

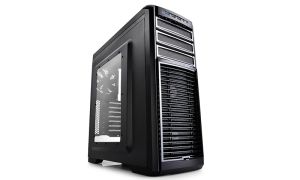

KENDOMEN is an ATX PC case, offering room for ATX, Micro ATX and Mini ITX motherboards. It has a classic exterior design and compact interior layout, the case features excellent cooling performance, easy installation, superior expandability and easy future maintaining.
Excellent Cooling Performance

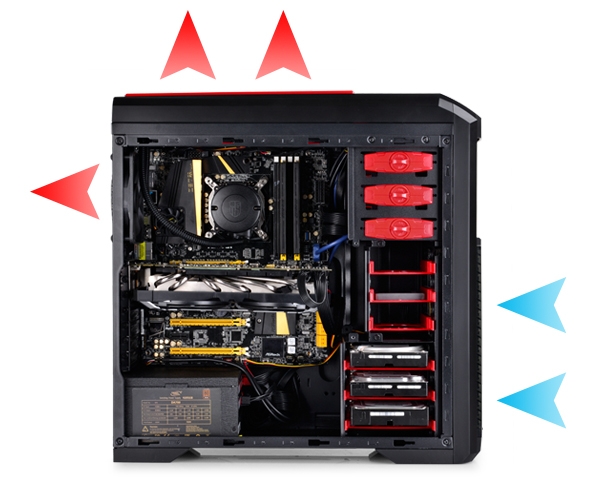

The KENDOMEN comes with front 2 intake LED fans, two exhaust fans at the top (supports liquid cooler instead) and one at rear. With 5 pre-installed fans, the case provides a clean and great airflow, you don’t need to buy any other case fan, it saves cost and time of your build. Moreover, The fan-speed adjusting switch ensure an awesome silence-performance ratio.
Easy Installation

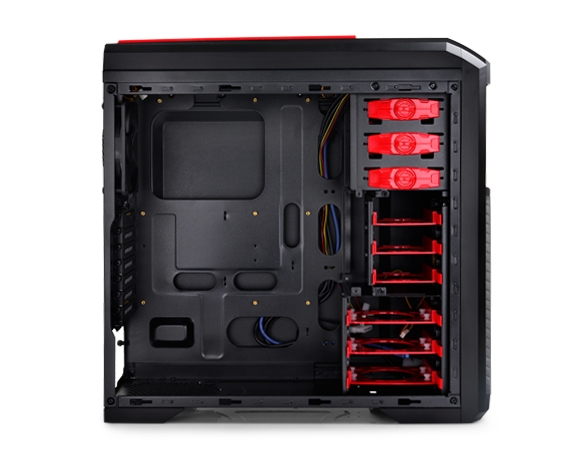

The case features multiple designs to make the building process simple. It includes motherboard stand offs; large cut out behind motherboard tray (install CPU cooler’s back plate readily); Tool-less ODD/HDD installation and 15mm sufficient cable management space.
Superior Expandability

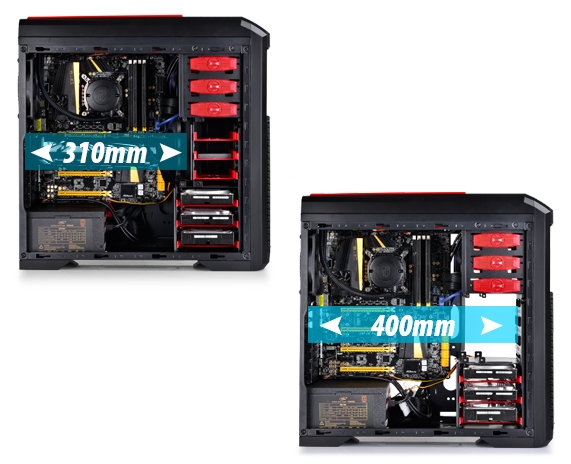

The KENDOMEN has a lot of space for storage expansion, it comes with 3x5.25" bays, 3x3.5" bays (which supports 2.5" SSD/HDD), and 3x2.5" drive bays. After removing 2.5" drive cage, it is capable to hold a 15.7" or 400mm length graphic card, in addition to 7 expansion slots, KENDOMEN is ready for most enthusiastic build.
Easy Future Maintaining

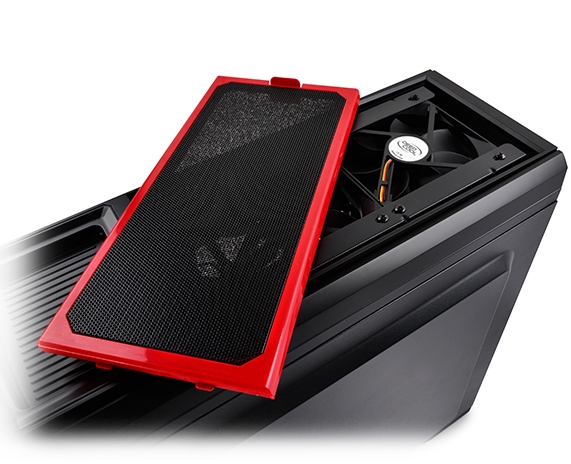

The top, front and bottom panel of KENDOMEN equipped with filter protects against dust and dirt, quick-remove design of top and front panel makes the cleaning so much easier.
Connection and Controlling

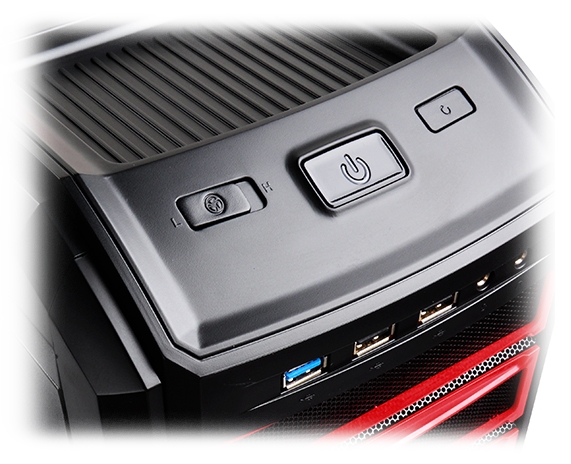

The control platform and I/O of KENDOMEN are located on the top of front panel, which are easy to access; Noise level and cooling performance can be managed with fan speed controller and USB3.0 ensure a quick data exchange between different devices.
Features
Support 240mm Liquid Cooler installation at top
With one fan-speed adjusting switch, can control 2 fans at the same time
5 fans pre-installed (two 120mm LED fan and three 120mm black fan)
1 *USB 3.0 +2*USB 2.0 Ports
Quick-move design of the top/front panel for easy installation/cleaning
Tool free installation design for ODD/HDD (Rubber buffer for 3.5HDD)
7pcs expansion slots
With rubber buffer and dust filter for PSU
Wide CPU cut out for CPU cooler mounting
Bottom loaded PSU for effective cooling and large inner space
Support cable management
Support ATX/MicroATX/MINI-ITX motherboards
With side-window
KENDOMEN RD: Red Decorating Parts, Red LED fan
KENDOMEN TI: Titanium color Decorating Parts, White LED fan
Technical Spec
| Motherboards |
ATX/MICRO ATX/MINI-ITX |
| Materials |
SECC+PLASTIC (ABS)(Panel thickness: 0.7mm) |
| Dimension (LxWxH) |
491*200*486mm |
| Net Weight |
5.76kg |
| Gross Weight |
6.66kg |
| 5.25" Drive Bays |
3 (all tool-free installation) |
| 3.5" Drive Bays |
3 (all tool-free installation) |
| 2.5" Drive Bays |
3 (tool-free)+ 3 (Switchable from 3.5") |
| I/O Panel |
1USB3.0/2USB2.0/Audio(HD)1/Mic1 |
| Expansion Slots |
7 |
| Cooling Fans |
Pre-installed: Rear: 1120mm fan; Front: 2120mm LED fan; Top: 2120mm fan |
| Power Supply Type |
ATX PS2 |
| CPU Cooler Compatibility |
165mm |
| VGA Compatibility |
310mm |
| Package dimension |
L530mm*W250mm*H550mm |
| Fan speed switch |
2 working status+off status |
