All stock codes associated to this product
DPMCH8ASNII, DP-MCH8-ASNII
Assassin II
Asymmetric Twin-Tower. Copper Base. 8 Heatpipe. PWM Fan. Nickel-Plated Heatsink.
Design
Description
The new generation of ASSASSIN II has preserved key features from ASSASSIN of great heat dissipation performance:Nickel-plated heatsink, 8 high-performance heatpipes,mirror finished copper base.In addition, ASSASSIN II has some upgrade parts that compared with ASSASSIN,it offers asymmetric twin-tower design,and uses new release fan-GF140 for excellent performance-noise ratio.However, breakthrough has been created for its special designed PWM fan with Min.300RPM for extreme silence.ASSASSIN II is designed for new generation CPU thermal requirement.

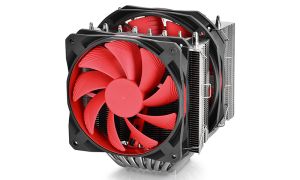

ASSASSIN II
Asymmetric Twin-Tower Design CPU Cooler for Overclockers.
Asymmetric Twin-Tower Design & Nickel-Plated Heatsink
Asymmetric twin-tower heatsink to power the conductivity of airflow more efficient, shark teeth shape &Nickel-plated design to offer a gaming appearance.
8 Pieces of U-Shaped Copper Heatpipe
The optimal heatpipe array to ensure the best cooling performance, the sound bend design to enhance thermal efficiency Max.
Mirror Finished Copper Base
Nickel-plated & mirror finished copper base, the special bulge design to absorb the heat from processor fleetly.
Dual FDB Bearings & Rubber-Covered Fan
Patented GF series fans enhance the cooling performance by providing high airflow. At the same time, de-vibration rubber absorbs operating noise for a quite using environment.
PWM fan with Min.300RPM for extreme silence
Rubber-covered fan with PWM function, the longer lifetime &lower noise level, both fans for 300RPM Min. to offer a perfect &absolute quiet operation.
Fluid Dynamic Bearing & Detachable Fan
Japanese Fluid Dynamic Bearing & high-quality IC for both fans, offer a super low noise level. Also,detachable fan impeller with the function of recruited lubricating oil, greatly extend the lifetime.
Fan hub control up to 4 PWM fan speed, also support cable management.
Equipped with multiple clips to support Intel LGA2011 -V3/LGA2011/1366/1156/1155/1150/775 and AMD FM2/FM1/AM3+/AM3/AM2+/AM2.
Features
Asymmetric twin-tower heatsink to power the conductivity of airflow more efficient, shark teeth shape&nickel-plated design to offer a gaming appearance.
Dual FDB bearings&rubber-covered fan with PWM function, the longer lifetime&lower noise level, both fans for 300RPM Min. to offer a perfect &absolute quiet operation.
8 pieces of U-shaped copper heatpipe to ensure the best cooling performance, the sound bend design to enhance thermal efficiency Max.
Mirror finished polished copper base keeps perfect contact with the CPU surface to achieve the best cooling performance.
Equipped with multiple clips to support Intel LGA2011 -V3/LGA2011/1366/1156/1155/1150/775 and AMD FM2/FM1/AM3+/AM3/AM2+/AM2.
Specifications:
Application For
|
Intel Socket 150W
LGA2011-v3/LGA2011/LGA1366/LGA1156/LGA1155/LGA1150/LGA775
High End Desktop i7
Core i7 Extreme/i7/i5/i3
Core 2 Extreme/Quad/Duo
Pentium/Pentium G
Celeron/Celeron G
|
AMD Socket 220W
FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
APU A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Phenom X4/X3/X2
Athlon II X4/X3/X2
Athlon X4/X2
Athlon
Sempron
Business Class
|
Technical Spec
| Overall Dimension |
143X158X167mm |
| Net Weight |
1479g |
| Fan Dimension |
140X140X26mm120X120X26mm |
| Fan Weight |
173g152g |
| Fan Speed |
300150~120010%RPM300150~140010%RPM |
| Rated Current |
0.1110%A(MAX)0.0910%A(MAX) |
| Power Input |
1.32W1.08W |
| Max. Air Flow |
70.08CFM68.06CFM |
| Noise |
17.8~26.5dB(A)17.8~27.3dB(A) |
| Rated Voltage |
12VDC |
| Operating Voltage |
10.813.2VDC |
| Starting Voltage |
7VDC |
| Bearing Type |
Fluid Dynamic Bearing |

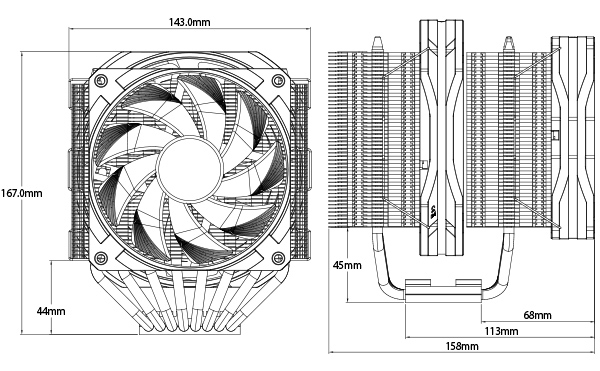

Product Dimension
