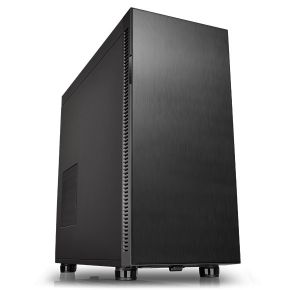

ThermalTake Suppressor F51 Midi-Tower Case - NO PSU, Black
  • 2xUSB3.0, 2xUSB2.0, 1xHD-Audio, SPCC, ATX

IMG 1 of 1
No Longer Available
Part Number:
393914
(?) Brand:
ThermalTake Web Site
Manuf No:
CA-1E1-00M1NN-00
CA1E100M1NN00
Shipping Weight:
27.8 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
CA1E100M1NN00, CA-1E1-00M1NN-00
F51 No Window

P/N: CA-1E1-00M1NN-00

Design

Thermaltakes Suppressor F51 E-ATX Mid-Tower Chassis

The Suppressor F51 mid-tower chassis is the latest series to the Thermaltake case line. Featuring leading-edge sound reduction panels on all sides, expand your cooling options with removable panels for the perfect balance in silent operation and cooling performance. Supporting a range of motherboard platforms from Mini ITX to E-ATX solutions, unrivaled liquid cooling expansion and expandability for all high-end GPU solutions users can expect an enthusiast built design they can trust.

Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.



Tool-Free Installation

Innovative 5.25 and 3.5 tool-free drive bay design minimizes installation/removal with hidden drive bays on the back panel to provide a clean look and improved expansion for liquid cooling components. The 2 + 6 drive bay with modular drive racks allows multiple SSD/HDD devices for improved storage capacity.

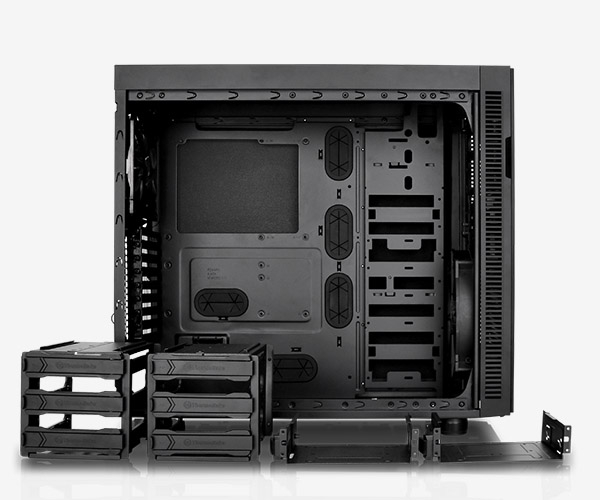

Fully Modular Design

With removable 2 + 6 drive racks, gain more for custom cooling components to freely interchange SSD/HDD cage sections for maximum interior space. Take advantage to include high-end, maximum capacity, cooling allotment without the reduction of GPU length limitations when incorporating liquid cooling expansion for the ultimate in cooling performance.


Hidden drive bay allows expandability for more liquid cooling and still allows data drive mounting for a clean look.

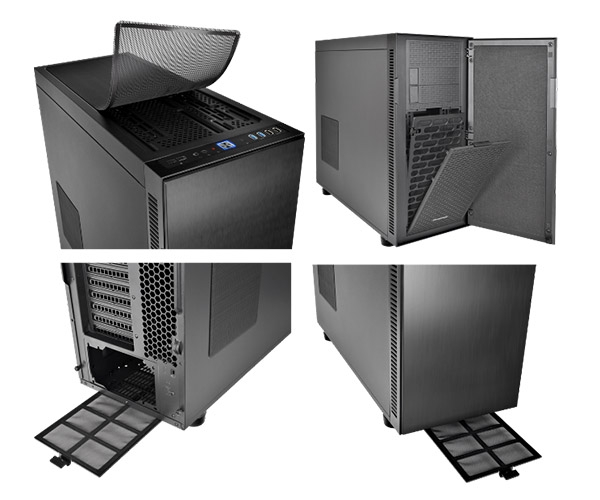

Dust Reduction

Super fine fan filters with excellent protection and reduction against dirt and dust on the top, inside the front panel, and at the bottom. Magnetic fan filter on the top simply attach the filter for dust filtration.

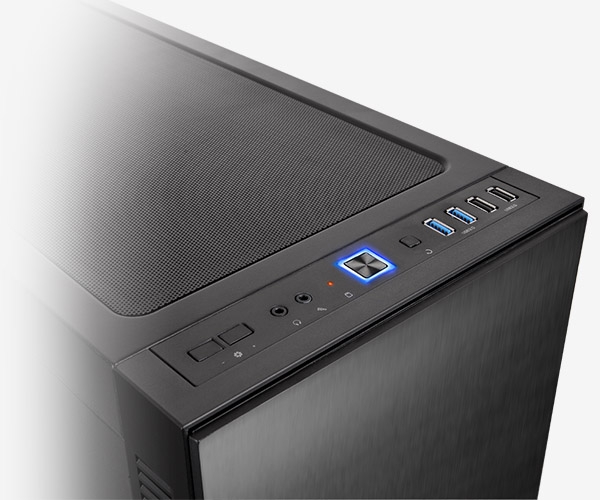

Handy I/O Ports with Fan Speed Control

Design with convenience and cleanness in mind, Suppressor F51 has built in fan speed control that supports up to four fans at the same time on the top-front panel together with dual USB 3.0 and 2.0, a HD audio connector, power, and reset button, grants a direct and easy access for external devices.

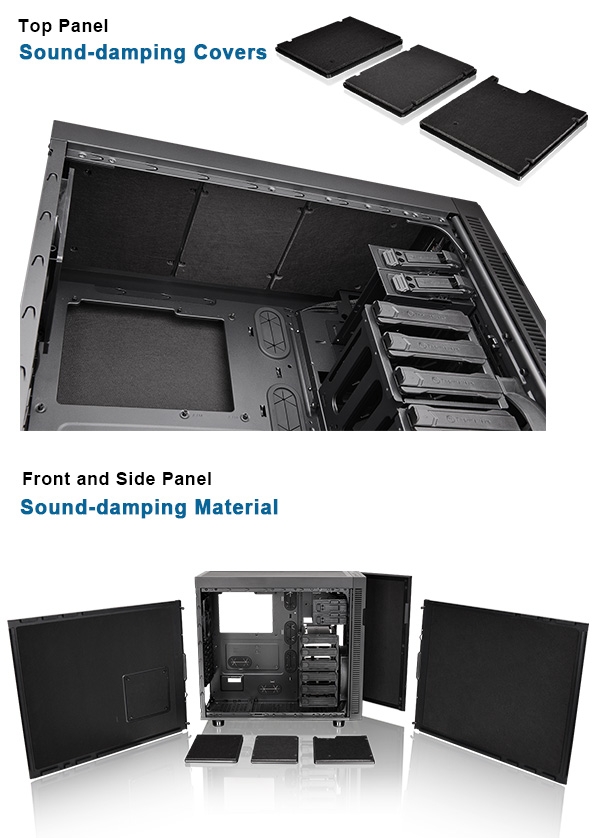

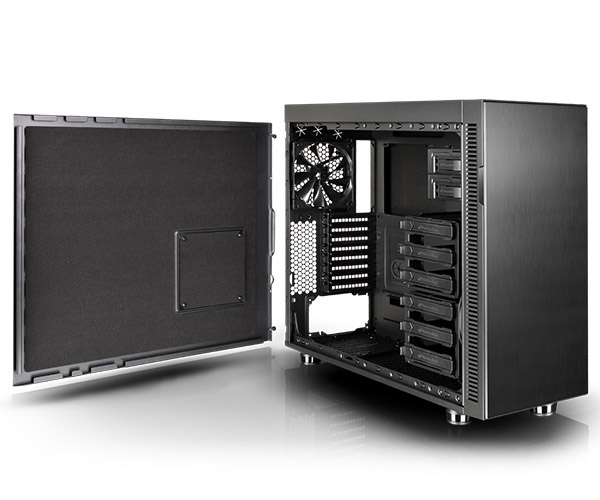

Modular Sound-damping Design

Built-in sound-damping panels incorporated the top, front, and side panels of the Suppressor F51 chassis to reinforce noise reduction for silent operation. Optimizing cooling performance with removable mounted top panels to expand cooling configurations for both air and liquid cooling solutions. Design and build a custom leading-edge silent operation PC with options for 120/140/200mm cooling fans and liquid cooling support for single, dual and triple radiator applications.

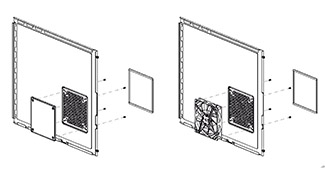

Removable fan filter on the left panel.


Optimized Silent Operation

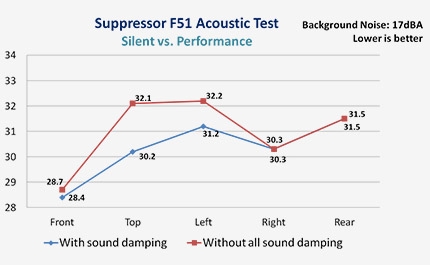

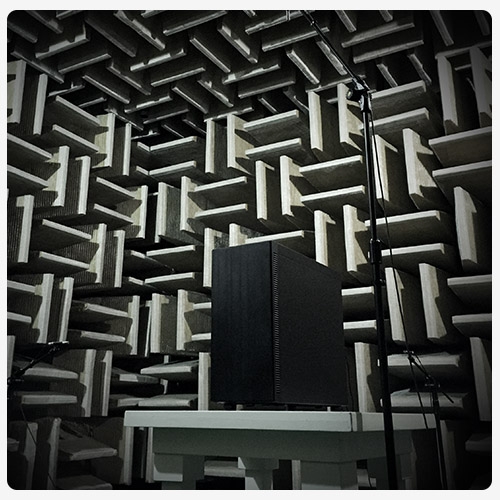

For acoustic test, Suppressor F51 was tested in a semi-anechoic chamber which includes anti-vibration, sound-proof, and sound-absorbing effect. Preinstalled sound-damping foams of Suppressor F51 reduce noise and acoustic levels within the entire chassis for extreme silent purpose. Suppressor F51 Acoustic Test Result:



Use thermal chamber (Ambient temp. of thermal chamber is 25C/77.0F) for heat testing, hardware includes:

CPU - IntelR CoreR i7-5960X
M/B - ASUS RAMPAGE V EXTREME (IntelR X99)
Memory - Kingston DDR4-3000 8G
HDD - Plextor M5S 128G
VGA - NVIDIA GTX780
PSU Toughpower DPS G 650W

Optimized Cooling Performance

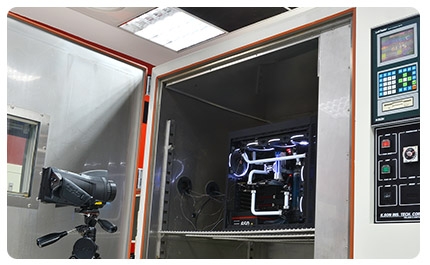

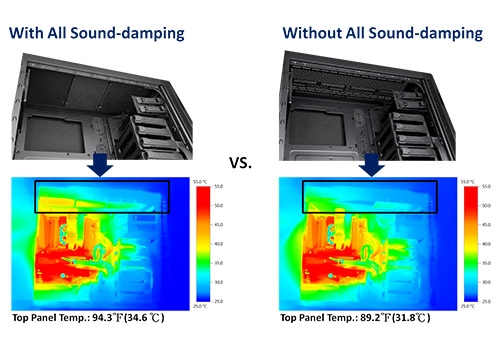

Thermal imaging camera was applied for the temperature test of the chassis. After the removal of all sound-damping covers from the top panel, Suppressor F51 dissipates heat more efficiently. The temperature decreases 2.6C/36.38F without any sound damping covers.


Outstanding Ventilation

The Suppressor F51 delivers advanced cooling performance for DIY/AIO liquid cooling and air cooling systems. With wide top-to-bottom side ventilation grills, air intake is maximized with a single 200mm front fan built-in and includes options for up to (3) 120mm or 140mm front fans with the provided ODD bridge (optional) combined with (2) bottom mount 120mm fan locations for maximum fan space selection. Dissipate heat properly with (1) rear built-in 140mm fan and (3) sectional top mounts to manage proper air flow in and out.

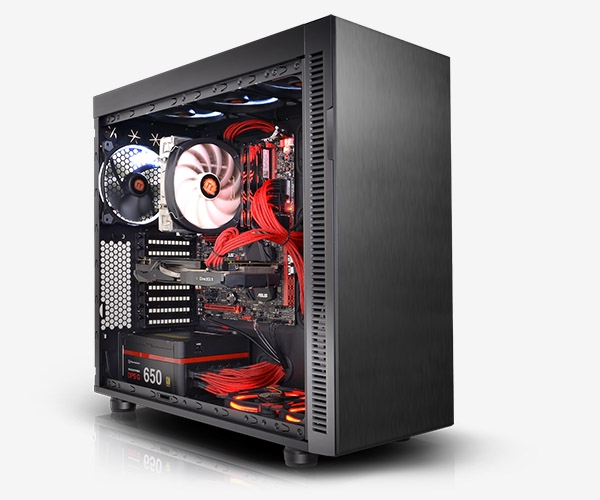

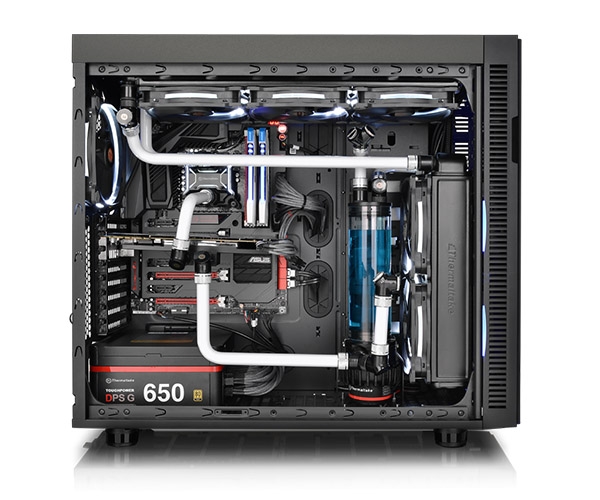

High-End Complete Solution

The Thermaltake Suppressor F51 Window enables users to build a complete high-end system that supports up to triple 120/140mm liquid cooling radiators or up to 200mm case fans. With extended graphic card support (up to 465mm), the Suppressor F51 simultaneously protects the hardware and increases the CPU’s overclocking potential for users looking to get the most out of their hardware. Most importantly, the Suppressor F51 delivers outstanding cooling efficiency, reduced exterior noise and dust signatures for ideal silent operation.

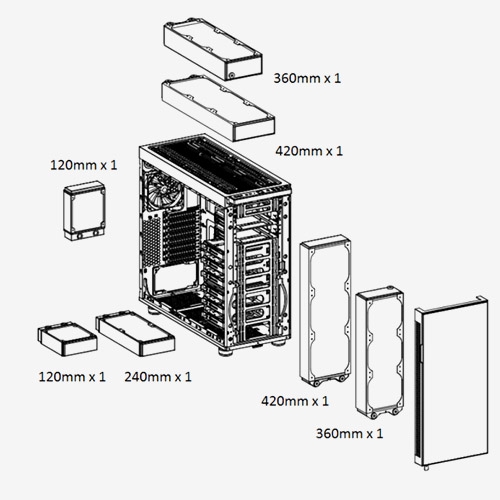

F51 Radiator Supporting List

Radiator Compatibility List
  120
mm		 140
mm		 180
mm		 240
mm		 280
mm		 360
mm		 360mm (180mm based) 420
mm
Front * * * * * * * *
Top * * * * * * * *
Rear * *
Bottom *     *

Water 3.0 Compatibility List
  Ultimate Extreme/ Extreme S Pro Performer/ Performer C
Front
Top * * * *
Rear     * *
Bottom

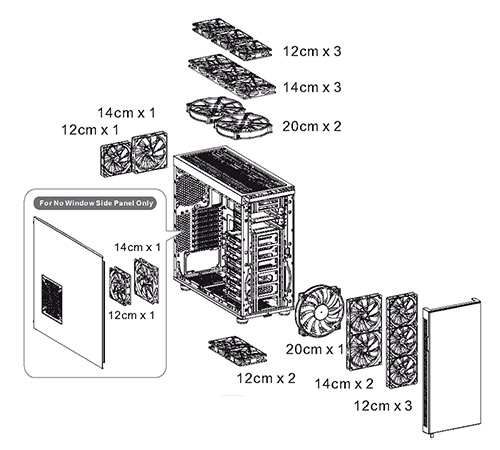

F51 Fan Supporting List

Fan Compatibility List
  120mm 140mm 200mm
Front 3 2 1
Top 3 3 2
Rear 1 1 -
Bottom 2 - -
Side (L/R) 1 1 -

Thermaltake Compatible Fan
  120mm 140mm 200mm
Pure Fan Series * * *
Luna Fan Series * * *
Odin Fan Series * *

Specifications


Model Suppressor F51
P/N CA-1E1-00M1NN-00
Case Type Mid Tower
Dimension (H x W x D) 525 x 230 x 577 mm
(20.6 x 9.1 x 22.7 inch)
Net Weight 12.7 kg / 28 lb
Side Panel No Window
Color Exterior & Interior : Black
Material SPCC
Cooling System Front (intake) :
200 x 200 x 30 mm fan (600~800rpm,13~15dBA)
Rear (exhaust) :
140 x 140 x 25 mm Turbo fan (1000rpm, 16dBA)
Drive Bays -Accessible : 2 x 5.25
-Hidden : 6 x 3.5 or 2.5 (HDD Cage)
Expansion Slots 8
Motherboards 6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX), 12 x 13 (Extend ATX)
I/O Port USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
LCS Upgradable Supports 1/23/81/4 water tube
Fan Support Front:
3 x 120mm
2 x 140mm
1 x 200mm
Top:
3 x 120mm
3 x 140mm
2 x 200mm
Rear:
1 x 120mm or 1 x 140mm
Side:
1 x 120mm or 1 x 140mm
Bottom:
2 x 120mm
Radiator Support Front:
1 x 360mm
1 x 420mm
Top:
1 x 360mm
1 x 420mm
Rear:
1 x 120mm
Bottom:
1 x 240mm
Clearance CPU cooler height limitation:
185mm
VGA length limitation:
310mm(with HDD rack)
465mm(without HDD rack)
PSU length limitation:
220mm (With Bottom Fan)
