All stock codes associated to this product
FJ3088

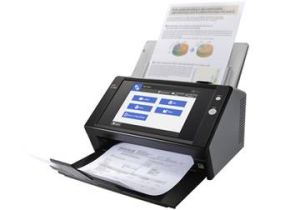

Fujitsu ScanSnap N7100 Network Scanner (A4, Duplex)
25ppm (50 ipm), A4, True Duplex, Ethernet, scan directly to network PCs. 8.4" Touchscreen LCD, for Windows
Network Scanner to maximize businesses efficiency
Withthe functionality of many devices, yet the simplicity of one, the N7100 network scanner contains the qualities organisations of all sizes desire to improve business processes.
Key features
- Fast scanning speeds of 25 pages per minute and true double-sided speeds of 50 images per minute in colour, greyscale or monochrome @ 300 dpi
- 50 page document feeder
- Large 8.4 touch screen high resolution (1,024 x 768 pixels) display

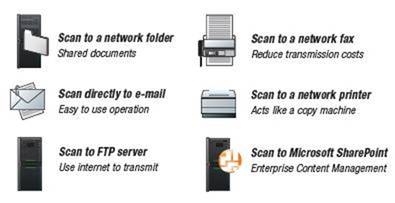

- Scan to e-mail, folder/FTP, network fax or printer or Microsoft SharePoint Server Enterprise features *Limited version support for SharePoint*
- Scanner Central Admin Server software
- Job Menus based on individual user login to control scanning settings and destination(s)
- High security to assist with compliance and regulation
- SDK and optional third-party applications for integration with line of business systems
Description
Network Scanner to maximise businesses efficiency
With the functionality of many devices, yet the simplicity of one, the N7100 network scanner contains the qualities organisations of all sizes desire to improve business processes.
Ideal for Small and Medium Business
- Space saving design
- Multifunction functionality to reduce hardware costs
- Local user accounts
- Quiet operation
- Loaded with intelligent scanning features
- Outstanding price / performance
Features

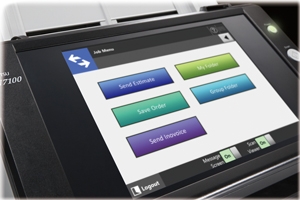

Easy Stand-alone Network Operation with Large Display
A large size screen with integrated on-screen keyboard and PC functions are equipped in this compact network scanner. It can be used in the office or a teller window where space is limited. The user can perform scanning, data saving and transmission without the need to operate from a computer.
Quick scanning speed that supports plastic cards
Scanning speed is consistent at 25 pages per minute (ppm) even when scanning full A4 colour, double-sided, at 300dpi. N7100 is equipped with accurate and stable feeding mechanisms that support scanning from thin paper to thick paper, and plastic cards. Plastic ID cards and application forms can be scanned together easily at a teller window of banks or hospitals.
Less waiting time to achieve stress free scanning
In order for the user not to feel any stress, the image processing after scanning is quick thanks to the enhanced CPU/memory. The time from the start of scanning to the finish including image processing (when the preview of the last scanned page appears) is 50% shorter than the previous model. For regular scanning routines, only one touch of the scan button is necessary which greatly improves the productivity.
High security assuming to be shared by multiple users
The N7100 achieves high security on the premise that it is shared by multiple users. Not only verification before scanning, but also the encryption for paused scans and data deletion after scanning are performed automatically. Users can use the network scanner with peace of mind.
Login authentication strictly controls what people can do with the scanner.
Scanned data can be output as password-protected PDF files.
Advanced security measures guard scanned data from prying eyes.
Encryption
N7100 encrypts and temporarily stores scanned data locally during processing for e-mails, faxes, printing and network storage.
Scanned data deletion
After scanned data has been e-mailed, faxed, printed out or saved to a network folder N7100 automatically deletes the temporarily stored data from its internal memory. Even if an error results in the data remaining in the memory, it is then automatically erased the next time the scanner is started up.
Secure Initialise
When N7100 is initialised, free regions of the internal memory can be overwritten with completely random, meaningless data. As an added security measure, a new cipher key is generated after the user information is deleted. All of this ensures that no trace of old user data can be retrieved from open memory.
Perfect Fit Customised to Your Unique Needs
Administrators can customise the touch panel job menu and scan settings of N7100 to suit the work of a specific user or user group registered to the scanner. The users application can be integrated to the scanner as add-in software using the exclusive SDK (for Windows). N7100 comes with an open USB port to connect a keyboard or other USB devices (except USB memory). N7100 can be customised to be a terminal exclusively for your operation.
To satisfy the security policy, anti-virus software can be installed as an option to safely expand the functions.
The SDK can be requested via the Fujitsu document scanner website.
High Quality Results Perfectly Suited for OCR
The scanner driver PaperStream IP which supports TWAIN saves the hassle in fine adjusting the document for OCR processes. It automatically converts the images into exceptionally clean images, accelerating OCR even when scanning wrinkled/soiled document or documents with a background.

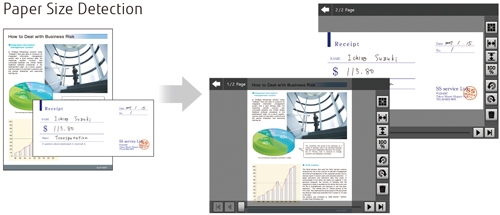

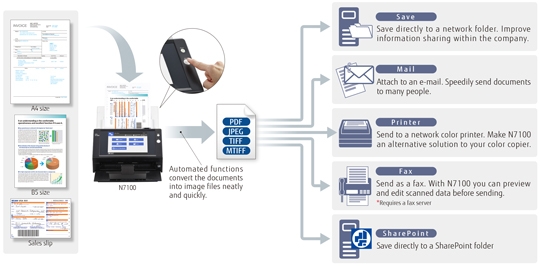

Automated functions take the work out of scanning
Advanced automated functions ensure N7100 digitises your documents with remarkable precision and efficiency. Produce beautiful scans quickly with barely the need to lift a finger.
| Auto Orientation |
Colour Detection |
| Auto Deskew |
Paper Size Detection |
| Blank Page Removal |
Marker Index * |
Versatile range of use from SOHO to large enterprises
Connects with a variety of server types
N7100 easily satisfies the digitising needs of small office networks which use a file server and e-mail server. It is also right at home with more complex LDAP/LDAPS authentication-based networks, integrated with Microsoft Exchange Server, SharePoint and other application hubs.

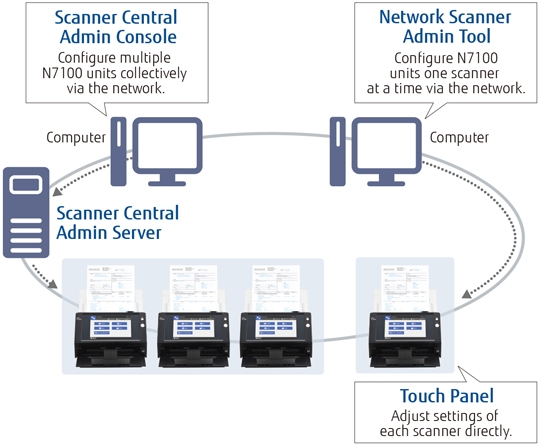

Set up and manage multiple N7100 scanners at one time
N7100 offers administration functions that allow you to individually or collectively setup and manage a vast network of N7100 units with ease from a single console.
Network Scanner Admin Tool
The Admin Tool function allows you to adjust running environment settings one scanner at a time.
Scanner Central Admin Console/Scanner Central Admin Server
Collectively monitor and manage scanner usage, settings and much more for multiple N7100 units through the Scanner Central Admin Server function.
1. Time to scan 10 A4 sheets in colour. Time from pressing the "scan" button until the completion of image processing (preview image of the last page appears) is 50% shorter compared to the predecessor N1800 (52 seconds reduced to 24 seconds) Output resolution: 200dpi, Output file format: Multi-TIFF Image Processing: Auto colour detection, Automatic page size detection, Rotation, Blank page skip, Multifeed detection
2. Only standard keyboard with layout of 109(Japanese) and 102(English) are supported. When using with other USB devices such as IC card reader, development of Add-in application using Network Scanner Control SDK (request via Fujitsu document scanner website) is necessary.
Specifications
| Model |
ScanSnap N7100 |
| Functional Specifications |
| Scanning Technology |
Colour CIS x 2 (front x 1, back x 1) |
| Scanning Mode |
Colour, greyscale, monochrome, automatic (colour / greyscale / monochrome detection) |
| Document Feeding Mode |
ADF |
| ADF Capacity |
50 pages |
| Document Size |
ADF minimum: |
50.8mm x 50.8mm |
| ADF maximum: |
A4 up to A3 via carrier sheet |
| Expected daily volume |
Up to 400 pages |
| Scanning Speeds (200 or 300 dpi, Colour, Greyscale and Monochrome) |
| Output |
Simplex |
Duplex |
| A4 Portrait |
25ppm |
50ipm |
| Security |
User authentication: Active Directory or Open LDAP(for Solaris or Linux), Standalone authentication
Folder authentication: Active Directory or Open LDAP(for Solaris or Linux) |
| User interface |
8.4 inch XGA (1024 x 768) TFT Colour Monitor
Analog Resistive Touch Panel
On-screen keyboard |
| Network |
Interfaces |
10Base-T, 100Base-TX, 1000 BASE-T |
| Protocols |
TCP/IP(IPv4 / IPv6), DNS, DHCP, SMTP, SMB, LDAP, NTP, FTP, HTTP, SNMP |
| Physical Specifications |
| Dimensions (Width x Depth x Height) |
300mm x 232mm x172mm |
| Weight |
6kg |
| Power Requirement |
100-240 10%, 50/60Hz VAC |
| Power Consumption |
Operating mode: 38W or less. Sleep mode: 2.0W or less. Auto Standby (off) mode: 1.0W or less. |
| Operating Temperature |
5-35 C |
| Humidity (operating) |
20-80% RH (non-condensing) |
| Environmental compatibility |
ENERGY STAR / RoHS |
