All stock codes associated to this product
CO9050012WW(PWMSP120TPQE), CO-9050012-WW(PWM-SP120TP-QE)

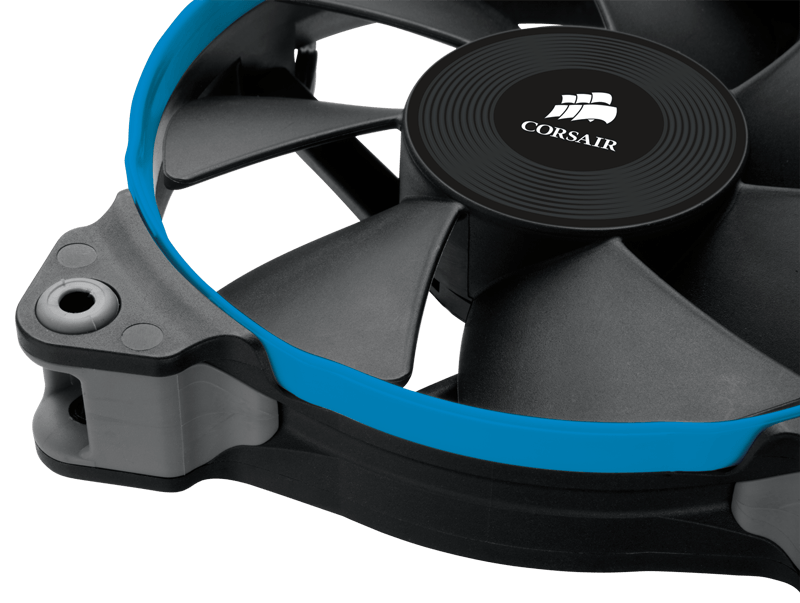

Air Series SP120 PWM Quiet Edition High Static Pressure Fan Twin Pack
CO-9050012-WW
Overview
Efficient, low-noise heatsink and radiator cooling with PWM
control
The wide body, low-pitch blades of the SP120 fans combined with the custom
housing provides outstanding static pressure and airflow through heatsinks or
radiators. With rubberized corners, a quiet and reliable Advanced Hydraulic
Bearing, and PWM support for increased fan speed control, the SP120 truly is the
strong, silent type.
Included in the box are the three user-replaceable colored rings, in red,
blue, and white, so you can customize your fan to match your cases components.
Each fan also features blacked-out wires and connectors, so your build looks
elegant and clean when done.
Features
- Outstanding static pressure of up to 1.29 mmH20
- 4-PIN PWM Support for increased fan speed control
- Seven wide body, low-pitch custom blades for optimal static pressure at
very low noise levels
- Custom fan enclosure for ducting air in the right direction with minimal
interference
- Advanced hydraulic bearing for reliable, quiet operation
- Rubberized corners for sound damping when installed with standard screws
- Replaceable colored rings so you can match your fans to your
case
Performance
|
SP120 PWM High Performance Edition |
SP120 PWM Quiet Edition |
| Size |
120mm x 25mm |
| Operating Voltage |
7V - 12V |
|
Performance at 12V |
| Airflow |
62.74 CFM |
37.85 CFM |
| Static Pressure |
3.1 mmH20 |
1.29 mmH20 |
| Sound Level |
35 dBA |
23 dBA |
| Speed |
2350 RPM |
1450 RPM |
| Power Draw |
0.18 A |
0.08 A |
Contents and Specifications
Package contents

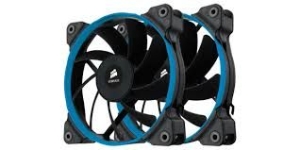

Two SP120 PWM Quiet Edition Airflow Fans
Three colored rings in red, blue, and white
Mounting Screws
System requirements
Motherboard with an open standard 3-pin fan connector
Technical Specifications
Warranty: Two years
Fan Size: 120mm x 25mm
Fan Type: Quiet Edition
Flow Type: Static Pressure
Operating Voltage: 7V 12V
Airflow: 37.85 CFM
Static Pressure: 1.29 mmH20
Sound Level: 23 dBA
Speed: 1450 RPM
Power Draw: 0.08
A
