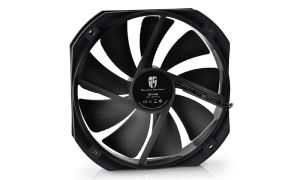

Furious Gaming Silent GF140!
GF140
Design
Made For Silence

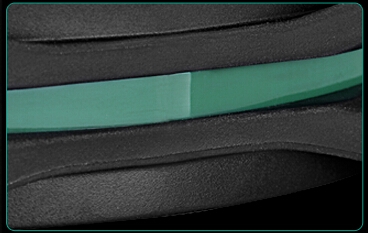

De-Vibration TPE Cover
TPE stands for Thermoplastic Polyurethane Elastomer, which is a kind of soft and elastic material. Other than normal fans, GF140’s plastic frame is wrapped by a TPE layer. This layer can absorb de-vibration to a great extent, hence, GF140 runs quietly.

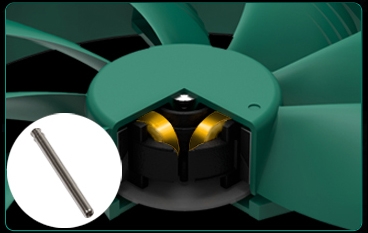

Excellent Dynamic Balance with a Brass Bearing Stand
To ensure the firmness of both the fan blades and the bearing structure, GF140 includes a brass bearing stand to hole everything firmly in position. This mechanism ensures an excellent dynamic balance of the fan to the optimum.

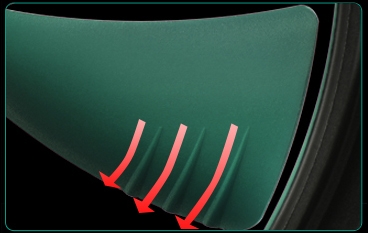

Optimized Airflow with AACC Technology
Especially design blades adopt the AACC(Airflow Auto-Control Channel) technology so as to push the air out without any vortex. Fan noise is also kept at the minimum due to the air flows out smoothly.

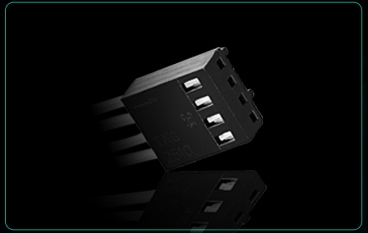

PWM Function for Speed-Silence Balance
GF140 has a 4-pin PWM connector, which allows the fan speed lower down when the system is getting idle.

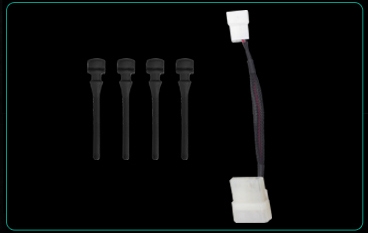

Rubber Screw Installation
Four pieces of rubber screws are included for the fan installation. These rubber screws can absorb vibration to the maximum so as to avoid the noise made by normal metal screws.
Made For Durability
Made For Durability

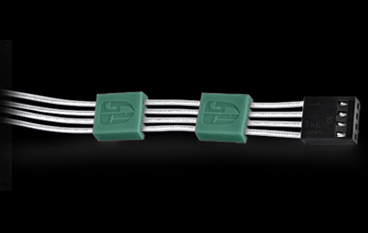

The fan cable is made of PTFE(Poly Tetra Fluoro Ethylene), which withstands high temperature and heavy duty usage to ensure a long lifespan. Two pieces of rubber cable ties are attached to route the fan cable to make everything in place.

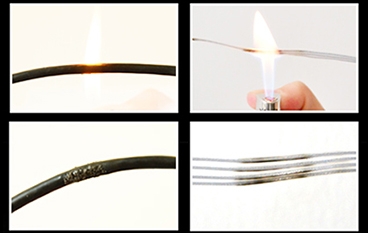

Fire Resistant
The PTFE fan cable is resistant to fire. This adds to your system’s safety grade.
Features
GF 140s plastic frame is wrapped by a TPE layer, which can absorb de-vibration to a great extent
GF 140 includes a brass bearing stand to hole everything firmly in position, which ensures an excellent dynamic balance of the
Especially design blades adopt the AACC(Airflow Auto-Control Channel) technology so as to push the air out without any vortex
GF140 has a 4-pin PWM connector, which allows the fan speed lower down when the system is getting idle
Four rubber buckles are used for the installation, which not only makes the installation quite easy but also absorbs vibration to the maximum so as to avoid the noise made by normal metal screws
The fan cable is made of PTFE(Poly Tetra Fluoro Ethylene), which withstands high temperature and heavy duty usage to ensure a long lifespan
Two pieces of rubber cable ties are attached to route the fan cable to make everything in place.
Application For
Computer case cooling
Power supply cooling
Technical Spec
| Overall Dimension |
|
Net Weight |
|
Bearing Type |
|
Rated Voltage |
| 140X26mm |
|
179g |
|
Hydro Bearing |
|
12VDC |
| Operating Voltage |
|
Started Voltage |
|
Rated Current |
|
Power Input |
| 10.813.2VDC |
|
7VDC |
|
0.110%A(MAX) |
|
1.2W |
| Fan Speed |
|
Max. Air Flow |
|
Noise |
|
| 700200~120010%RPM |
|
71.8CFM |
|
17.6~26.7dB(A) |
