All stock codes associated to this product
CA1E600S1WN00, CA-1E6-00S1WN-00
Overview

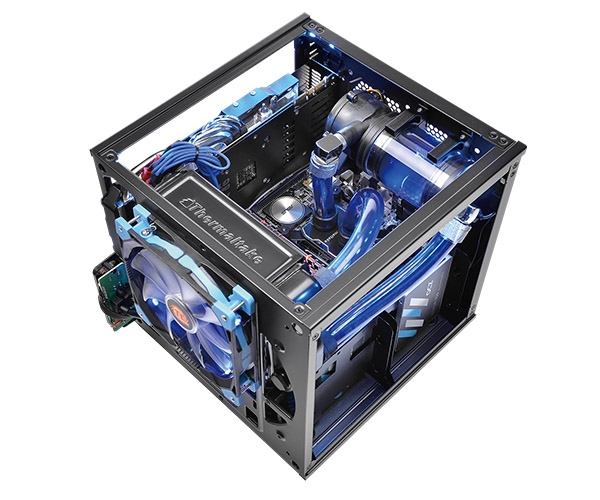

The new Suppressor F1 is an ITX based chassis with a 200mm fan in the brushed
front panel. Smart interchangeable side panels allow users to flip it
accordingly to showcase either for superior liquid cooling or superb airflow,
which allows you to make your own personal setup, having a really powerful mini
system.
Tt LCS Certified is a Thermaltake exclusive certification applied to only
products that pass the design and hardcore enthusiasts standards that a true LCS
chassis should be held to. The Tt LCS certification was created so that we at
Thermaltake can designate to all power users which chassis have been tested to
be best compatible with extreme liquid cooling configurations to ensure you get
the best performance from the best features and fitment.

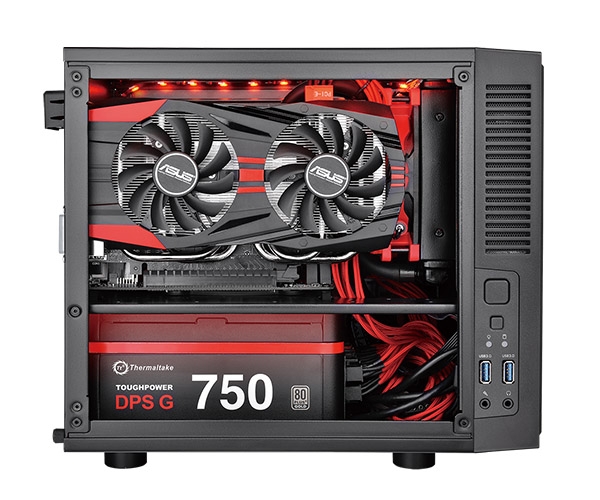

Chamber Design
Suppressor F1 has divided into two main chambers: the upper chamber is made
for cooling performance and efficiency, and the lower chamber is made for PSU
and cable management. With the aid of the removable 2.5”/3.5” drive device
racks, users can enjoy to the freedom of gain the maximum interior space for
advance cooling performance or liquid system build.

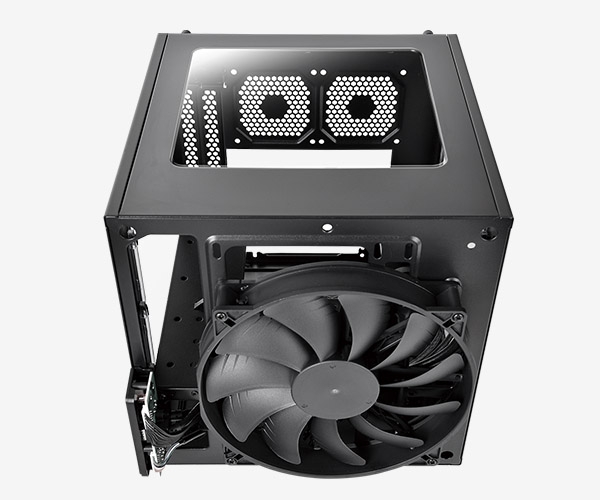

Outstanding Ventilation
With a promising cooling ability, Suppressor F1 has various mounting points
to supports all types of cooling systems that includes DIY/AIO liquid cooling
systems and air cooling units. A large 200mm fan is preinstalled in the front,
along with two optional 80mm turbo fans at the rear, guarantee to hold up any
type of gaming system.

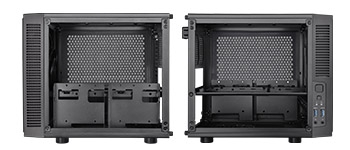

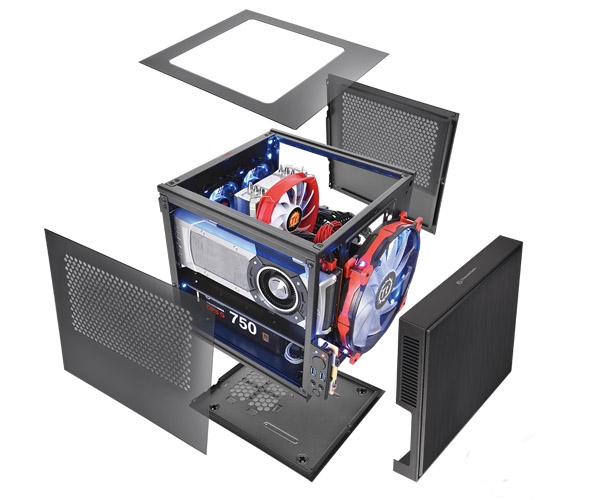

Interchangeable Side Panel
Symmetrical panels allow users to build the system with personality. Play
around the panels accordingly for either the best viewing presentation or
cooling performance. Two magnetic side filters are removable, users can freely
make adjustment. Also, a removable PSU dust filter and adjustable shockproof
rubbers is built with the bottom panel of the chassis to prolong the PSU usage.

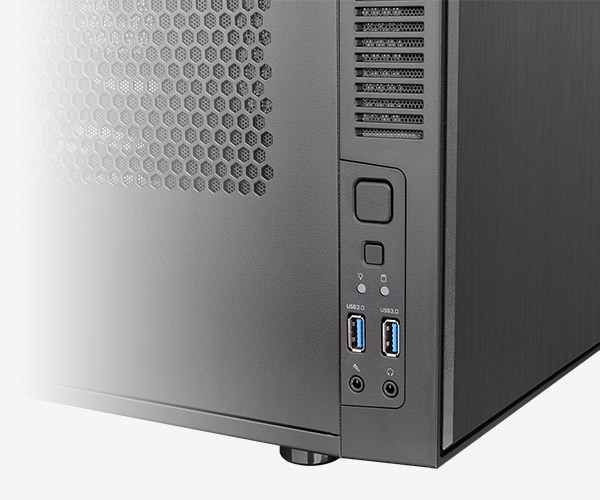

Handy I/O Ports
Design with convenience and cleanness in mind, Suppressor F1 has built in
dual USB 3.0 and HD audio connectors together with the Power and Reset Button on
the side of front panel, which not only keep the panel clean and simple, it also
grants a direct and easy access for external devices.
Great Expansion in Compact Size
Suppressor F1 is designed with high-end gaming system compatibility, gamers
can easily install up to 4 data storage devices with the modular drive racks, a
dual expansion slot VGA with the length up to 255mm, a tower CPU cooler with
height up to 140mm, together with a high wattage PSU of length up to 180mm, and
still offers a 80mm cable management space.

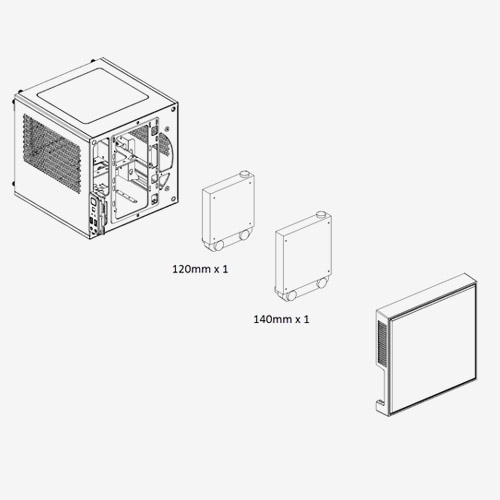

Suppressor F1 Radiator Supporting List
|
Radiator Compatibility List |
?>
|
|
120 |
140 |
|
mm |
mm |
|
Front |
* |
* |
|
Rear |
|
|
|
|
|
|
Water 3.0 Compatibility List |
|
|
Performer |
Pro |
|
Front |
* |
* |
|
Rear |
|
* |

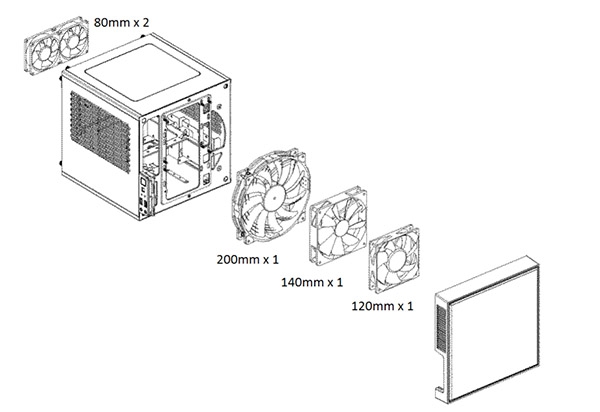

Suppressor F1 Fan Supporting List
|
Fan Compatibility List |
|
|
80mm |
120mm |
140mm |
200mm |
|
Front |
- |
1 |
1 |
1 |
|
Rear |
2 |
- |
- |
- |
|
|
|
|
|
|
Thermaltake Compatible Fan |
|
|
80mm |
120mm |
140mm |
200mm |
|
Pure Fan
Series |
* |
* |
* |
* |
|
Luna Fan
Series |
* |
* |
* |
* |
|
Riing Fan
Series |
- |
* |
* |
- |
Specifications
|
Model |
Suppressor
F1 |
|
P/N |
CA-1E6-00S1WN-00 |
|
Case
Type |
Mini
Case |
|
Dimension (H x W x
D) |
276 x 260 x 319 m (10.9
x 10.2 x 12.6 inch) |
|
Net
Weight |
3.2 kg / 7.1
lb |
|
Side
Panel |
Transparent Window
(Interchangeable) |
|
Color |
Exterior &nterior
: Black |
|
Material |
SPCC |
|
Cooling
System |
Front (intake)
: |
|
200 x 200 x 30 mm fan
(800rpm, 13dBA) |
|
Drive
Bays |
-Hidden : 2 x 3.5 , 2 x
2.5 |
|
Expansion
Slots |
2 |
|
Motherboards |
6.7 x 6.7 (Mini
ITX) |
|
I/O
Port |
USB 3.0 x 2, HD Audio x
1 |
|
PSU |
Standard PS2 PSU
(optional) |
|
Fan
Support |
Front:
|
|
1 x 120mm
or |
|
1 x 140mm
or |
|
1 x 200mm
|
|
Rear:
|
|
2 x
80mm |
|
Radiator
Support |
Front:
|
|
1 x 120mm or
|
|
1 x
140mm |
|
Clearance |
CPU cooler height
limitation: |
|
140mm |
|
VGA length
limitation: |
|
255mm (Inner chassis)
|
|
285mm (Outer
chassis) |
|
PSU length
limitation: |
|
200mm |
