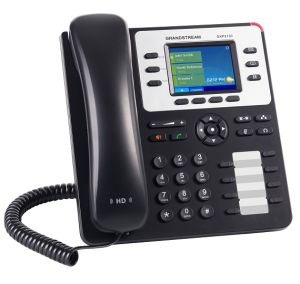

Grandstream GXP2130
HD PoE IP Phone 320x240 Colour LCD, 3 lines, Dual GbE, 4 program keys, EHS
The GXP2130 is a state-of-the-art enterprise grade IP phone that features up to 3 lines, 2.8 inch TFT Color LCD, 4 XML programmable context-sensitive soft keys, 8 programmable BLF extension keys, dual Gigabit network ports, integrated PoE, 4-way voice conferencing, and Electronic Hook Switch (EHS).
The GXP2130 delivers superior HD audio quality on the handset and speakerphone, rich and leading edge telephony features, personalized information and customizable application service, automated provisioning for easy deployment, advanced security protection for privacy, and broad interoperability with most 3rd party SIP devices and leading SIP/NGN/IMS platforms. Ideal for SMBs, enterprises and SOHOs, the GXP2130 is the perfect choice for users looking for a high quality, feature rich IP phone with advanced functionality that is simple to use.
Features
320x240 TFT color LCD
3 dual-color line keys (with 3 SIP accounts), 4 programmable context- sensitive soft keys, up to 4-way conferencing, and 8 dual-color BLF extension keys
Dual switched auto-sensing 10/100/1000Mbps Gigabit network ports, PoE, EHS (Electronic Hook-Switch) with Plantronics headsets
Automated provisioning using TR-069 or AES encrypted XML configuration file, TLS/SRTP/HTTPS for advanced security and privacy protection
Integrated real-time web applications [weather, currency, etc.]
Specifications
Network Interfaces
Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
Graphic Display
2.8 inch (320x240) TFT color LCD
Feature Keys
3 line keys with up to 3 SIP accounts, 8 speed-dial/BLF extension keys with dual-color LED, 4 programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for: MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE,
SEND/REDIAL, SPEAKERPHONE, VOL+, VOL
Voice Codec
Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)
Auxiliary Ports
RJ9 headset jack (allowing EHS with Plantronics headsets)
HD Audio
Yes, both on handset and speakerphone
Base Stand
Yes, allow 2 angle positions
Wall Mountable
Yes
Upgrade/Provisioning
Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file
Power & Green Energy Efficiency
Universal power adapter included: Input: 100-240VAC; Output: +12VDC, 0.5A (6W)
Integrated PoE (Power-over-Ethernet) 802.3af, Class 2
Physical
Dimension: 193mm (W) x 211mm (L) x 85mm (H)
Unit weight: 0.81kg; Package weight: 1.44kg
Temperature and Humidity
0 ~ 40ºC (32 ~ 104ºF ),
10 ~ 90% (non-condensing)
