All stock codes associated to this product
LUCIFERK2, LUCIFER K2, CFDLUCIFERK2A4, CFD-LUCIFERK2A4, 6933412726135

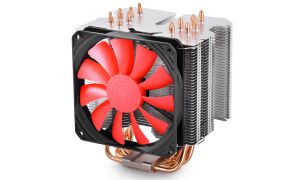

Fanless Optional - Copper Base - 6 Heatpipes - Slim PWM Fan - Deflected Heatpipe Design
Design
Description
Lucifer K2 is a new generation of Lucifer V2, it has preserved some key features from Lucifer V2 of great heat dissipation performance: fanless design, 6 high-performance heatpipes. However,Lucifer K2 has a slightly different in some detail aspects compared with Lucifer V2, features Polished Pure Copper Base and Bundled Silent 20mm Slim Fan. Also,breakthrough has been created for its special designed perfect compatibility of Memory installation.
Perfect Fanless Cooling Design
More than 1,000,000mm² devour heatsink, even the fanless equipment is capable of cooling CPU up to 130W with the help of good airflow channel inside the case.
Perfect Compatibility with Memory Slot
Deflected heatpipe design offers a perfect compatibility of Memory installation, all Memory slots can be used freely.
6 Copper Heatpipes
6 copper heatpipes are firmly stacked into the aluminum fins to conduct the heat quickly.
Polished Pure Copper Base
The copper base with a convex shape to touch CPU closely, the gapless touch accelerates the heat transfer from CPU to the cooler efficiently.
Bundled Silent 20mm Slim Fan with Red impeller & black frame
One 120mmx120mmx20mm slim PWM fan built for a better silent level with good cooling performance.
Features
More than 1,000,000mm² devour heatsink, even the fanless equipment is
capable of cooling CPU up to 130W with the help of good airflow channel
inside the case.
Deflected heatpipe design offers a perfect compatibility of Memory installation, all Memory slots can be used freely.
6 copper heatpipes are firmly stacked into the aluminum fins to conduct the heat quickly.
The copper base with a convex shape to touch CPU closely, the gapless
touch accelerates the heat transfer from CPU to the cooler efficiently.
One 120mmx120mmx20mm slim PWM fan built for a better silent level with good cooling performance.
Application For
Intel Socket 130W
LGA2011-v3/LGA2011/LGA1366/LGA1156/LGA1155/LGA1151/LGA1150/LGA775
High End Desktop i7
Core i7 Extreme/i7/i5/i3
Core 2 Extreme/Quad/Duo
Pentium/Pentium G
Celeron/Celeron G
AMD Socket 125W
FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
APU A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Phenom X4/X3/X2
Athlon II X4/X3/X2
Athlon X4/X2
Athlon
Sempron
Business Class
Technical Spec
|
Overall Dimension |
146.5X131.5X163mm |
|
Heatsink Dimension |
140X110X163mm |
| Fan Dimension |
120X120X20mm |
|
Net Weight |
1047g |
|
Rated Voltage |
12VDC |
|
Operating Voltage |
10.8~13.2VDC |
|
Starting Voltage |
7VDC |
|
Rated Current |
0.21±10%A(MAX) |
|
Power Input |
2.52W |
|
FAN Speed |
600±150-1800±10%RPM |
|
MAX.Air Flow |
61.93CFM |
|
Noise |
18.2~32.4dB(A) |
|
Bearing Type |
Hydro Bearing |

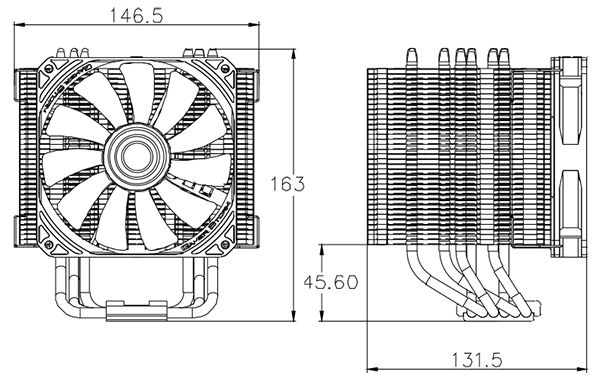

Product Dimension
