All stock codes associated to this product
FDFANDYNGP12BK, FD-FAN-DYN-GP12-BK
InformationFractal Design Dynamic GP-12 and GP-14 are true all-purpose fans, with good airflow in any usage scenario. Their customized design lends to a beautifully aesthetic fan to help keep your system cool, yet quiet.
Designed with leading technology techniques in mind, the Dynamic Series fans feature aerodynamic elements, similarly found in airplane wing designs, with significant noise-reducing elements, resulting in a fantastic price-performance ratio.
The Dynamic Series fans come in two color combinations: all-black and the classic Fractal Design signature color scheme with white blades and black frame.

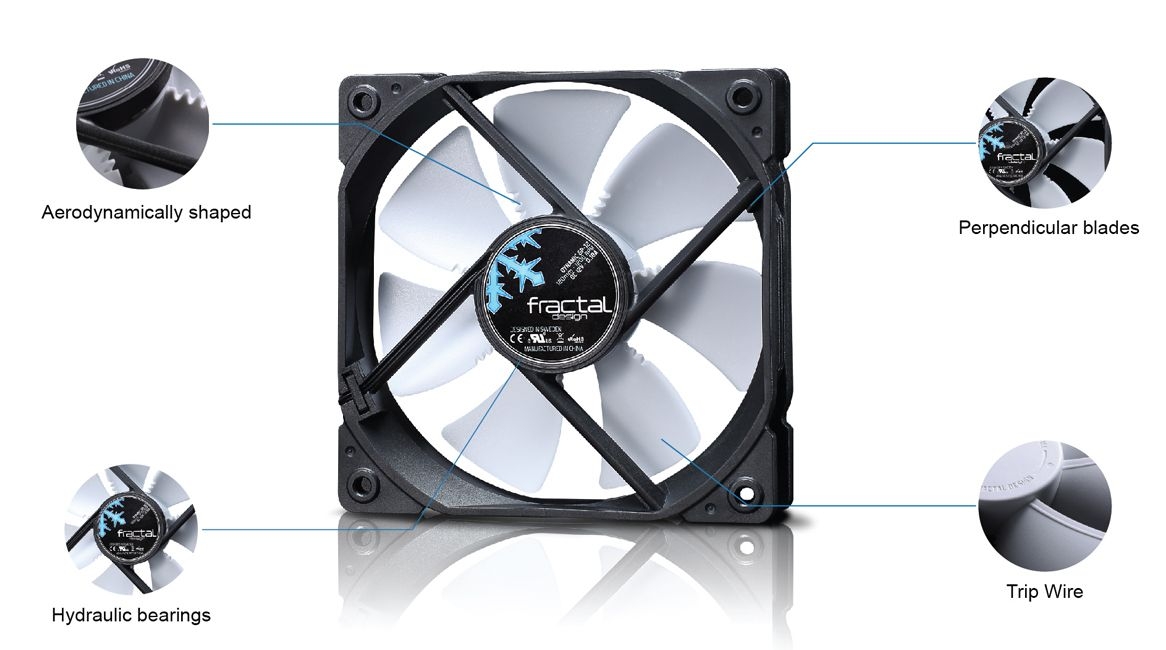

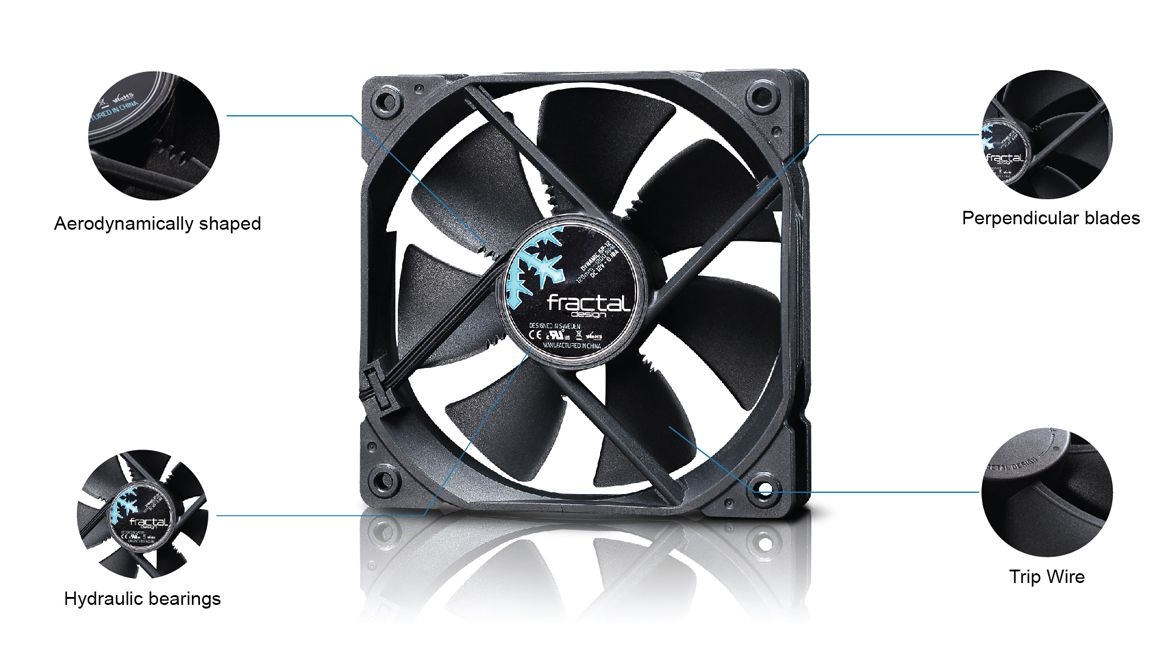

Key features
- Featuring hydraulic bearings; a cost-efficient compromise between a standard sleeve bearing and a true FDB bearing
- Equipped with a counter-balancing magnet in the hub that reduces the
axial tension on the bearing, further protecting the longevity of the
bearing
- Optimized fan geometry for a good balance between static pressure
and maximum airflow, resulting in good performance in all usage
scenarios

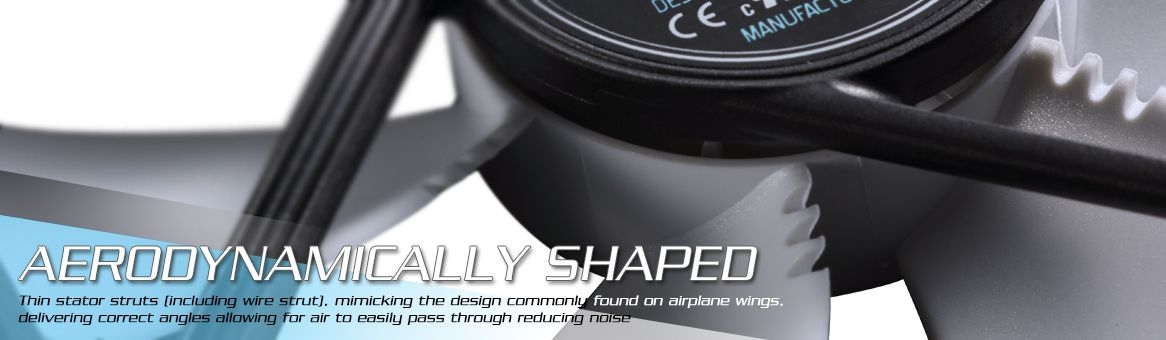

- Aerodynamically shaped thin stator struts (including wire strut),
mimicking the design commonly found on airplane wings, delivering
correct angles allowing for air to easily pass through reducing noise
and unwanted turbulence.
- Stator struts are angled perpendicular to the blades, helping to
reduce noise commonly emitted when the blades pass the struts. In
effect, minimal noise that may be emitted will be constant and therefore
almost inaudible to the ear.
- Strategically placed notches near the fan hub on the trailing edge
of the blades, further reducing and diffusing humming noise produced
when the blades pass the stator struts

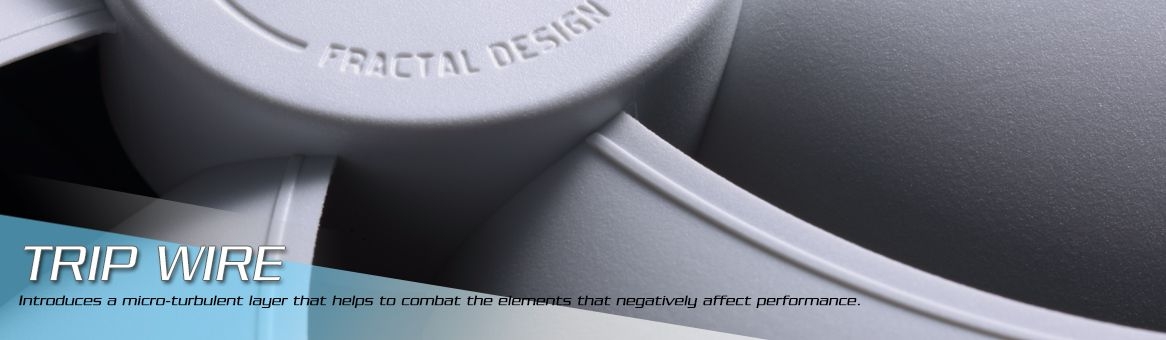

- Includes a "trip wire" on the rear side of the blades, near the
leading edge. The trip wire technology, also commonly found in airplane
wing designs, introduces a micro-turbulent layer that helps to combat
the elements that negatively affect performance. The presence of the
trip wire overall provides a more efficient and quiet fan environment.
- The customized design of the Dynamic Series fans contributes to a beautiful, cool build
- Available in 120mm and 140mm fan sizes
Specifications
|
Fan
|
GP-12
|
GP-14
|
|
Size [mm]
|
120*120*25mm
|
140*140*25mm
|
|
Colors available
|
White blades, black frame
Black blades, black frame
|
White blades, black frame
Black blades, black frame
|
|
Screw hole pattern
|
105*105mm
|
125*125mm
|
|
Connector
|
3-pin fan header
|
3-pin fan header
|
|
Bearing
|
Hydraulic
|
Hydraulic
|
|
Number of blades
|
7
|
7
|
|
Rotational speed [RPM]
|
1200
|
1000
|
|
Acoustical noise [dB (A)]
|
19.4
|
18.9
|
|
Maximum air flow [CFM]
|
52.3
|
68.4
|
|
Maximum pressure [mm H2O]
|
0.88
|
0.71
|
|
Actual input power [W]
|
1.44
|
1.7
|
|
Maximum rated input current [A]
|
0.18
|
0.20
|
|
Nominal input voltage [V]
|
12
|
12
|
|
Minimum startup voltage [V]
|
4
|
4
|
|
MTBF [hours]
|
40,000
|
40,000
|
|
Unit weight [g]
|
119
|
142
|
|
Package weight [g]
|
160
|
190
|
|
Cable length [mm]
|
500
|
500
|
|
Cable type
|
Black ribbon cable
|
Black ribbon cable
|
|
Packaging dimensions [mm]
( Including hanging tab)
|
180*122*26
|
200*142*26
|
|
Packaging dimensions [mm]
(Excluding hanging tab )
|
147*122*26
|
167*142*26 |
Package contents
Dynamic Series fan
Screw pack with 4 metal fan screws
