CoolerMaster N300 Midi-Tower Case - Coolermaster 700W PSU Bundle, Midnight Black
  • 1xUSB3.0, 2xUSB2.0 1xHD-Audio, 120mm Fan, Polymer, Mesh Front Bezel, ATX

IMG 1 of 1
Not for individual purchase
or quickly purchase this product
Backorder
(?) Brand:
CoolerMaster Web Site
Manuf No:
TBB4372978982
Shipping:
Free Shipping
Details Files Images & Video
All stock codes associated to this product
, TBB4372978982
N300

NSE-300-KKN1

Introduction

The new Cooler Master N300 is a mid-tower designed for optimum cooling. There are four models to choose from by single / dual USB 3.0 support and side panel window. To keep constant cooling, the front panel is fully covered by mesh, and thanks to the SickleFlow fans, N300 generates extreme high airflow and keep silence for long-time operation. If you prefer liquid cooling solutions, installing 240mm or 120mm radiators in N300 won't be a problem as well. The 240mm radiator can be installed at the top or on the right side, and the 120mm one - in the rear. Additionally, N300 supports up to 8 HDDs and high-end graphics cards up to 320mm / 12.6 inch for a plenty of expansion.

Features

  • Full mesh on the front panel
  • Supportsa 240mm liquid cooling radiator or two 120mm fans on the right side / at the top
  • Supports a 120mm liquid cooling radiator in the rear
  • Supports high-end graphics cards up to 320mm / 12.6 inch, including NVIDIA GTX 690 &AMD HD 7990
  • Supports up to 8 HDDs (2 tool-less)
  • Dust filter under the PSU for easy maintenance
  • Accessible power switch button with blue LED illuminated when the power is on
  • Super Speed USB 3.0 Support (KKN1 / KWN1); Dual USB 3.0 Support (KKN2/ KWN2)
  • Includestwo SickleFlow 120mm fans arranged for optimum airflow in the front and rearwith support for up to 8 fans (KKN1) / 7 fans (KWN1)
  • Includes one SickleFlow 120mm fan (no LED) in the rear for optimum airflow with support for up to8 fans (KKN2) / 7 fans (KWN2)
  • Large side panel window (KWN1 / KWN2)
  • Caninstall one optional 120/140mm fan on the left side panel to cool the graphics cards (KKN1 / KKN2)


Specifications:

Available Color Midnight Black

Material Polymer, mesh front bezel

Dimension (W / H / D) 190 x 426 x 491.5 mm / 7.5 x 16.7 x 19.3 inch

Weight 5.2 kg / 11.5 lbs

M/B Type microATX, ATX

5.25" Drive Bay 2 (exposed)

3.5" Drive Bay 1 (exposed), 7 (hidden)

I/O Panel KKN1 / KWN1: USB 3.0 x 1 (int.), USB 2.0 x 2, Mic x 1, Audio x 1 (supports AC97 / HD Audio)
KKN2 / KWN2: USB 3.0 x 2 (int.), Mic x 1, Audio x 1 (supports AC97 / HD Audio)

Expansion Slots 7

Cooling System Top: 120mm fan x 2 (optional)
Front (KKN1 / KWN1): 120mm fan x 2 (one SickleFlow fan installed, one optional); or 140mm fan x 1 (optional)
Front (KKN2 / KWN2): 120mm fan x 2 or 140mm fan x 1 (optional)
Rear: 120mm SickleFlow fan x 1 (installed)
Left Side: 120/140mm fan x 2 (for KKN1 / KKN2 only)
Right side: 120mm fan x 2 (optional)

Power Supply Standard ATX PS2

2.5"/3.5"- SATA HDD Drive Bay 1 (hidden)

Maximum Compatibility VGA card length: 320 mm / 12.6 inch
CPU cooler height: 164mm / 6.4 inch

This bundle is comprised of the following products:

4335791 x CoolerMaster 700W MasterWatt Power Supply - ATX12V/V2.31

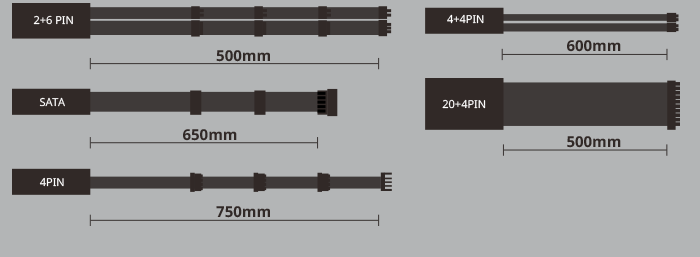

M/B 20+4-Pin(1), CPU12V 4+4-Pin(1), SATA(6), PCI-E 6+2-Pin(4), 4-Pin Peripheral(3), FDD Cable 4-Pin(1)
4341351 x CoolerMaster N300 Midi-Tower Case - NO PSU, Midnight Black
CoolerMaster 700W MasterWatt Power Supply - ATX12V/V2.31 M/B 20+4-Pin(1), CPU12V 4+4-Pin(1), SATA(6), PCI-E 6+2-Pin(4), 4-Pin Peripheral(3), FDD Cable 4-Pin(1)

CoolerMaster 700W MasterWatt Power Supply - ATX12V/V2.31
  • M/B 20+4-Pin(1), CPU12V 4+4-Pin(1), SATA(6), PCI-E 6+2-Pin(4), 4-Pin Peripheral(3), FDD Cable 4-Pin(1)

back to top

Product Description:

CoolerMaster CM-PSU-MPX-7001-ACABW-AU MasterWatt Lite 700W Power Supply



Overview

Lighten the Load

Power on. We want the MasterWatt Lite Series to be that simple. In the box are all the essentials of a reliable engine so you don't have to think about it. We added higher-end perks like Active PFC and PWM technology for more stability, and made sure we met ErP 2013 and CE ratings for safety and low energy impact. It's the survival kit for reliable, affordable power.

Advanced Circuit Design

Active PFC + PWM combined with dual forward topology and double EMI filter enhances power output efficiency and increases the performance and stability of your system

Silent and Durable Fan

Cooler Master's 120mm HDB temperature control fan can operate more smoothly without friction, which makes it quiet and more durable.

Green Power

Compliant with ErP 2013 Lot6, which guarantees that your PSU will use less than 0.5W on system standby and lower than 45% transferring efficiency on 5V standby.

Safety Guardian

Full protection (OCP/OVP/SCP/OPP) with built-in Over Temperature Protection (OTP). Minimizes the risk of damage from power outages.

Specifications

Product Name

MasterWatt Lite 230V (ErP 2013) 700W - Green power supply with ErP 2013 certified

ATX Version

ATX 12V V2.31

PFC

Active PFC

Input Voltage

200-240Vac

Input Current

3.5-5A

Input Frequency

47-63Hz

Dimensions (LxWxH)

150mm x 140mm x 86mm

Fan Type

Silent 120mm HDB fan

PowerGood Signal

100-500 ms

Hold Up Time

>10ms at 100% full load@230Vac

Efficiency

85% Typically

MTBF

>100,000 hours

Protections

OCP / OVP / OPP / OTP / SCP / UVP

Operating Temperature

0~40°C

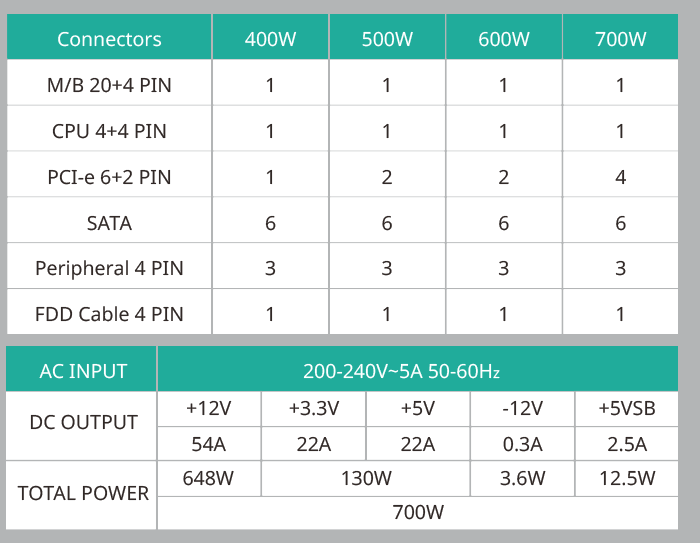

Connectors

MB 20+4 Pin

1

CPU 12V 4+4Pin

1

SATA

6

Peripheral 4 Pin

3

FDD Cable 4 Pin

1

PCI-e 6+2 Pin

4

Regulatory

TUV, CE, BSMI, FCC, cTUV-Rhus, KC, CCC, EAC, RCM, CB

CoolerMaster N300 Midi-Tower Case - NO PSU, Midnight Black

CoolerMaster N300 Midi-Tower Case - NO PSU, Midnight Black

back to top

Product Description:

The new Cooler Master N300 is a mid-tower designed for optimum cooling. There are four models to choose from by single / dual USB 3.0 support and side panel window. To keep constant cooling, the front panel is fully covered by mesh, and thanks to the SickleFlow fans, N300 generates extreme high airflow and keep silence for long-time operation. If you prefer liquid cooling solutions, installing 240mm or 120mm radiators in N300 won't be a problem as well. The 240mm radiator can be installed at the top or on the right side, and the 120mm one - in the rear. Additionally, N300 supports up to 8 HDDs and high-end graphics cards up to 320mm / 12.6 inch for a plenty of expansion.

Basic
Brand Name:Cooler Master
Colour:Midnight Black
Form Factor:Mid-tower
Material:Polymer
Motherboard Supported:µATX
Number of External 3.5" Bays:1
Number of External 5.25" Bays:2
Number of Internal 3.5" Bays:7
Number of Power Supplies Supported:1
Number of Total Expansion Bays:9
Product Family:N
Product Type:Computer Case
Bays
Number of External 3.5" Bays:1
Number of External 5.25" Bays:2
Number of Internal 2.5" Bays:11
Number of Internal 3.5" Bays:7
Number of Total Expansion Bays:9
General Information
Brand Name:Cooler Master
Manufacturer Website Address:https://www.coolermaster.com
Manufacturer:Cooler Master Co., Ltd
Product Model:N300
Product Name:N300 System Cabinet
Product Series:N
Product Type:Computer Case
I/O Expansions
Number of Total Expansion Slots:7
Interfaces/Ports
Total Number of Audio In Ports:1
Total Number of Audio Out Ports:1
Total Number of USB Ports:3
Physical Characteristics
Colour:Midnight Black
Depth:491.5 mm
Form Factor:Mid-tower
Height:426 mm
Material:Polymer
Weight (Approximate):5.20 kg
Width:190 mm
Power Description
Number of Power Supplies Supported:1
Technical Information
Fan Size Supported:120 mm
Installed Fan Size:120 mm
Motherboard Supported:µATX
Number of Fans Installed:2
Number of Fans Supported:8


No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
