All stock codes associated to this product
SSTRVX01BVW, SST-RVX01BV-W
RVX01

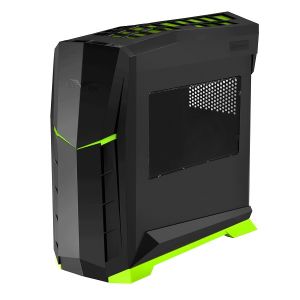

RVX01 Introduction
After completing the evolutionary RAVEN RV05 with 5.25” drive bay design completely removed, the RAVEN team created another forward thinking line of cases with the introduction of the “RAVEN X” subcategory. This line will not only retain the essence of what made the original RAVEN series great with features such as signature aggressive styling and 90 degree rotated layout, but also cater to enthusiasts looking for more exciting designs in an entry-level price point. With the smallest ever footprint for a ATX RAVEN tower case, the RVX01 has remarkably accommodating interior that can easily fit large ATX motherboards up to 12” x 11”, full size graphics card, four 2.5”/3.5” drives, and spaces for up to three radiators. From the factory, the case will come fully equipped with three of SilverStone’s famed Air Penetrator fans for class-leading thermal performance and easy to reach filter for easy maintenance. If you are looking to build an attractive, relatively compact and powerful PC on a budget, the RVX01’s combination of high affordability, top-level cooling ability, and flexible layout will fulfill the task beautifully.
- Signature RAVEN styling touches
- 90 degree motherboard mounting from legendary RAVEN RV01
- Three 120mm Air Penetrator fans included for sublime vertical air cooling
- Positive pressure design for excellent cooling/quietness and dust-prevention
- Quick access filter for convenient maintenance
- Support up to three sets of liquid cooling radiators
RVX01 Feature list
Top-mounted I/O ports include microphone, audio and two USB 3.0 ports
Revolutionary 90 degrees motherboard mounting enables stack effect for natural heat convection
Front 120mm fan slot
Signature RAVEN styling touches
Side plate can mount two 2.5” or 3.5” drives
Three 120mm Air Penetrator fans included for sublime vertical air cooling
Top 120mm fan slot completes overall airflow and supports AIO liquid cooler
Independent PSU intake vent prevents waste heat circulation
Supports large ATX motherboards up to 12” x 11”
Supports two 2.5"/3.5" drive bays
Positive air pressure design with rear-accessible main filter for class leading dust reduction
RVX01 Specifications
Model No.
SST-RVX01BR (black with red trim)
SST-RVX01BR-W (black with red trim + window)
SST-RVX01BA-W (black with blue trim + window)
SST-RVX01BV-W (black with green trim + window)
Material
Plastic outer shell, steel body
Motherboard
Drive Bay
External
None
Internal
2.5”x 4 or 3.5”x 4
Cooling System
Front
120mm fan slot x 1
Top
120mm fan slot x 1
Bottom
120mm Air Penetrator x 3, 1200±10% rpm, 19.7dBA
Expansion Slot
7
Front I/O Port
USB 3.0 x 2
audio x 1
MIC x 1
Power Supply
Expansion Card
Compatible up to 13.7”, width restriction * - 4.92”~5.91”
Limitation of CPU cooler
162mm or 159mm (window)
Dimension
215mm (W) x 485mm (H) x 500mm (D) , 52.1 liters
Depending on installed drives
