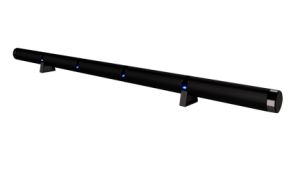

The Condor is a 48-inch wide
multi-microphone array with a pickup range of up to thirty feet. It also
features a built-in SIP phone, which can be controlled using a
dedicated application that runs on your smart device. Created with the
goal of decluttering conference rooms, the Condor sits above or below
your monitor, eliminating cumbersome devices and wires from the
conference table. It can easily connect to any video conferencing
system, and use any type of loudspeakers, including external sound bars
or your monitor’s internal speakers.
The Condor will completely change the look and dynamics of conference rooms.
Highly directional, 48-inch aperture,
15-microphone array
Seven fixed-direction directional beams with Constant Beamwidth design
Pickup range up to 30 feet with optimal
recommended range of up to 25 feet
Angular reception – 180 degrees
Algorithms: DSP based noise canceling, echo canceling. AGC, De-reverb
100% full duplex
Digital interface using USB telephony
protocol
Analog interface for use with Analog Codecs
Built-in IP phone (SIP)
Automatic bridging between the IP phone and USB communication
Includes:
USB cable
5V power supply
2 wall mounting brackets and 2 stands
Installations
The Condor comes with two installation
Options:
Wall mounting; the Condor comes with two wall mounting brackets
Stands; two stands are provided to placing the Condor on a flat surface
Performance Parameters
Frequency response: 50Hz – 16KHz
Noise Suppression: >15dB – no pumping noise
Echo Canceling: >40dB with conversion rate >40dB/sec
Residual echo suppressed to environment noise level preventing artificial ducking
Low latency – 10Msec
Power consumption – 500mAmp (from USB or POE)
Supported Codecs:
G.711 (A-law and Mu-law)
G.729A (Annex B)
G.722
G.723
Dimensions
2.5” diameter, 48” long. Weight: 3.35 lbs
The Condor is housed in a metal tube; the outer shell is metal for sturdiness and
durability.
VoIP and Signaling
SIP –RFC 3261, SDP – RFC 2327 SIP over
TCP/UDP, Redundancy, Digest
Authentication, PRACK, Early Media
Data Protocols
IPv4, TCP, UDP, ICMP, ARP, RTP, SRTP,
Static IP/DHCP IP Assignment, IEEE 802.1p/Q,
HTTP/HTTPS/DHCP,NTP, FTP/TFTP
Software
Plug-and-Play - No installation or additional drivers required
Audio Setup Utility is available for Windows.
Recording utility is available for Windows.
Recording utility allows you to record
conversations to your computer via the device.
Operating systems: Windows 98 and up / Linux / MacOS.
Accessories
USB cable
5V power supply
2 wall mounting brackets and 2 stands
Warranty
Two Years.
Provisioning and Management
Web Server for Configuration and Management, Configuration update via FTP, TFTP, HTTP, HTTPS, DHCP Options (66, 67, 160, 12, 77, 42)
Light indications
There are four light sources across the Condor, each includes blue and red LEDs. The red will be flashing when the unit is muted; the blue will indicate the direction of reception. They will also be used to indicate other activities like power up, programing, IP search, and so on.
Software and Controls
The Condor will be identified and selected as the default device on any Windows
application. You may have to select it as your default device for MAC OS.
The IP phone (SIP) is set up using a web based GUI that can be logged in from any device sitting on the same network as the Condor.
Phoenix offers a few software control and support utilities on its website. These
include recording software, test wizard, and maybe the most important – an audio setup utility. You can control the Condor’s
microphone and speaker volume using this utility. These volumes can be controlled
separately for signals coming through the SIP link or the USB link.
Dialing – using the Condor as your
conference phone requires a dialer. The
dialing is done through a software
application running on a device that is
connected to the same network. Two major platforms on which this application is
available are Windows and IOS. The dialing application allows you to associate the app with a particular Condor (on your network), dial out, take calls in, call from your personal contact list, use the company’s contact list, mute the unit, and more. Check our website for additional platforms on which the
application is available.
Power
USB Power
PoE
Mobile Phones
Apple iPhone
