All stock codes associated to this product
CLF043PL14SWB, CL-F043-PL14SW-B
Overview

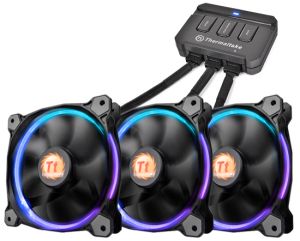

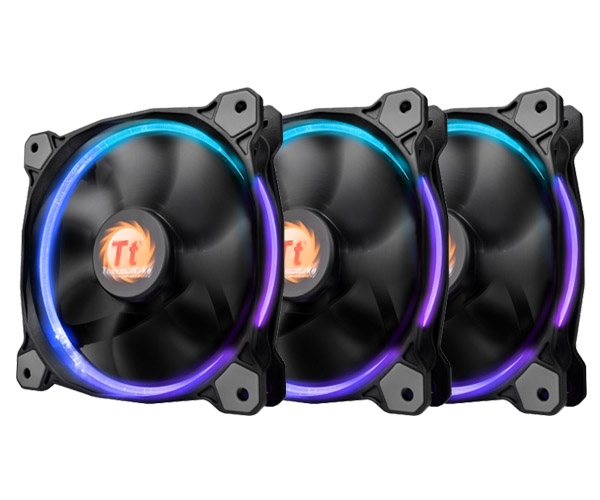

Riing 14 LED RGB 256 Colors High Static Pressure LED Radiator Fan (3
Fan Pack)
The latest Riing RGB Series fan introduced by Thermaltake is a patented
circular 256 multi-colored 140mm radiator fan. Users can freely adjust fan speed
as well as fan colors by clicking MODE, PLAY/PAUSE, and SPEED button on the fan
controller. The fan blades are optimized to enhance static pressure for an
impressive cooling performance. Hydraulic bearings for silent operation
guarantee ultra-low noise, and the anti-vibration mounting system strengthens
the products stability during operation. The color and brightness uniformity of
the multicolored LED ring is visible from all directions and adds style to the
chassis.
Taiwan Patent : M498806
China
Patent : CN204498539U
US
Application Patent : US9,506,663
Tt LCS Certified is the hallmark that ensures first-class performance from
the best features and fitment. A certification exclusive to Thermaltake, it sets
the benchmark for all true LCS chassis and is applied only to products that meet
our stringent design standards for delivering what hardcore enthusiasts demand.
The Tt LCS certification is a way for Thermaltake to designate to all power
users the chassis which have been tested for best compatibility with extreme
liquid cooling configurations.

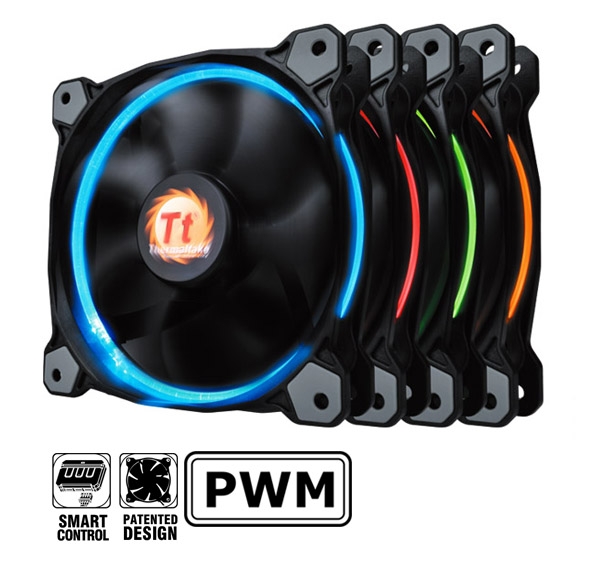

Patented Design

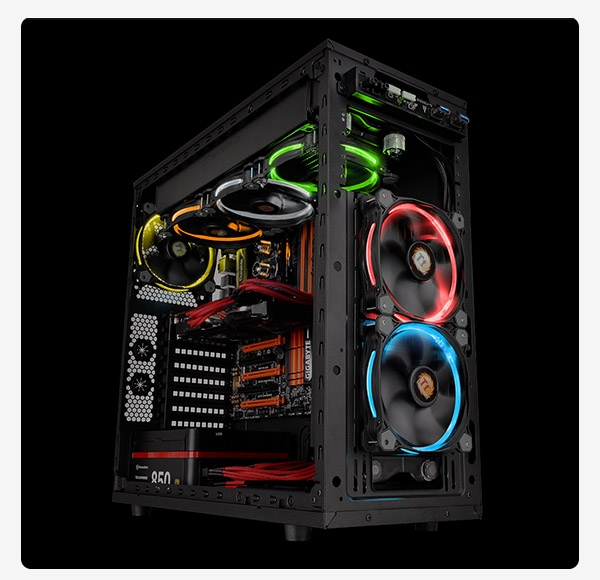

The color and brightness uniformity of the Patented LED ring is visible from
all directions and adds style to the chassis.
Taiwan Patent : M498806 China Patent application : 201520171389.6 US Patent
application : 14/702,806

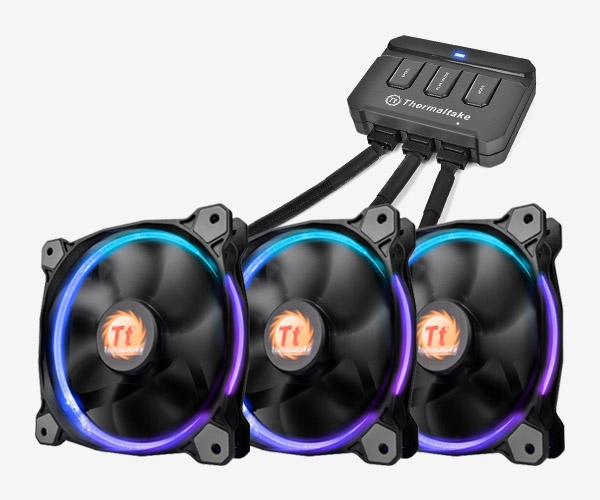

Smart Fan Controller
A self-contained fan controller can switch between 5 LED modes including
solid colors of red, blue, white, green or disable and cycle through 256 colors.
Play/Pause functions allow users to cycle colors (color remains unchanged even
after the PC has been turned off or rebooted) with speed control options reduce
noise even more all from your fingertips.

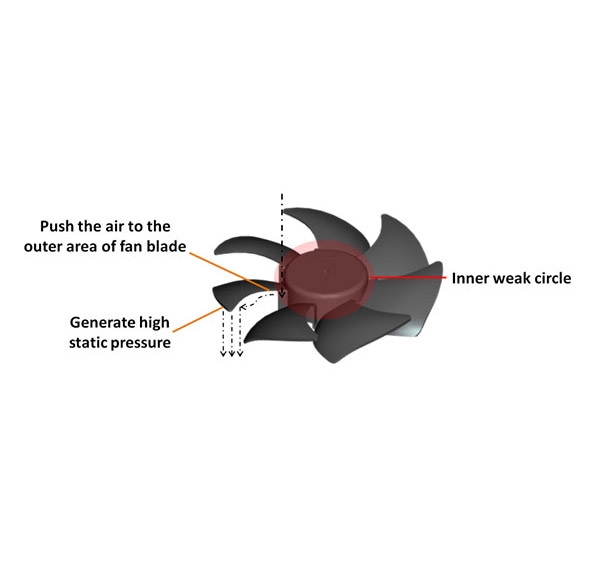

Concentrated Compression Blade
Custom designed for high static pressure requirements of demanding
applications such as radiators, the concentrated compression blade is engineered
to focus the weaker, inner circle of air outward, allowing the outer section to
pressurize the air.

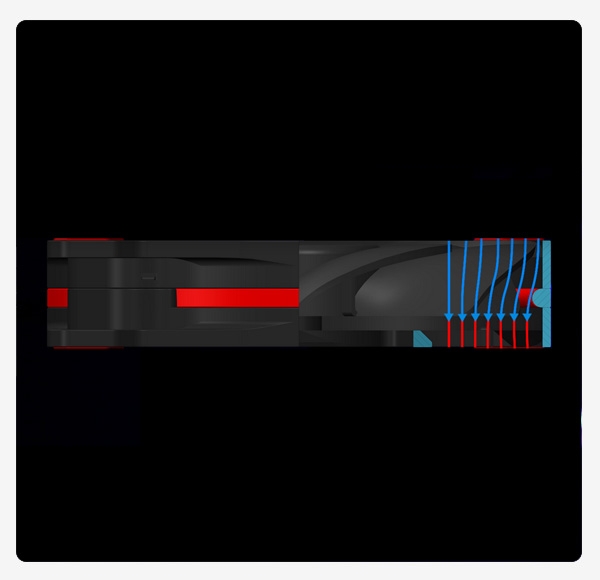

Wind Blocker Frame
To achieve maximum static pressure in all applications, the wind blocker
frame is designed to work with the Concentrated Compression Blade’s (CCB)
pressure mechanism by directing airflow towards the middle section of the blade,
thereby creating a compression effect and blocking any pressure from escaping.
This reduces the blade’s noise and vibration, creating a perfect balance between
power and sound.

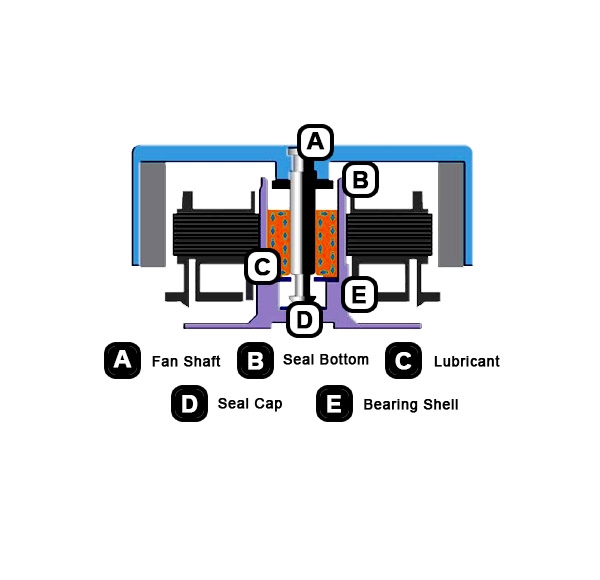

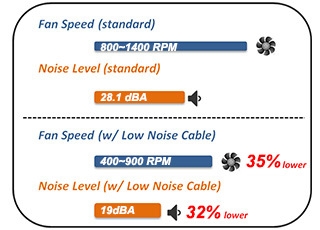

Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high quality, friction-reducing
substance which lowers operating noise and improves efficiency. The seal cap
prevents leakage of the lubricant, and improves the lifespan of the unit. By
clicking the “SPEED” button on fan controller, the noise level can be reduced to
32%.
Anti-vibration Mounting System
In-mold injection anti-vibration rubber pads provide hassle-free usage for
80% protection coverage, including all four corners.
Specifications
| P/N |
CL-F043-PL14SW-B |
| Fan
Dimension |
140 x 140 x 25
mm |
| Started
Voltage |
9.0
V |
| Rated
Voltage |
12
V |
| Rated
Current |
0.26
A |
| Power
Input |
3.12
W |
| Fan
Speed |
800 ~ 1400
R.P.M |
| 600~1100 R.P.M (Low
Noise Mode) |
| Max. Air
Pressure |
0.515 ~ 1.58
mm-H2O |
| Max. Air
Flow |
29.229~ 51.15
CFM |
| Noise |
19 ~ 28.1
dB-A |
| Bearing
Type |
Hydraulic
Bearing |
| Life
Expectation |
40,000 hrs,25 |
| Connector |
4P PWM (Controller To
M/B) |
| 2510-5P ( Fan To
Controller ) |
| Weight |
191.6
g |
| LED
Light |
Red -> Blue ->
White -> Green -> LED off -> 256
colors |
