All stock codes associated to this product
eSpace_8950, EP3Z02CDDV1, EP3Z02CDD-V1

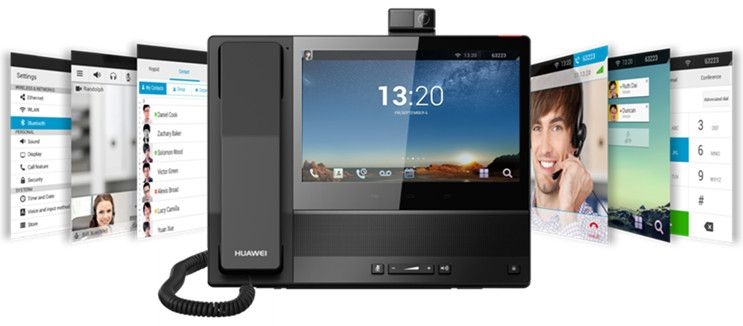

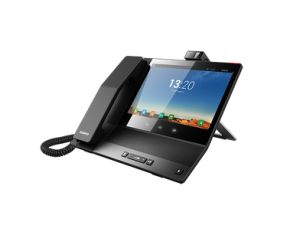

The sleek Huawei eSpace 8950 Video Phone is easy to operate, and not only integrates all your enterprise voice, video, and unified communications applications, but also adds a professional flair to your office.
It delivers more engaging communication and collaboration, with unmatched security, HD audio and video. The intuitive, flat, multiple-touch-screen panel delivers an immersive user experience.
FeaturesIntegrate all your enterprise voice, video, and unified communications with Huawei’s eSpace 8950 Video PhoneProvides a truly immersive user experience with full-band voice codec for crystal-clear, HD audio performance
8-inch, high-resolution, in-plane switching touch screen supports multiple touches, plus 1,280 x 800 pixels and super-wide 178° view provide amazing views
Sparkling video provided by 2-million-pixel high-resolution camera, equipped with a shutter to protect privacy
Features include signaling and media encryption, and access, management, and certificate security

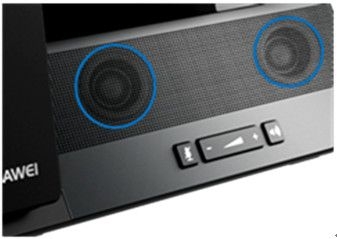

Product characteristicsHigh-fidelity, crystal-clear audio
- Two high-quality, high-fidelity audio speakers
- Full-band voice codec with a sampling frequency as high as 48 kHz for crystal-clear, HD audio performance

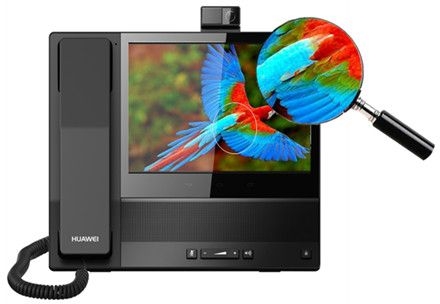

HD, multi-touch screen
Highly sensitive, 8-inch, In-Plane Switching (IPS) touch screen that supports multiple touches
IP phone screen features a clear 1,280 x 800-pixel high-resolution display and super-wide, 178° viewing angle

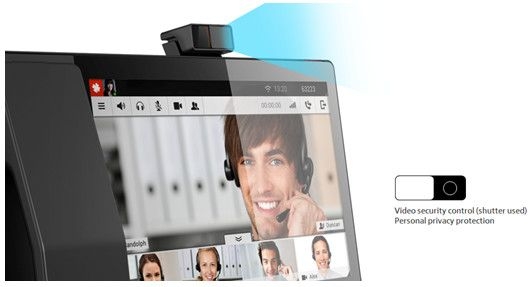

High-resolution, secure video camera
A 2.0-megapixel HD adjustable camera for vivid, highly-detailed images
Lens cover for privacy protection
Works with a telepresence system to deliver HD conferencing
Supports Secure Real-time Transport Protocol (SRTP) and Transport Layer Security (TLS) protocols for encrypted data transmission
Efficient, stylish User Interface (UI)
Intuitive touch screen navigation for efficient operations
Users can create and join conferences by pressing just a few buttons
Stylish, flat UI design delivering an enjoyable user experience
Features
| Categories |
Parameters |
Specifications |
| Protocols |
Network protocols |
TCP/IP, SIP, SDP, UDP, RTP, RTCP, DHCP, DNS, HTTP, HTTPS, SNTP, and XCAP |
| Audio |
Audio codecs |
G.711a, G.711µ, G.729ab, G.722, iLBC, Opus, compatible with G.729, G.729a, G.729b |
| Audio features |
• DTMF: Inband/RFC2833
• Acoustic Echo Cancelation (AEC)
• Automatic Gain Control (AGC)
• Adaptive Jitter Buffer (AJB)
• Automatic Noise Reduction (ANR)
• Comfort Noise Generation (CNG)
• Hearing Aid Compatibility (HAC)
• Packet Loss Concealment (PLC)
• Voice Activity Detection (VAD)
• Sidetone cancelation
• Voice Quality Monitor (VQM)
• Buzz cancelation |
| Video |
Camera |
1080p, external camera, angle adjustable (15o to –25o relative to the screen) |
| Video codec |
H.264 MP/BP |
| Video resolutions |
• QVGA (320 x 240 pixels)
• CIF (352 x 288 pixels)
• VGA (640 x 480 pixels)
• 4CIF (704 x 576 pixels)
• 720p (1,280 x 720 pixels)
• bi (1,920 x 1,080 pixels) |
| Video display |
• Picture-in-Picture (PiP)
• Full screen video
• Self view (local video preview) |
| Phone Basics |
Contacts |
1,000 contact records. Supports contact search, import, and export |
| Languages |
Display:
- Arabic, Chinese (simplified and traditional)
- English, French, German, Hungarian, Polish
- Portuguese, Russian, Spanish, and Turkish
Input:
- Arabic, Chinese (simplified and traditional)
- English, French, Portuguese, and Spanish
Note: Input methods can be installed on the IP phone
|
| Ringtone |
• 24 built-in system ringtones
• System ringtone selection
• Custom ringtone import |
| Wallpaper |
• 20 built-in system wallpapers
• System wallpaper selection
• Custom wallpaper import |
| Local conference |
Up to 6-party audio conferencing, including adding, muting, and removing participants
|
Video conference
|
Multi-party video conferencing when working with UC soft clients and telepresence endpoints
|
| Basic voice services |
- Call Waiting, Call Hold, Call Transfer, Call Forward, Call Deflection
- DND
- Advanced Secretary Service
- Call Park, Pickup, Group Pickup
- Busy Lamp Field (BLF)
- Distinctive Ring,
- Automatic Call Back
- Voicemail
- Abbreviated Dial
- BLF
- Paging Broadcast
- Hunt Group
- Password-based Call Barring
- Emergency Call
- Calling Line Identification Presentation (CLIP)
|
| Bundled Android operating system applications |
Calculator, calendar, clock, email, gallery, Web browser, and search engine |
| Security |
Signaling and media encryption |
• TLS
• SRTP (AES 128) |
| Access security |
• 802.1x (EAP-MD5)
• 802.1x (EAP-TLS) |
| Management security |
• HTTPS |
| Certificate security |
• X.509 |
Product specifications
| Parameters |
Specifications |
| Display |
8-inch, 1,280 x 800 resolution, IPS multi-touch |
| LEDs |
Speaker, mute, lock, MWI, and camera |
| Physical Camera Switch |
Shutter used |
| Supported Angles |
55o to 80o degrees |
| Network Ports |
Two GE ports, 10/100/1,000 Mbit/s adaptive, configurable VLAN |
| Wi-Fi |
IEEE 802.11 a/b/g/n |
| USB 2.0 Ports |
Two USB 2.0 ports for USB flash drive, headset, keyboard, and mouse |
| USB Camera Port |
One USB port to connecting with USB camera delivered with eSpace 8950 |
| Bluetooth |
Bluetooth headset |
| Micro-SD Card Slot |
One Micro-SD card slot |
| HDMI Port |
One HDMI port, in compliance with HDMI 1.4 |
| Handset Port |
RJ-9 |
| Headset Port |
0.1 in. (3.5 mm) |
| Operating System |
Android 4.2.2 |
| PoE |
Supported |
| Power Adapter |
Input: 100V to 240V AC
Output: 12V DC, 2A
(China, Europe, U.K., U.S.A., Australia, Brazil, and Saudi Arabia standards supported) |
| Typical Power Consumption |
12W |
