Aerocool Dream Box - Basic Midi Tower Kit

Aerocool Dream Box Starter Kit
Includes all parts required for midi-tower ATX style case
Customisable to create any design

Details

What is Aerocool Dream Box?

"Dream Box" is a revolutionary DIY kit created by Aerocool to give you the flexibility to build a computer case like no other!

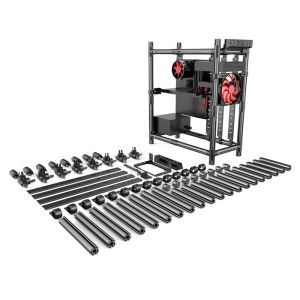

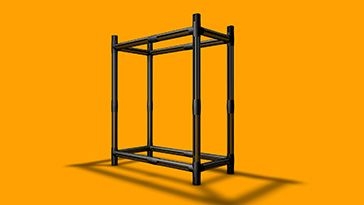

The Starter Kit includes all necessary aluminium tubes, joiners, beams, mounts and clips to create a standard ATX-style PC case.

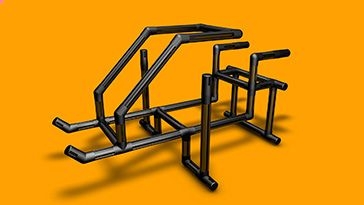

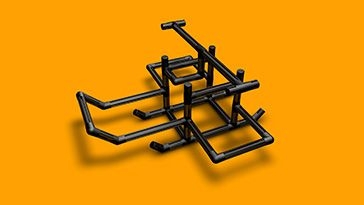

Or switch around some of those same parts to create a helicopter design or even a 'wild boar,' still with room for your motherboard, PSU, fans and PC parts.

But why stop there?

Let your imagination run wild! With enough parts (available separately) the sky is the limit - create a tank, a car, a castle, all with a PC inside.

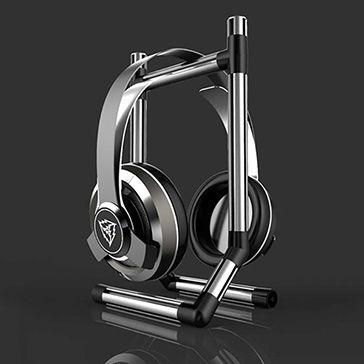

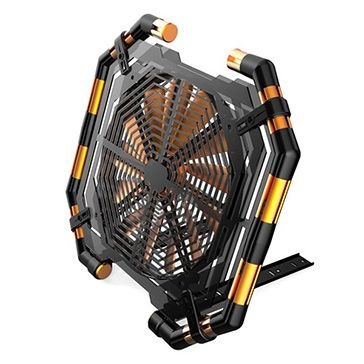

You can even use the Dream Box components to custom-build a headset stand, desk-fan mount, hat stand, coat rack or countless other designs!



IMAGINATION IS THE ONLY LIMITATION

Have fun with the “Dream Box" DIY kit!! Make your own creations and share them online.

What's your next creation?



ALUMINIUM PIPES

The aluminium pipes comes in three available lengths (50mm, 150mm and 200mm). The aluminium pipes together make up the major framework of your creation. Make sure you plan ahead before you start the assembly. Once you have become more experienced with Dream Box parts, you can trim the aluminium pipes to certain length for your particular creation.

METAL BEAMS

The metal beams comes in two available lengths (245mm and 395mm) and they allow you to bridge two parts together with the combination of c-rings. Metal beams are vital parts for mounting motherboards, optical drives, and hard drives (if you intend to build a PC) or simply use them as a supporting beam.

PSU BRACKET

You can mount a power supply unit to your creation (if you intend to build a PC) simply by fastening this bracket to your PSU in combination with c-rings.

MULTI-PURPOSE BRACKET

This right-angled bracket acts as an extension or a bridge for joining two parts/components. In our example, we used it to fasten one side with a c-ring and the other side for securing a graphic card so that the card will not be hanging free in the air.

I/O UNIT

This I/O unit provides the ON/OFF and reset buttons, MIC & headphone jacks, two USB 2.0 and two USB 3.0 connections. This unit can be mounted to an aluminium pipe with two c-rings.

C-RING

This is one of the most critical part in Dream Box package. C-rings make mounting of parts/accessories to your creation possible. C-rings also let you link up two completely different units together in one structure.

4-WAY JOINT

This joint allows you to connect with aluminium pipes in four directions.

3-WAY JOINT

This joint allows you to connect with aluminium pipes in three directions.

2-WAY 90° JOINT

This joint allows you to connect with aluminium pipes in two directions at 90° angle.

2-WAY 135° JOINT

This joint allows you to connect with aluminium pipes in two directions at 135° angle.

2-WAY 180° JOINT

This joint allows you to connect with aluminium pipes in two directions at 180° angle.

JOINT CAP

You can use this cap to close off the un-used part of a joint. It can also become a foot of a structure.

Specifications

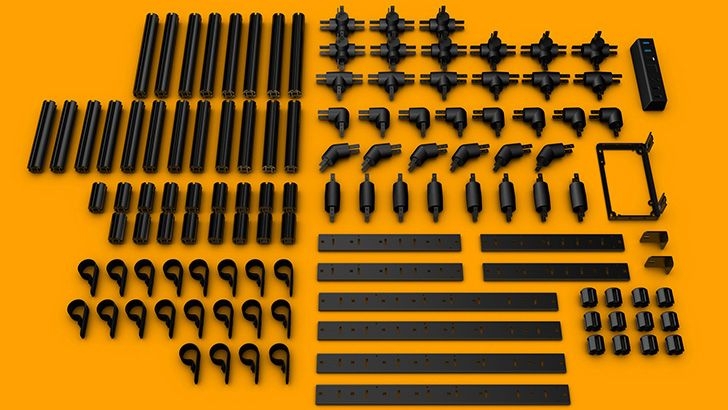

Package Contents

Pipes

• 50mm Pipes - Black Aluminium x 17
• 150mm Pipes - Black Aluminium x 12
• 200mm Pipes - Black Aluminium x 8

Beams

• 245mm Beams - Black Aluminium x 4
• 395mm Beams - Black Aluminium x 4

Joiners

• 2-way 90º Joiner - Black Plastic with Steel Trim x 8
• 2-way 135º Joiner - Black Plastic with Steel Trim x 6
• 2-way 180º Joiner - Black Plastic with Steel Trim x 8
• 3-way Joiner - Black Plastic with Steel Trim x 6
• 4-way Joiner - Black Plastic with Steel Trim x 9
• Joint Cap - Black Plastic x 12

Brackets

• PSU Bracket - Black Aluminium x 1
• Multi-Purpose Bracket - Black Aluminium x 2

Other

• C-ring - Black Plastic x 20
• I/O unit - Black Plastic x 1
