KDC200M | Koamtac KDC200 Laser Barcode Scanner - Black (Bluetooth Compatible)

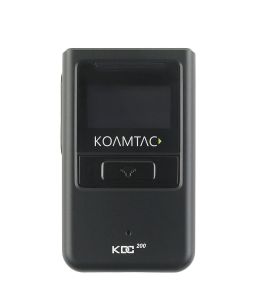

KDC200 Laser Barcode Data Collector

A New Wave in Auto-ID

The KDC200 enables diverse mobile Auto-Identification applications for collecting and storing barcode data.A built-in display eliminates blind erroneous data collections and enables interactive data collection processes. An easy-to-replace rechargeable battery that can recharge from any USB port allows more than 5,000,000 barcode scans. With 4MB of on-board memory that stores over 100,000 product records, memory shortages are also no longer a problem.All KDC® products come with FREE KTSync® software (includes keyboard wedging, application generation, DB look up and inventory management features) and FREE SDK (includes technical support from our top engineers and development staff).

ADVANCED FEATURES

Ultra Compact & Lightweight
Class2 Bluetooth® with HID and SPP Profiles
Bright 1� OLED Display
Rechargeable Li-Poly Battery
Stores 100,000+ Product Records
KTSync® with Keyboard Wedging, Application Generation, DB Look up and Inventory Management features

Specifications

Hardware Specifications

Physical Characteristics

Size: 1.37�x 2.44�x 0.59� (35mmx62mmx15mm)
Weight: 1.2 oz. (34 grams)

Electrical Characteristics

Battery: Lithium-Polymer (3.7V DC, 190mAh)
Charging: Via USB connector
Typical Operating Current: [email protected]

Scanning Performance

Scan Rate: 100 scans/sec

User Environment

Drop Spec: 4 feet (1.22m) with Rubber Case
Operating: 32 °F (0 °C) ~ 113 °F (45 °C)
Storage: -4 °F (-20 °C) ~ 113 °F (45 °C)
Humidity: 5% ~ 85% (noncondensing)

Interfaces

Bluetooth®V2.1+EDR, Class 2, HID/SPPUSB to Serial (Ultra mini USB port)

Functionality

Memory Flash ROM: 256KB Program, 4MB User Data
Memory RAM: 64KB
Microprocessor: ARM7, 32 bits
Real-time Clock: Quartz RTC for timestamp

Symbologies

EAN, UPC, Code 39, Code 93, Code 128, Codabar, Interleaved 2 of  5, GS1-128, Code 3 of 5

Wedging & Synchronization

Store to a file or transfer to the application
Keyboard wedge function
Add-on prefixes and suffixes
Barcode option selection

Application Generation

SDK for PC, Pad and Smartphone application

Application generation tool

Database lookup feature

Inventory management feature

Regulatory Conformance

Laser Safety - IEC Class I, CDRH Class II
EMC - CE, FCC, MIC, TELEC, SRRC
