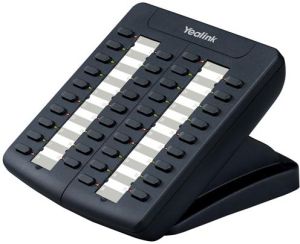

Yealink EXP38 38 Programmable Key Expansion Board

IMG 1 of 1
No Longer Available
Part Number:
406168
(?) Brand:
Yealink
Manuf No:
Shipping Weight:
0.85 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
, EXP38
Yealink EXP38

The EXP38 Expansion Module is designed for improving the power and flexibility of Yealink enterprise IP phone models such as the SIP-T38G, SIP-T28P and SIP-T26P.

The device features 38 fully programmable DSS keys, each with a dual-color LED, connected to and controlled by the IP Phone via a RJ-11 cable line. With the ability to connect up to 6 Expansion Board to a Yealink IP Phone, 228 additional programmable extensions are supported.

Yealink advanced IP phones support advanced IP-PBX functions such as speed dialing, BLF/BLA, intercom, call forward/transfer/hold/park/pickup/return on each of the programmable buttons on the EXP38.

The EXP38 is compatible for use with the following Yealink IP Phones:

Features

•38 programmable keys each with a dual-color LED
•Daisy-chain 6 modules for 228 programmable keys
•Dual color (red or green) LEDs for line status information
•Supports Busy Lamp Field(BLF), Bridge Line Appearance(BLA)
•Programmable for speed dialing, call pickup, Intercom,hold, transfer, voicemail, forward, DND...
•Use with these Yealink IP Phone models: SIP-T38G, SIP-T28P and SIP-T26P
•Expansion module(<2) is powered by the host phone
•38 programmable keys each with a dual-color LED
•Daisy-chain 6 modules for 228 programmable keys
•Dual color (red or green) LEDs for line status information
•Supports Busy Lamp Field(BLF), Bridge Line Appearance(BLA)
•Programmable for speed dialing, call pickup, Intercom,hold, transfer, voicemail, forward, DND...
•Use with these Yealink IP Phone models: SIP-T38G, SIP-T28P and SIP-T26P
•Expansion module(<2) is powered by the host phone

Specifications

Main Features
•38 programmable keys each with a dual color LED
•Daisy-chain 6 modules for 228 programmable keys
•Dual color (red or green) LEDs for line status information
•Supports Busy Lamp Field(BLF), Bridge Line Appearance(BLA)
•Programmable for speed dialing, call pickup, Intercom,
•hold, transfer, voicemail, forward, DND...
•Use with these Yealink IP Phone models: SIP-T38G, SIP-T28P and SIP-T26P
•expansion module(<2) is powered by the host phone
Physical Features
•2x RJ-12(6P6C) ports for data in and out
•Power adapter: AC 100~240V input and DC 5V/1.2A output
•Weight: 255g
•Dimensions: 132 x143 x42mm
•Operating humidity: 10~95%
•Storage temperature: max 60 C

No additional files, specification sheets, guides or documentation found for product.
