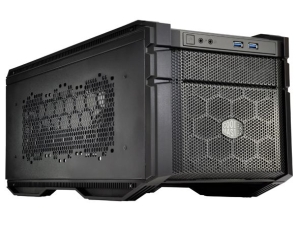

CoolerMaster HAF Stacker 915R Mini-ITX Case - NO PSU, Black
  • 5.25" Bay(1), 3.5" HDD(3), 2.5" SSD/HDD(3), USB3.0(2), Audio In/Out, 92mm Fan, mini-ITX

IMG 1 of 1
No Longer Available
Part Number:
407012
(?) Brand:
CoolerMaster Web Site
Manuf No:
CM-CA-HAF-915RKKN1
CMCAHAF915RKKN1
Shipping Weight:
15 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
HAF915RKKN1, HAF-915R-KKN1, CMCAHAF915RKKN1, CM-CA-HAF-915RKKN1

Overview

STACK UP. STACK ON

HAF Stacker - the first expandable system that allows externally modular upgrades. The HAF 915F/R is a Mini-ITX case with removable top and bottom for additional stacking. Support of up to 360mm radiators in the stacking mode makes HAF 915F/R a powerful liquid cooling solution for system building enthusiasts.

  • Expandable m-ITX chassis; modular design compatible with HAF Stacker system
  • Stack extra 915F or 915R for dual/triple system or additional water cooling and storage
  • M-ITX Chassis supporting long graphics card, standard PSU (rear mount) and water cooling
  • Intuitive design for flexible and easy installations
  • Greater storage expandability with optional drive bay accessories
  • Front 92mm fan offers direct storage cooling

Features

  • Supports up to 360mm radiators or multiple 140mm fans on both side panels
  • Dual USB 3.0
  • Rubber grommet helps to connect the PSU SATA cable for additional stacking
  • Top &eet can be removed for additional stacking

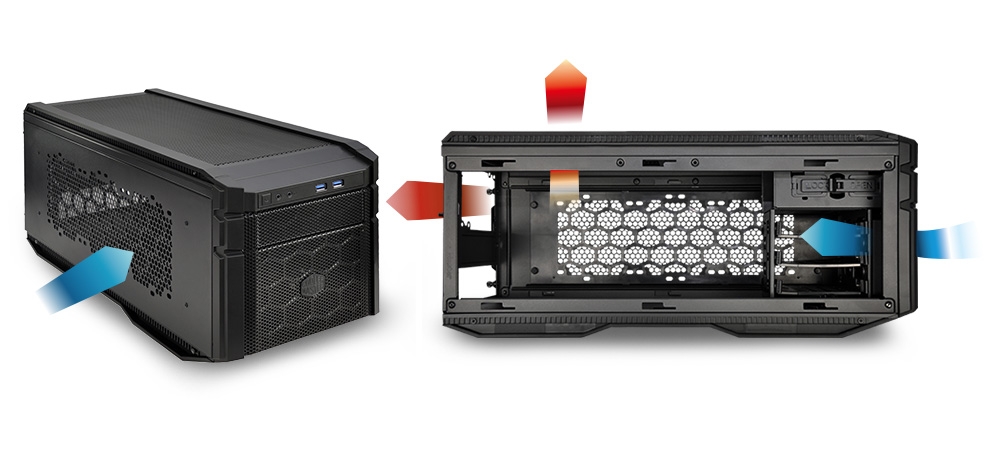

AirFlow

  • Front: 92mm fan x 1 (installed)
  • Side: stacking mode- 120mm fan x 6 / 140mm fan x 4 (optional)
  • Radiators (Side): 120/140/240/280/360mm x 2 (optional)

More Information

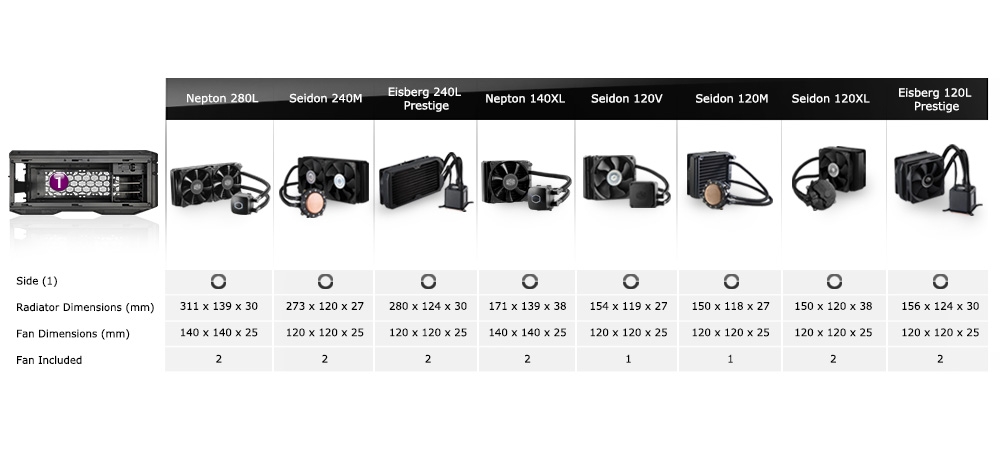

LIQUID COOLING COMPATIBILITY LIST

Specifications

Available Color

Midnight Black

Materials

Bezel: mesh, polymer; Case body: Steel SGCC (t0.7)

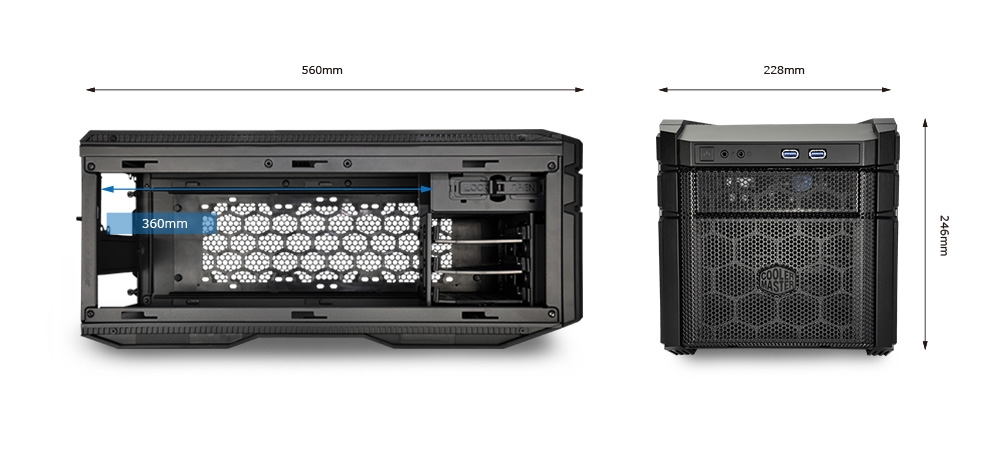

Dimensions (W x H x D)

228 x 248 x 578mm / 8.9 x 9.7 x 22.7 inch

Net Weight

5.7 kg / 12.5 lbs

M/B Type

Mini-ITX

5.25" Drive Bays

1

3.5" Drive Bays

3

SSD Bays

3

I/O Panel

USB 3.0 x 2, Audio In &ut

Expansion Slots

2

Air Cooling System

Front: 92mm fan x 1 (installed)

Side: stacking mode - 120mm fan x 6 / 140mm fan x 4 (optional)

Liquid Cooling System

120/140/240/280/360mm x 2 (optional) - side panel

Power Supply Type

Standard ATX PS2 (rear mounted)

Maximum Compatibility

VGA card length: 360mm / 14.2 inch

CPU cooler height: 80mm / 3.1 inch

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
