Overview
Performance, style and silence everything you want in a fan has been included
in the JetFlo 120. 7 ultra-thin yet rigid blades generate high airflows that
reach up to 95 CFM. Steel threaded rubber pads absorb fan vibration and keep the
noise down. Two silent mode adapters let you fix the fan speed at 1200 and 1600
RPM. The JetFlo 120 comes in blue, red, white and no LED.

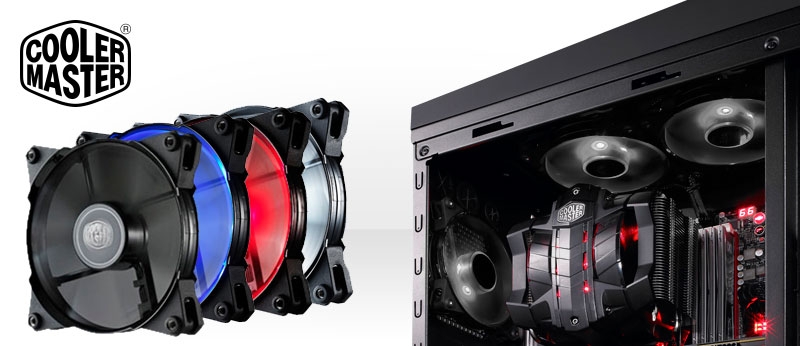

Cooler Master JetFlo 120
The Cooler Master JetFlo 120 is a high performance, long-lasting cooling fan
for computer cases, CPU coolers, and radiators. Longevity is a key feature in
JetFlo as it utilizes Cooler Master's latest Polyoxymethylene (POM) Bearing
technology. The blades found on each JetFlo fan are ultra-thin but extremely
strong, enabling minimal resistance and maximum performance. JetFlo is powerful
while remaining whisper-quiet thanks to rubber mounting corners that contain
threaded steel inserts, absorbing most vibrations and noises.

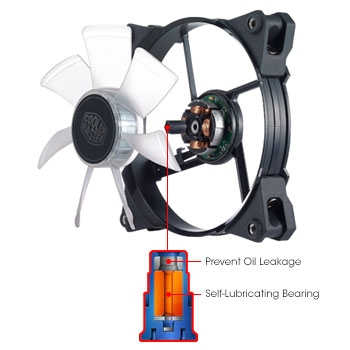

Ultra-Durable, Self-Lubricating POM Bearing
Polyoxymethylene (POM) is a highly rigid and abrasion resistant material that
self-lubricates and enables an incredible 160,000 hour lifespan for JetFlo. The
POM Bearing is enclosed in Cooler Master's patented Oil Recycle Bearing System
(ORBS), which provides IP54 water and dust resistance.
Quiet Reliability
Cooler Master's POM Bearing technology helps reduce vibration and noise while
offering consistently lower friction levels than traditional bearings.
Immensely Powerful Fan Blades

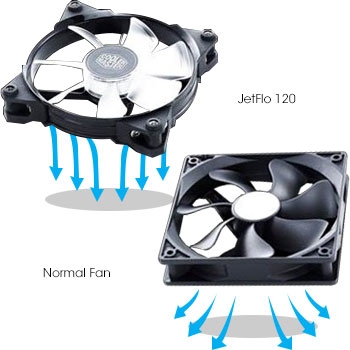

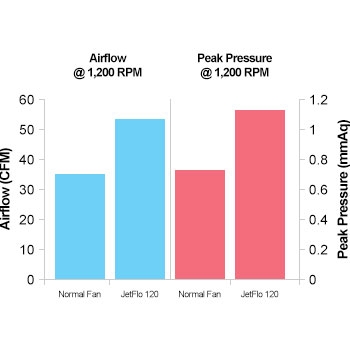

Ultra-thin fan blades enable minimal resistance and maximum performance - up
to a staggering 95 CFM of airflow with PWM functionality. Unlike other fans that
disperse air over a large area, JetFlo generates concentrated airflow in a tight
radius.
What's Included?
- JetFlo 120 Cooling Fan
- Silent Mode Adapter x 2 (19 dBA/1,200 RPM and 28 dBA/1,600 RPM)
Specifications
| Model |
R4-JFNP-20PW-R1 |
| LED
Colour |
White |
| Dimensions |
120 x 120 x 25 mm / 4.7
x 4.7 x 1 inch |
| Fan
Speed |
800-2000 RPM (PWM) 10%;
w/ silent adapter: 1600/1200 RPM (fixed) |
| Air
Flow |
95 CFM
10% |
| Air
Pressure |
2.72 mmH2O
10% |
| Life
Expectancy |
160,000
hrs |
| Noise
Level |
36
dBA |
| Bearing
Type |
POM Bearing - CM 4th
Gen. bearing (*POM: Polyoxymethelene) |
| Connector |
4-Pin
(PWM) |
| Voltage |
12
VDC |
| Current |
0.4A |
| Power
Consumption |
4.8W |
| Accessory |
Silent mode adapter x 2
(1600 RPM x 1, 1200 RPM x 1), Metal screw x
4 |
