All stock codes associated to this product
RRHD9228PKR1, RR-HD92-28PK-R1, CMCORRHD9228PKR1, CM-CO-RRHD92-28PKR1

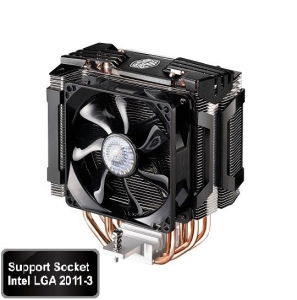

Cooler Master Hyper D92 Universal CPU Cooler - Intel
S478/LGA775 - AMD S754/S939/S940/AM2, 120mm Fan, 800~2,800 RPM (PWM) ± 10%,
15.7~54.8 CFM ± 10%, 10~33 dBA
Overview
Hyper D92
The Hyper D92 introduces several new features to the incredibly popular Hyper
series, including Cooler Masters patented quad DC (Direct Contact) Heatpipes
array and dual cooling fans. Thanks to the new Fan Crossover Setup design, the
Hyper D92 increases airflow by guiding it along the best path to effectively
dissipate heat. Equipped with universal mounting bracket, the Hyper D92 supports
the latest Intel and AMD sockets, making it one of the best mid-tower coolers
with excellent performance.
DC (Direct Contact)
Higher efficiency and better dissipation compared to generic metal bases.
Fan Crossover Setup design
The exclusive design enhances the performance by guiding the airflow more
effectively.
Dual 9cm fans – Pull & Push
Reduce the temperature of heatpipes and heatsinks faster with more
airflow.
Universal Mounting Kits Design
Easy to install on the Intel/AMD platform.
Specifications
|
Model |
: |
RR-HD92-28PK-R1 |
|
CPU
Socket |
: |
Intel LGA 2011-3 / 2011
/ 1366 / 1156 / 1155 / 1151 / 1150 / 775/AMD FM2+ / FM2 / FM1 / AM3+ / AM3
/ AM2+ / AM2 |
|
Dimensions |
: |
146.4 x 128.9 x 96.6
mm(5.8 x 5.1 x 3.8 inch |
|
Heat Sink
Dimensions |
: |
145 x 124.7 x 85 mm
(5.7 x 4.9 x 3.3 inch) |
|
Heat Sink
Material |
: |
4 Direct Contact
Heatpipes / Aluminum Fins |
|
Heat Sink
Weight |
: |
448 g / 0.99
lb |
|
Heat Pipe
Dimensions |
: |
6mm |
|
Fan
Dimensions |
: |
92 x 92 x 25 mm (3.6 x
3.6 x 1 in) |
|
Fan
Speed |
: |
800~2,800 RPM (PWM)
10% |
|
Fan Air
Flow |
: |
15.7~54.8 CFM
10% |
|
Fan Air
Pressure |
: |
0.35~4.27 mm H2O
10% |
|
Fan Life
Expectancy |
: |
40,000
hours |
|
Noise
Level |
: |
10~33 dBA
|
|
Bearing
Type |
: |
Rifle
Bearing |
|
Connector |
: |
4-Pin |
|
Rated
Voltage |
: |
12
VDC |
|
Rated
Current |
: |
0.24A + 10%
max. |
|
Power
Consumption |
: |
2.88 W
(max) |
|
Fan
Weight |
: |
74 g / 0.16
lb |
|
Weight |
: |
636 g / 1.4
lb |
