All stock codes associated to this product
, CMCORRTX3E28PKR1, CM-CO-RRTX3E-28PKR1, RR-TX3E-28PK-R1, 884102012938

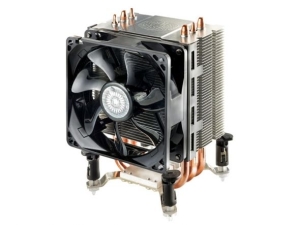

Cooler Master Hyper TX3 EVO Universal CPU Cooler - Intel S478/LGA775, AMD S754/S939/S940, 92mm Fan, 800 - 2,800 RPM (PWM) ± 10%, 15.7 - 54.8 CFM ± 10%, 17 - 35 dBA
Overview
Hyper TX3 EVO
The Hyper TX series has evolved along with the requirements of mainstream
CPUs. The launch of Hyper TX3 EVO marks another milestone with Cooler Masters
Improved Direct Contact technology, further improving cooling performance.
3 Direct Contact Heat Pipes
Aluminum fins with 3 direct contact heat pipes provide excellent heat
dissipation.
Dual Fan Design
Increase cooling performance by adding an optional second 92mm fan.
92mm PWM Fan with Quick-snap Fan Bracket Design
New 92mm PWM fan with anti-vibration rubber pads and a quick-snap cover for
easy fan installation.
Compact Dimensions
Excellent airflow design with compact heat sink dimension.
All-in-one Mounting Solution
Compatible with Intel® Socket LGA 1366/1156/1155/775 and AMD Socket
FM1/AM3+/AM3/AM2+/AM2.
Specifications
|
Model |
RR-TX3E-28PK-R1 /
RR-TX3E-22PK-R1 |
|
CPU
Socket |
Intel
Socket: |
|
LGA 1366 / 1156 / 1155 / 1151
/ 1150 / 775 * |
|
|
|
AMD
Socket: |
|
FM2+ / FM2 / FM1 / AM3+ / AM3
/ AM2+ / AM2 |
|
CPU
Support |
Intel: |
|
Core i7 Extreme / Core i7 /
Core i5 / Core i3 / Core2 Extreme / Core2 Quad / Core2 Duo / Pentium /
Celeron |
|
|
|
AMD: |
|
FX-Series / A-Series / Phenom
II X4 / Phenom II X3 / Phenom II X2 / Phenom X4 / Phenom X3 / Athlon II X4
/ Athlon II X3 / Athlon II X2 / Athlon X2 / Athlon /
Sempron |
|
Dimension |
90 x 79 x 136 mm (3.5 x 3.1 x
5.4 in) |
|
Heat Sink
Dimensions |
90 x 51 x 136 mm (3.5 x 2.0 x
5.4 in) |
|
Heat Sink
Material |
3 Direct Contact Heat Pipes /
Aluminum Fins |
|
Heat Sink
Weight |
306g (0.68
lb) |
|
Heat Pipes
Dimensions |
6mm |
|
Fan
Dimension |
92 x 92 x 25 mm (3.6 x 3.6 x
1 in) |
|
Fan
Speed |
800 - 2,800 RPM (PWM)
10% |
|
800 - 2,200 RPM (PWM) 10% (EU
Version) |
|
Fan
Airflow |
15.7 - 54.8 CFM
10% |
|
15.7 - 43.1 CFM 10% (EU
Version) |
|
Fan Air
Pressure |
0.35 - 4.27mm H2O
10% |
|
0.35 - 2.63mm H2O 10% (EU
Version) |
|
Fan Life
Expectancy |
40,000
hours |
|
Fan Noise Level
(dB-A) |
17 - 35
dBA |
|
17 - 30 dBA (EU
Version) |
|
Bearing
Type |
Long Life Sleeve
Bearing |
|
Connector |
4-Pin |
|
Fan Rated
Voltage |
12
VDC |
|
Fan Rated
Current |
0.24A |
|
0.15A (EU
Version) |
|
Power
Consumption |
2.88W |
|
1.8W (EU
Version) |
|
Fan
Weight |
73g (0.85
lb) |
|
Note |
* Supplied accessories may differ by country or area.
Please check with your local distributor for further
details. |
