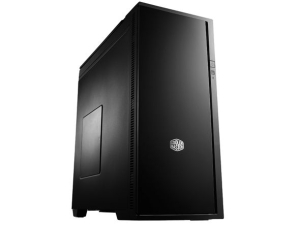

Cooler Master Silencio 652 S Mid Tower Premium Silent
Cooling
Overview
- Supremely silent mid-tower with noise cancelling materials
and an elegant matte finish
- Three 120mm Silencio
FP 120 fans included for absolute silence and excellent
airflow
- Removable covers on the top and side panel for improved
cooling capabilities
- Liquid cooling ready - supports 240mm radiators (top) or
120mm radiators (rear)
- Dual Super Speed USB 3.0 & SD card reader
- Supports high-end CPU coolers up to 168mm tall and graphics
cards up to 423mm long
- Supports up to 10 SSDs /9 HDDs with the HDD/SSD combo cage
and the 5.25-to-3.5 adapter
- Multiple dust filters (top, bottom, front, side panel) for
easy system maintenance
Equipped with Cooler Master's all-new Silencio FP 120 fans, the Silencio 652S
delivers uncompromising, whisper-quiet performance. Silencio FP 120 fans feature
specially designed blades that allow both extremely quiet operation and high air
pressure. Consuming less power than typical case fans (0.6W, 12V, 0.05A) and
featuring IP6X dust resistance, Silencio FP 120 boast a staggering 160,000 hour
lifespan, making Silencio 652S extremely quiet and highly durable. Besides the
inclusion of Silencio FP 120 fans, Silencio 652S features support for 120/240mm
water cooling systems with removable covers on the top and side panels. A large
interior ensures ample space for the latest high-end graphics cards and CPU
coolers, while adjustable HDD/SSD trays provide support for up to 9 HDDs or 10
SSDs. Maintenance is a breeze with multiple dust filters throughout the chassis
(top, bottom, front, side).
The new Silencio FP 120 (FP: Fan Pressure) fan technology ensures that no
compromises are made to build a silent cooling system. Each fan is designed with
large fan blades that, with its proprietary technology, produce less noise (111
dBA) while creating high air pressure. A new system will likely be long obsolete
by the time that these fans expire as they carry a 160,000 hour life expectancy
with IP6X full dustproofing that protects the fan bearing and keeps it running
silent for a long time.
- Ultra Low Noise: 111dBA
- Optimum Air Pressure
- More power-saving: consumes lower current (0.6W, 12V, 0.05A) compared to
the normal fans (12V, 0.15A)
- Loop Dynamic Bearing:
- Dust-proof: IP6X (the highest level of dust test standard)
- Super Long Life expectancy: up to 160,000 hrs
Silencio FP 120 For Absolute Silence
There are three Silencio FP 120 fans installed in the Silencio 652S - two in
the front to intake cool air with minimum noise (111dBA) and one in the rear to
exhaust the heat. It's more power-saving which consumes lower circuit (0.6 watt,
12V, 0.05Amp) simultaneously.
Features
- Removable cover with dust filter at the top
- Dual SuperSpeed USB 3.0; SD card reader
- Supports high-end VGAs up to 423mm / 16.6 inch long
- Removable HDD/SSD combo cage with adjustable HDD/SSD trays
- Two slide-out dust filters for easy maintenance
- One hidden SSD slot behind the M/B tray
Cooling
- Supports a 240mm radiator at the top
- Supports a 120mm radiator in the rear
- Supports a 180/200mm fan on the side panel with the cover removed
- Supports a 180/200mm fan at the top
- Includes two Silencio FP 120 fans in the front for improved
airflow

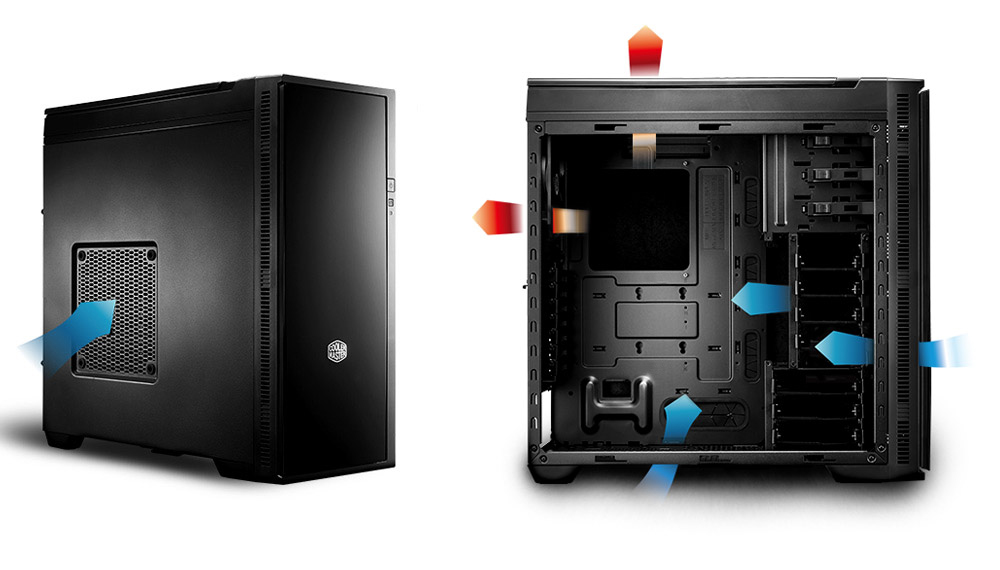

Airflow
- Top: 180/200mm fan x 1, or 120/140mm fan x 2 (optional)
- Front: 120mm Silencio FP 120 fan x 2 (installed; 111 dBA, 1200200 RPM)
- Rear: 120mm Silencio FP 120 fan x 1 (installed; 111 dBA, 1200200 RPM)
- Side: 180/200mm fan x 1 (optional)
- Bottom: 120/180mm fan x 1 (optional)
- HDD cage: 120mm fan x 1 (optional)
More Information
Specifications
Model
Number |
: |
SIL-652-KKN2 |
Available
Color |
: |
Midnight
Black |
Materials |
: |
Polymer,
Steel |

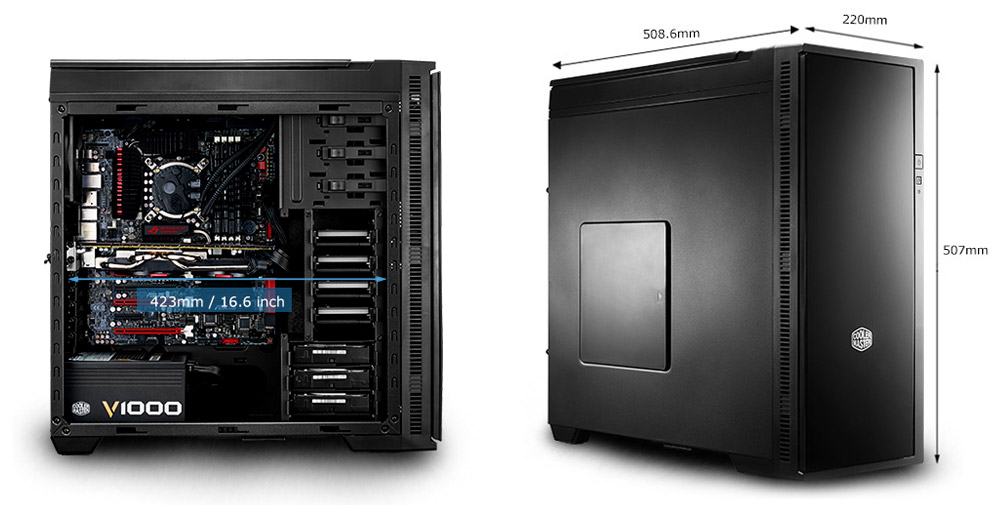

Dimensions (W x H x
D) |
: |
220 x 507 x 508.6 mm /
8.7 x 20 x 20 inch |
Net
Weight |
: |
10.4 kg / 22.9
lbs |
M/B
Type |
: |
microATX,
ATX |
5.25" Drive
Bays |
: |
3
(exposed) |
3.5" Drive
Bays |
: |
9 (hidden; 7 in the
HDD/SSD combo cage, 1 at the bottom, 1 in the ODD cage by
adapter) |
2.5" Drive
Bays |
: |
10 (hidden; 7 in the
HDD/SSD combo cages, 1 under the ODD cage, 1 behind the M/B tray,1 at the
bottom) |
I/O
Panel |
: |
USB 3.0 x 2, USB 2.0 x
2, Audio x 1 (supports AC97 / HD Audio), Mic x 1, SD card reader (Class
10) x 1 |
Expansion
Slots |
: |
7+1 |
Cooling
System |
: |
Top: 180/200mm fan x 1,
or 120/140mm fan x 2 (optional) |
: |
Front: 120mm Silencio
FP 120 fan (no PWM) x 2 (installed; 111 dBA, 1200200
RPM) |
: |
Rear: 120mm Silencio FP
120 fan (no PWM) x 1 (installed; 111 dBA, 1200200
RPM) |
: |
Side: 180/200mm fan x 1
(optional) |
: |
Bottom: 120/180mm fan x
1 (optional) |
: |
HDD cage: 120mm fan x 1
(optional) |
Power Supply
Type |
: |
Standard ATX
PS2 |
Maximum
Compatibility |
: |
VGA card length: 423 mm
/ 16.6 inch |
: |
CPU cooler height:
168mm / 6.6 inch |
