All stock codes associated to this product
CO9050013WW, CO-9050013-WW, CFCOSP120PWMP, CFCO-SP120PWM-P, 843591037648
Overview
Efficient, low-noise heatsink and radiator cooling with PWM
control

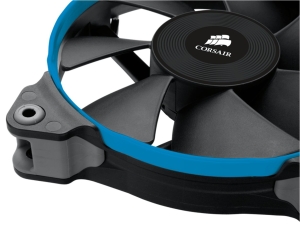

The wide body, low-pitch blades of the SP120 fans combined with the custom
housing provides outstanding static pressure and airflow through heatsinks or
radiators. With rubberized corners, a quiet and reliable Advanced Hydraulic
Bearing, and PWM support for increased fan speed control, the SP120 truly is the
strong, silent type.
Included in the box are the three user-replaceable colored rings, in red,
blue, and white, so you can customize your fan to match your cases components.
Each fan also features blacked-out wires and connectors, so your build looks
elegant and clean when done.
Features
-
Outstanding static pressure of up to 1.29
mmH20
-
4-PIN PWM Support for increased fan speed
control
-
Seven wide body, low-pitch custom blades for optimal
static pressure at very low noise levels
-
Custom fan enclosure for ducting air in the right
direction with minimal interference
-
Advanced hydraulic bearing for reliable, quiet
operation
-
Rubberized corners for sound damping when installed
with standard screws
-
Replaceable colored rings so you can match your fans to
your case
Performance
|
|
SP120 PWM High Performance
Edition |
SP120 PWM Quiet
Edition |
|
Size |
120mm x 25mm |
|
Operating
Voltage |
7V - 12V |
|
Airflow |
62.74 CFM |
37.85 CFM |
|
Static
Pressure |
3.1 mmH20 |
1.29 mmH20 |
|
Sound
Level |
35 dBA |
23 dBA |
|
Speed |
2350 RPM |
1450 RPM |
|
Power
Draw |
0.18 A |
0.08 A |
Specifications
|
Package
contents |
SP120 PWM High
Performance Edition Airflow Fan |
|
|
Three colored rings in
red, blue, and white |
|
|
Mounting
Screws |
|
|
|
|
System
requirements |
Motherboard with an
open standard 3-pin fan connector |
|
|
|
|
Warranty |
12 Months |
|
Fan
Size |
120mm x
25mm |
|
Fan
Type |
Performance
Edition |
|
Flow
Type |
Static
Pressure |
|
Operating
Voltage |
7V
12V |
|
|
|
|
Airflow |
62.74
CFM |
|
Static
Pressure |
3.1
mmH20 |
|
Sound
Level |
35
dBA |
|
Speed |
2350
RPM |
|
Power
Draw |
0.18
A |
