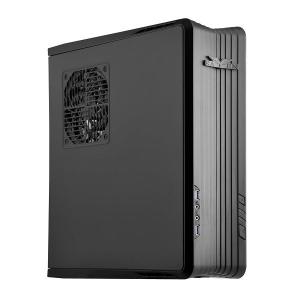

SilverStone SST-RVZ01B-E Black Raven Series RVZ01-E SFF Case (USB3) - NO PSU, Black
  • 2.5" x4, 120mm x 2 Fan, HD Audio x1, USB3.0 x2, SFF, Mini ITX & DTX

IMG 1 of 1
No Longer Available
Part Number:
407995
(?) Brand:
SilverStone Web Site
Manuf No:
SST-RVZ01B-E
SSTRVZ01BE
Shipping Weight:
20 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
SSTRVZ01BE, SST-RVZ01B-E

Overview

SilverStone RVZ01-E is an evolution of the ground breaking RAVEN Z RVZ01, a slim form factor case with tremendous capability. While maintaining the same volume size and appearance as the original model, the RVZ01-E interior was reworked to convert SFX power supply space into one for standard ATX (PS2) power supply. This amazing change came with little sacrifice as the case still has support for the biggest consumer graphics cards on the market with superb air cooling performance. Designed for use in either vertical or horizontal orientation, it can be placed comfortably in any space constrained environment that requires a powerful PC. For those looking to build a slim form factor PC, the RVZ01-Es ability to accommodate standard ATX power supply will help to open up more flexible and varied assembly options.

Highlights

  • Mini-ITX motherboard & ATX PSU compatible.
  • Signature RAVEN styling touches.
  • Maximum performance in slim form factor.
  • Support graphics card up to 13 inches.
  • Positive pressure design for cooling & dust prevention.
  • Suits both horizontal and vertical orientations.
  • Fits in nearly any environment.

Chassis Details

  • Manufacturers model code: SST-RVZ01B-E.
  • Market orientation: Budget gaming & enthusiast.
  • Case type: SFF.
  • External colour: Black.
  • Internal powder coating colour: Black.
  • Case dimensions (LxWxH): 350mm x 382mm x 105mm.
  • Material: Steel & plastic.
  • 5.25" drive bays (external): 0.
  • 3.5" drive bays (external): 0.
  • 2.5" drive bays (internal): 4.
  • Compatible motherboard sizes: Mini ITX & DTX.
  • Rear expansion slots: 2.
  • Included front panel cooling fans: 0.
  • Included rear panel cooling fans: 0.
  • Included top panel cooling fans: 1x 120mm.
  • Included side panel cooling fans: 0.
  • Included bottom cooling fans: 1x 120mm.
  • Total available case fan mounting positions: 3.
  • Included AC97 I/O ports: 0.
  • Included HD Audio I/O ports: 1.
  • Included USB2 I/O ports: 0.
  • Included USB3 I/O ports: 2.
  • Included e-SATA I/O ports: 0.
  • Included IEEE1394 FireWire I/O ports: 0.
  • Included I/O port location: Front panel.

Specifications

Model No.

SST-RVZ01B-E

Material

Reinforced plastic outer shell, steel body

Motherboard

Mini-DTX, Mini-ITX

Drive Bay

ExternalNone



Internal2.5 x 4*

Cooling System

Top: 1 x 120mm fan, 1500rpm, 18dBA



Bottom: 1 x 120mm fan, 1500rpm, 18dBA, 1 x 120mm fan slot

Expansion Slot

2

Front I/O Port

USB 3.0 x 2



audio x 1



MIC x 1

Power Supply

Optional PS2(ATX)

Expansion Card

Support graphics card up to 13, width restriction - 5.88

Limitation of CPU cooler

83mm

Limitation of PSU

150mm*

Net Weight

3.7kg

Dimension

382mm (W) X 105mm (H) X 350mm (D) , 14 liters

Extra

Support Kensington lock

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (SilverStone) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
