Overview

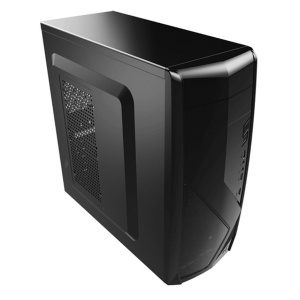

Aerocool CS-1102 mid tower with 600w PSU highlights for its elegant corporate
design.
Highlights
All black chassis interior (0.4mm thickness)
Power / Reset / HDD Indicator / MIC & HD Audio / USB3.0*1 / USB2.0*2.
Chassis Internal
Accessible : 1 x 5.25 / Internal : 3 x 3.5 , 1 x 2.5.
Internal 3 x 3.5 and 1 x 2.5 hard drive.
Supports longer high-end graphic cards up to 350mm or 375mm (without front
fan).
Chassis Details
- Case type: Mid tower.
- Case dimensions (LxWxH): 423mm x 195mm x 410mm.
- PSU mounting position: Top rear.
- 5.25" drive bays (external): 1.
- 3.5" drive bays (external): 0.
- 3.5" drive bays (internal): 3.
- 2.5" drive bays (internal): 1.
- Compatible motherboard sizes: Standard & Micro ATX + Mini ITX.
- Included cooling fans: 1x 80mm (rear).
- Total available case fan mounting positions: 3.
- Included Audio I/O ports: 2.
- Included USB2 I/O ports: 2.
- Included USB3 I/O ports: 1.
- Included e-SATA I/O ports: 0.
- Included IEEE1394 FireWire I/O ports: 0.
- Included I/O port location: Front panel.
Included PSU connectors
- 1x 20+4Pin main power connector.
- 1x 4Pin+4Pin ATX +12v connector.
- 1x 6Pin PCI-E connector.
- 2x 5Pin SATA connector.
- 2x 4Pin peripheral connector.
- 1x 4Pin floppy connector.
|
Specification |
|
|
|
|
Model
Name |
CS-1102 |
|
Case
Type |
Mid
Tower |
|
Steel
Thickness |
0.4mm |
|
Motherboards |
ATX / Micro ATX / Mini
ITX |
|
Case
Dimensions |
195 x 410 x 423mm (W x
H x D, Overall) |
|
5.25 Drive
Bays |
1
(Exposed) |
|
3.5 Drive
Bays |
3
(Internal) |
|
2.5 Drive
Bays |
1
(Internal) |
|
Expansion
Slots |
7
Slots |
|
Max length space
available for PCI slots |
350 mm / 375 mm
(Without Front Fan) |
|
I/O
Ports |
2 x USB2.0 + 1 x USB3.0
+ HD Audio & Mic. |
|
Height limit for CPU
coolers |
Support Max. Height of
150 mm For CPU Cooler |
|
Air Cooling
System |
Front : 1 x 120mm Fan
(Optional) |
|
Side : 1 x 120 / 140mm
Fan (Optional) |
|
Rear : 1 x 80 / 92mm
Fan ( Included 1 x 80mm Black Fan) |
|
Net
Weight |
2.7 Kg / 3.3Kg (Gross
Weight) |
|
Power
Supply |
ATX PSU
(Optional) |
|
|
|
Cooling
System |
|
|
|
|
CS-1101 |
[ Rear
] |
|
Black
Edition |
 |
|
Fan |
80 x 80 x 25
mm |
|
Rated
voltage |
12V |
|
Operating Voltage
Range |
10.8~13.2V |
|
Starting
voltage |
8V |
|
Power
consumption |
1.08W+-10%Max |
|
Rated
current |
0.09A+-10%Max |
|
Speed |
1500+-10%RPM |
|
Air Flow
(CFM) |
22.2CFM |
|
Air
Pressure |
1.26mm-H2O |
|
Noise
(dBA) |
24.0dBA |
|
MTBF |
20,000
hours |
