Overview

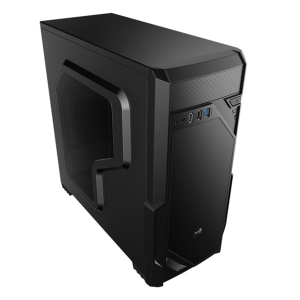

Aerocool VS-1 mid tower chassis with large side window presents a great value
option for budget system builders.
Unbeatable Airflow
Large front mesh design allows big volume of air to be drawn into the case
for fast cooling.
Dust Filter
PSU dust filter can be easily removed for cleaning.
Tool Free
The tool-free design makes installing optical drive fast and easy.
Highlights
- Excellent airflow.
- Dust filter.
- Side window.
- Tool free.
Chassis Details
- Case type: Mid tower.
- Case dimensions (LxWxH): 400mm x 183mm x 420mm.
- PSU mounting position: Top rear.
- 5.25" drive bays (external): 1.
- 3.5" drive bays (external): 0.
- 3.5" drive bays (internal): 2.
- 2.5" drive bays (internal): 3.
- Compatible motherboard sizes: Standard & Micro ATX + Mini ITX.
- Included cooling fans: 1x 120mm (rear).
- Total available case fan mounting positions: 2.
- Included Audio I/O ports: 2.
- Included USB2 I/O ports: 2.
- Included USB3 I/O ports: 1.
- Included e-SATA I/O ports: 0.
- Included IEEE1394 FireWire I/O ports: 0.
- Included I/O port location: Front panel.
|
Specification |
|
|
|
|
Model
Name |
VS-1 / VS-1
Window |
|
Case
Type |
Middle
Tower |
|
Steel
Thickness |
0.5mm |
|
Motherboards |
ATX / Micro ATX / Mini
ITX |
|
Chassis
Dimensions |
183 x 420 x 400mm (W x
H x D, overall) |
|
5.25"Drive
Bays |
1(Exposed) |
|
3.5"Drive
Bays |
2 |
|
2.5"Drive
Bays |
3 |
|
Expansion
Slots |
7
Slots |
|
Max length space
available for PCI slots |
375mm |
|
I/O
Ports |
USB 3.0 x 1 / USB 2.0 x
2 / Audio(HD)+Mic |
|
Height limit for CPU
coolers |
155mm |
|
Air Cooling
System |
Front : 1 x 120mm
(Optional) |
|
Rear : 1 x 120mm (1 x
120mm Black Fan Included) |
|
Net
Weight |
3.8Kg (GW
:4.8Kg) |
|
Power
Supply |
Standard ATX PS2
(Optional) |
|
|
|
Cooling
System |
|
|
|
|
VS-1 / VS-1
Window |
[ Rear
] |
|
Black
Edition |
|
|
Fan |
120 x 120 x 25
mm |
|
Rated
voltage |
12V |
|
Operating Voltage
Range |
10.8~13.2V |
|
Starting
voltage |
6V |
|
Rated
current |
0.12A+-10%Max |
|
Power
consumption |
1.92W+-10%Max |
|
Speed |
1200+-10%RPM |
|
Max
AirFlow(CFM) |
32.1CFM |
|
Max Static
Pressure |
0.64mm-H2O |
|
Noise
(dBA) |
23.5dBA |
|
MTBF |
30,000
hours |
