All stock codes associated to this product
DPGSH12LCT240W, DP-GS-H12L-CT240W
Overview
The Deepcool Captain liquid cooler series mixes equal parts technology and
aesthetics achieving a design steeped in classic Steampunk industrial style
where modern technologies are reimagined and realised as art, fashion and
mechanics.
Innovated by DEEPCOOL Steam Castle Design, Captain Series liquid cooler
styled with Steam Punk appearance, built with visible liquid flow and LED
lightening, offering an awesome sensation not only to your CPU cooling but also
your aesthetic demand. Captain Series is sure to be your ultimate choice for
computer case with side window.
AIO Liquid Radiator With Original Separated Section
Design
- Amazing transparent connection system, visual liquid flow design.
- Self-governed circulation channel to offer more efficient heat
dissipation.
Crazy Steam Punk Appearance
- The unique reactor-style pump housing.
- Long lifetime ceramic bearing with MTTF 120,000 hours.
High-Density Aluminum Fins
- 240mm aluminum fins array optimized for a lower fan speed and noise, also
the standard mounting holes built-in easy to change new 120mm fan.
Equipped With Multiple Clips To Support
- Intel LGA2011-v3/LGA2011/LGA1366/LGA1156/LGA1155/LGA1151/LGA1150 AMD
FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
Highlights
- Manufacturers name: Captain 240 White.
- All-In-One liquid cooling system.
- Intel socket compatibility: LGA201x, 115x & 1366.
- AMD socket compatibility: FM2+, FM2, FM1, AM3+, AM3, AM2+ & AM2.
- Included fan model(s): 2x 120mm.
- 0.2mm high-density water microchannel (Skiving Fin technics).
- 100% pure copper base to offer a highly effective thermal conduct
- Three-phase induction motor built-in the powerful closed impeller.
- The stronger liquid flow&bigger delivery head.
- Bionic white LED breathing light lightening up while operating.
- GF120 rubber-covered PWM fan with de-vibration design, unique FDB bearing
owned a lower noise&longer lifetime.
- Patented detachable fan impeller easy to clear dust&lubricating oil
recruited, DIY top-priority mounting.
- Optimized Airflow With Centralized Flow Design.
Features
-
AIO liquid radiator with original Separated
Section design, self-governed circulation channel to offer more efficient heat
dissipation.
-
Amazing transparent connection system, visual
liquid flow design.
-
Crazy steam punk appearance&the unique
reactor-style pump housing.
-
Three-phase induction motor built-in the
powerful closed impeller, the stronger liquid flow&bigger delivery
head.
-
Long lifetime ceramic bearing with MTTF 120,000
hours.
-
0.2mm high-density water microchannel(Skiving
Fin technics), 100% pure copper base.
-
120mm rubber-covered PWM fan with de-vibration
design, unique FDB bearing owned a lower noise&longer
lifetime.
-
Patented detachable fan impeller easy to clear
dust&lubricating oil recruited, DIY top-priority mounting.
-
Bionic white LED breathing light lightening up
while operating.
Specifications
|
Fan
Dimensions |
Net
Weight |
Fan
Speed |
Fan Air
Flow |
|
120X120X25mm(2pcs) |
118310g |
600200~220010%RPM |
182.24CFM
(MAX) |
|
Fan Air
Pressure |
Fan Life
Expectancy |
Fan Noise
Level |
Fan Bearing
Type |
|
3.71mmH2O(MAX) |
100000
hours |
17.6~39.3dB(A) |
FDBFluid
Dynamic Bearing |
|
Fan
Connector |
Fan Rated
Voltage |
Fan Rated
Current |
Fan Power
Consumption |
|
4Pin |
12VDC |
0.2610%A(MAX) |
3.12W |
|
Main system
Dimensions |
Radiator
Dimensions |
Radiator
Material |
Pump Life
Expectancy |
|
89.0X65.0X82.0mm |
274X120X27mm |
Aluminum |
120000
hours |
|
Pump
Connector |
Pump Operating
Voltage |
Pump Rated
Voltage |
Pump
Speed |
|
3Pin |
6~13.8VDC |
12VDC |
220010%RPM |
|
Pump
Current |
Pump Power
Consumption |
|
|
|
0.1615%A |
1.92W |

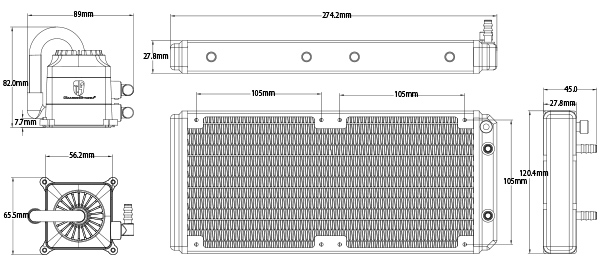

Product Dimension
