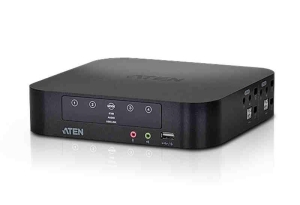

The CS1944 4-port USB 2.0 Dual View Mini DisplayPort KVMPâ„¢ Switch allows
access to 4 computers from a single USB keyboard and USB mouse with dual
displays. The KVM switches amazing functionality combines a Dual view 4-port
Mini DisplayPort switch, with a 2-port USB 2.0 hub, and front panel USB quick
charge port for mobile devices. The CS1944 further improves on previous KVM
designs with the latest Mini-DisplayPort and Mini-TOSLINK connectors. It also
provides the capability of digital video & audio with reliable Ultra high
resolution, vivid picture quality, surround sound with SPDIF connections.
The CS1944 is ideal for multimedia applications, and offers the ultimate in
space-saving, streamlined KVM technology for the desktop.
Package Contents
- 1x CS1944 4-port USB 2.0 Dual View Mini DisplayPort KVMPâ„¢ Switch
| 4x Mini
DisplayPort 1.1a 1 m Cable |
| 4x Mini
DisplayPort 1.1a 2 m Cable |
| 4x USB 2.0
1.8 m Cable |
| 4x Audio Jack
1.8 m Cable Sets |
| 1x Power
Adapter |
| 1x User
Instructions |
Patent No.
EP 1451696 , JP 5232209 , CN ZL 02824593.8 , TW 203183 , JP 4558319 , JP
4651633 , US 6564275 , US 6957287 , US 7340556 , US 7472217 , US 8176226 , US
8140734
Features
-
One dual-view USB console
independently and simultaneously controls four Mini DisplayPort computers and
two USB devices
-
USB quick charge mode (front panel
USB port)
-
Mini DisplayPort 1.1a & HDCP
compatible
-
Full bass response provides a rich
experience for digital surround sound systems via Mini-TOSLINK
-
Superior video quality enables up
to 2560 x 1600 resolution and 3D displays up to 1920x1080 resolution at
120Hz
-
Nvidia 3D Vision
Ready
-
2-port USB 2.0 hub built in, fully
compliant with USB 2.0 specifications
-
Computer selection via front touch
panel /hotkeys/ mouse*
-
Independent switching for USB
peripherals, audio, and KVM focus
-
Keyboard and Mouse support
emulation and bypass
-
Power on Detection
-
Mac keyboard support and
emulation**
-
Multilingual keyboard mapping
Supports English, Japanese, and French keyboards
-
Multiplatform support Windows,
Linux and Mac
*
Mouse port switching is only workable under mouse emulation mode. For 3-key
USB wheel mouse only.
**PC
keyboard combinations emulate Mac keyboards.
**Mac
keyboards only work with their own computers.

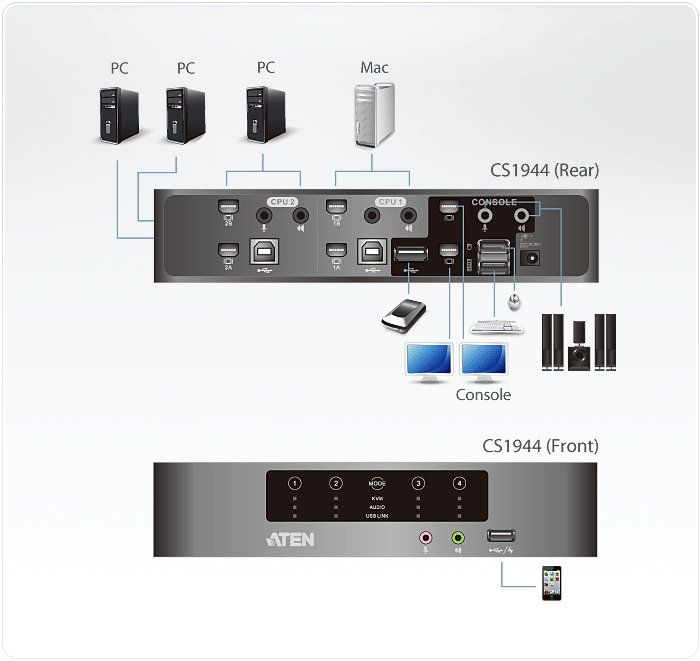

Diagram
Specifications
|
Computer
Connections |
4 |
|
Port
Selection |
Touch Panel, Hotkey,
Mouse |
|
Connectors |
|
Console
Ports |
2 x USB Type A Female
(Black, rear panel) |
|
2 x Mini DisplayPort
Female (Black) |
|
2 x Mini TOSLINK Jack
Female (Black) |
|
1 x 3.5mm Audio Jack
Female (Green) |
|
1 x 3.5mm Audio Jack
Female (Pink) |
|
KVM
Ports |
4 x USB Type B Female
(White) |
|
8 x Mini DisplayPort
Female (Black) |
|
4 x Mini TOSLINK Jack
Female (Black) |
|
USB
Hub |
2 x USB Type A Female
(White; 1 x Front panel, 1 x Rear panel) |
|
Power |
1 x DC
Jack |
|
Switches |
|
Selected |
4 x Point Touch
Panel |
|
LEDs |
|
KVM |
4
(Orange) |
|
Audio |
4
(Green) |
|
USB |
4
(Green) |
|
Emulation |
|
Keyboard /
Mouse |
USB |
|
Video |
DP: 2560 x 1600
resolution @ 60Hz, or 3D Display 1920 x 1080 resolution @
120Hz |
|
Scan
Interval |
1 99 seconds
(Default: 5 seconds) |
|
Power
Consumption |
DC5.3V,
8.63W |
|
Environmental |
|
Operating
Temperature |
0 50C |
|
Storage
Temperature |
20 60C |
|
Humidity |
0 - 80% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Plastic |
|
Weight |
0.61 kg ( 1.34 lb
) |
|
Dimensions (L x W x
H) |
19.70 x 19.70 x 4.47
cm |
|
(7.76 x 7.76 x 1.76
in.) |
|
* The specification and
pictures are subject to change without notice. |
|
|
