All stock codes associated to this product
UE350AAT, UE350A-AT, USAUE350, USA-UE-350, 4719264640254
Overview
As USB 3.0 devices are getting popular, the demand for extending the distance
covered by USB devices is growing notably. ATENs UE350A USB 3.0 Extender Cable
not only extends the distance for the USB devices up to 5 meters, but also
delivers a throughput of up to 5 Gbps when used in conjunction with a USB 3.0
host and devicean astounding increase that is ten times the capability of USB
2.0.
In addition to its robust speed and transfer rate, the UE350A also provides a
durable, high quality connection that harnesses the full capability of the USB
3.0 standard; at the same time, it is backwards compatible with USB 2.0 and 1.1
to ensure reliable data communication. With UE350A, extending the distance of
your USB 3.0 device is quick and easy, making it an ideal addition to your USB
system setups.
Package Contents
- 1x UE350A USB 3.0 Extender Cable
Features
-
Extends the distance of one USB
device up to 5 m (16ft)
-
USB 3.0, 2.0 and 1.1
compatible
-
Built-in USB 3.0 Hub ICfully
supports hot swapping for a variety of USB 1.1/2.0/3.0 devices.
-
Supports USB super-speed (5
Gbps)
-
Plug and playno additional
software installation required
-
Multiplatform supportWindows and
Mac
-
Non-powered *
*
Some USB devices may require a separate power adapter.

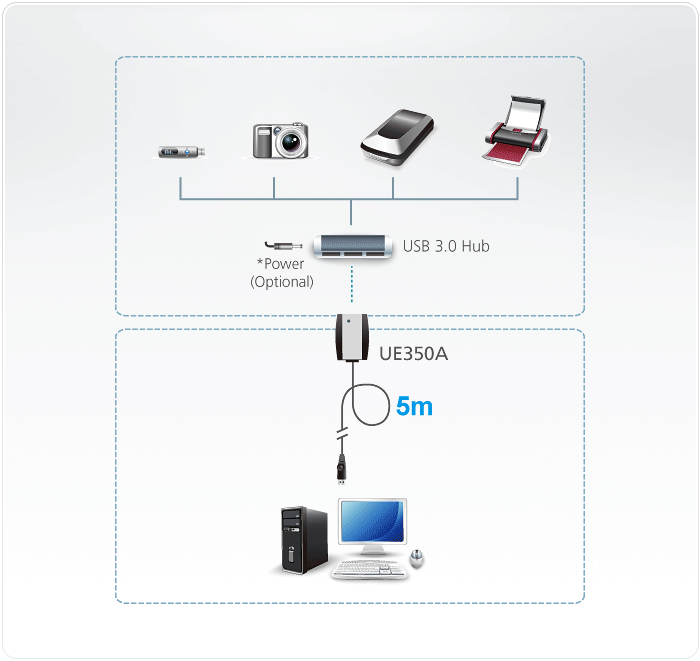

Diagram
Specifications
|
Connectors |
|
USB
Port |
1 x USB Type A
Male |
|
Downstream |
1 x USB Type A
Female |
|
USB
Specification |
3.0 / 2.0 / 1.1 for
Super / High / Full or Low speed |
|
Cable
Length |
5
m |
|
Data
Rate |
Up to 5
Gbps |
|
Environmental |
|
Operating
Temperature |
040C |
|
Storage
Temperature |
-2060C |
|
Humidity |
0-80% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Plastic |
|
Weight |
0.22 kg ( 0.48 lb
) |
|
* The specification and
pictures are subject to change without notice. |
|
|
* All trademarks and
logos are the properties of their respective holders. |
|
