Overview

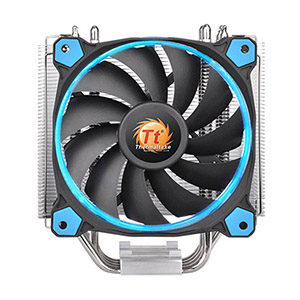

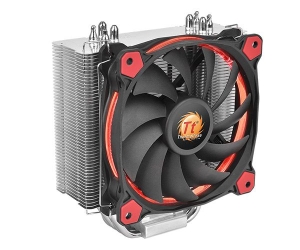

The latest Riing Silent 12 CPU cooler is with PWM function, designed for use
with high-end RAM and motherboards.
A 120mm fan fitted to enhance the airflow produces impressive cooling
performance with an optimized 11 fan-blade design. Hydraulic bearings for silent
operation guarantee ultra-low noise. The patented LED ring maintains color and
brightness uniformity, and the lighting effect is visible from all sides and
angles.

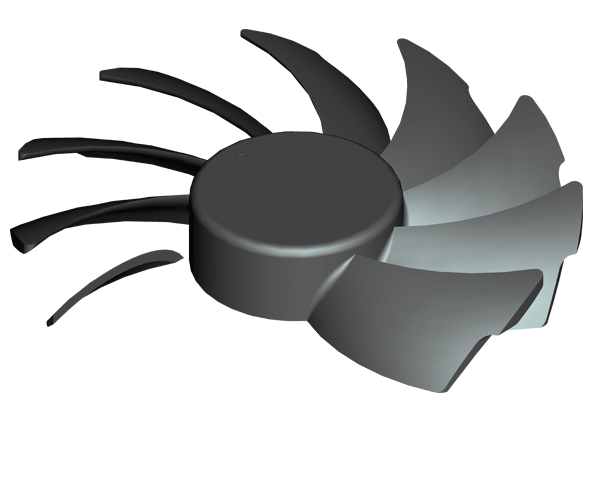

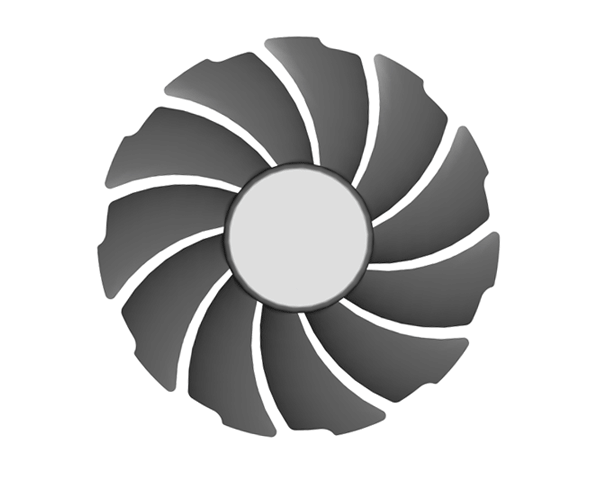

Eleven Fan Blade Design
Eleven fan blades are engineered to create large volume of air passing
through the heatsink at any angle and provide the best balance between silent
and performance.

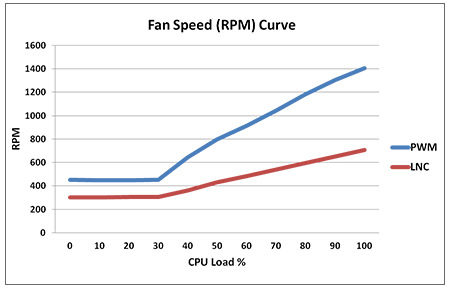

Riing Silent 12 is with PWM function which allows the motherboard to run the
fan precisely at its necessary speed. This guarantees the required cooling and
minimizes the noise level.

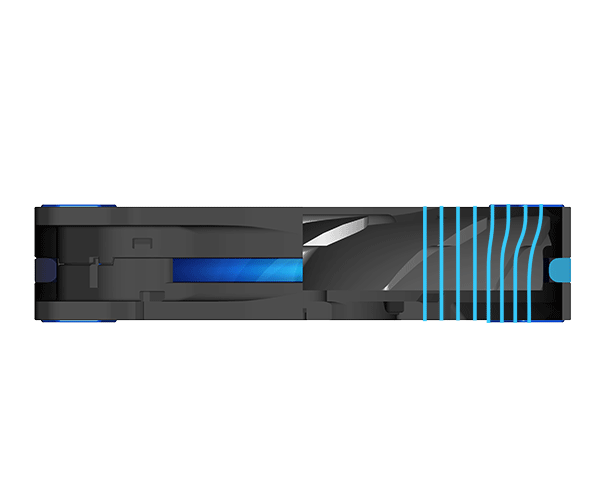

Wind Blocker Frame
To achieve maximum cooling performance in all applications, the wind blocker
frame is designed to direct airflow towards the middle section of the blade,
thereby creating a compression effect and blocking any air from escaping. This
special design reduces the blades noise and vibration, creating a perfect
balance between power and sound.

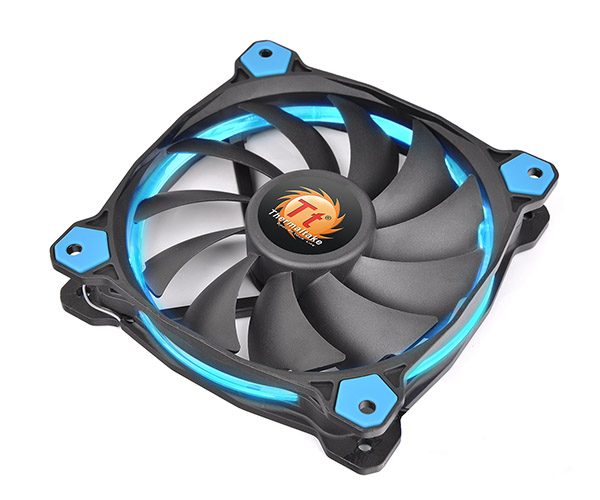

Patented Riing LED
The color and brightness uniformity of the patented LED ring is visible from
all directions and adds style to the chassis.
Taiwan Patent : M498806
China
Patent : CN204498539U
US
Patent : 14/702,806

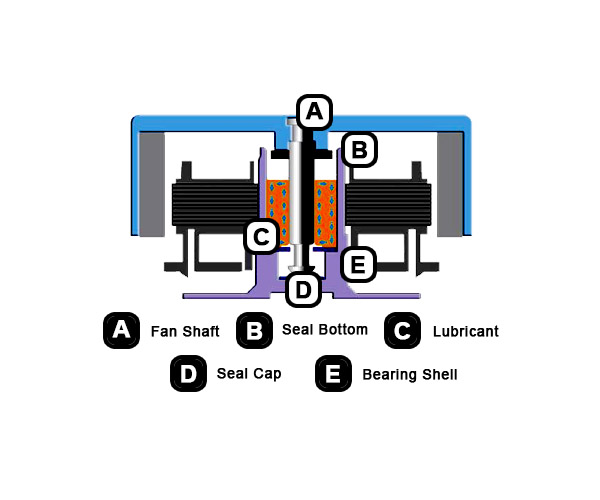

Hydraulic Bearing Design
The hydraulic bearing self-lubricates with a high quality, friction-reducing
substance that reduces operating noise and improves efficiency. The seal cap
prevents leakage of the lubricant, and improves the lifespan of the unit.
Optimized Silent Operation

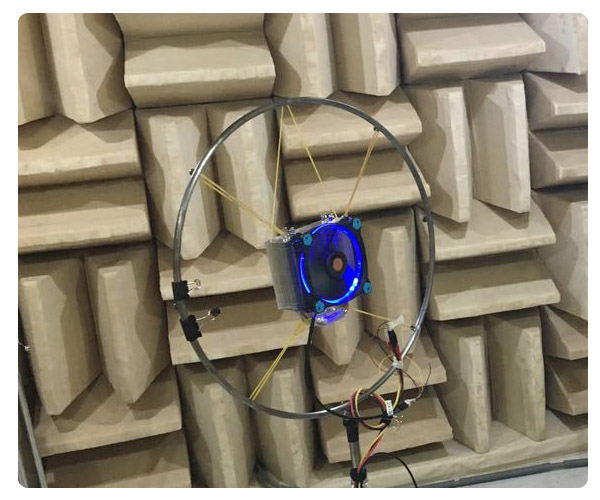

For acoustic test, Riing Silent 12 was tested in a semi-anechoic chamber
which includes anti-vibration, sound-proof, and sound-absorbing effect.

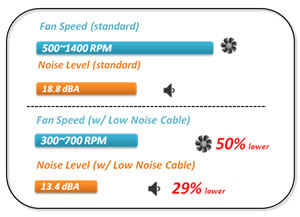

With a LNC (Low-Noise Cable), Riing Silent 12 can reduce the noise level by
29% from 18.8 dBA to 13.4 dBA, and 50% of fan speed.
*Semi-Anechoic Chamber Test

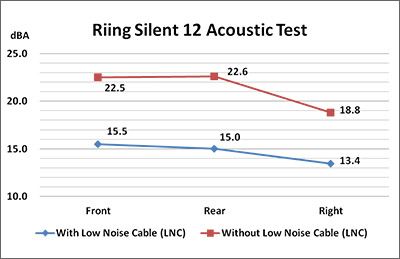

Riing Silent 12 Acoustic Test Result (Without Background Noise)

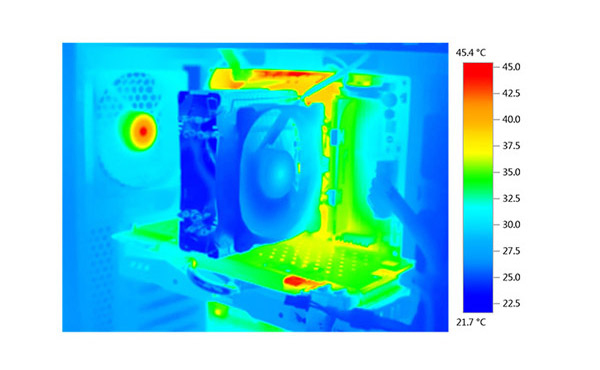

Thermal Image Demonstrates for Heat Distribution
*Note: Blue color represents lower
temperature.
Riing Silent 12 delivers outstanding cooling performance, keeping the
temperature between 30? and 32.5? (ambient temperature is 20?) @Intel Core
i7-4770K 3.8GHz at full load.

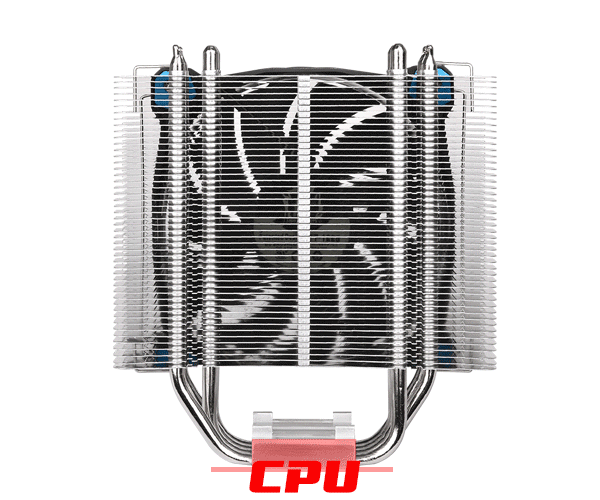

Superior Heat Dissipation

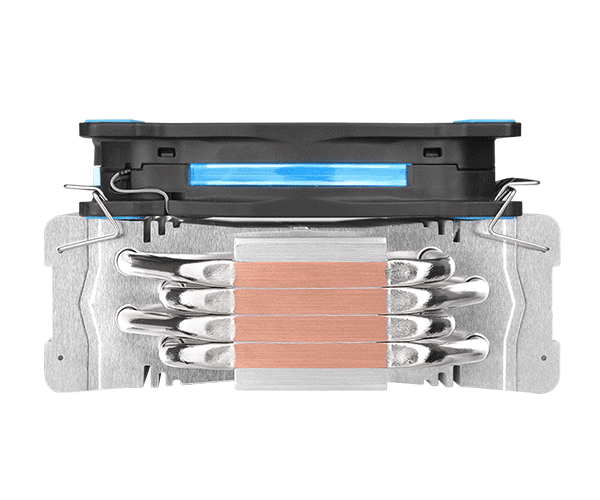

Anti-Vibration Mounting Systems with Non-Interference
Cooling
Anti-vibration rubber pads strengthen stability during operation and provide
hassle-free usage for 80% protection coverage, including all four corners. And

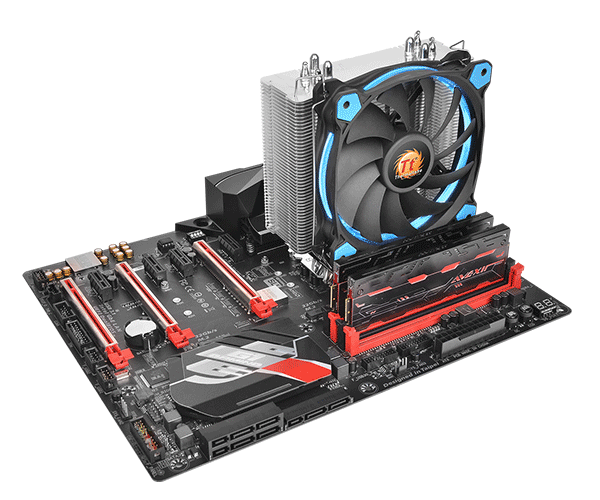

Riing Silent 12 solves the co-existing problem of high performance RAM and CPU
coolers, achieving the best RAM clearance.
Specifications
|
P/N |
CL-P022-AL12RE-A |
|
Compatibility |
Intel LGA
2011-3/2011/1366/1156/1155/1151/1150/775 |
|
AMD
FM2/FM1/AM3+/AM3/AM2+/AM2 |
|
Heatsink
Material |
Aluminum
Fins |
|
Copper
Heatpipes |
|
Heatpipe |
6mm x 4
pcs |
|
Dimension |
159 x 140 x 74 mm (H x
W x L) |
|
Fan
Dimension |
120 x 120 x 25 mm(L xW
x H) |
|
Fan
quantity |
1pcs |
|
Fan
Speed |
500~1400
RPM |
|
300~700 RPM (with LNC
) |
|
Rated
Voltage |
12V |
|
Start
Voltage |
9.0
V |
|
Rated
Current |
0.21
A |
|
Power
Input |
2.52
W |
|
Air
Flow |
53
CFM |
|
Air
Pressure |
1.23
mm-H2O |
|
Acoustical
Noise |
18 1
dBA |
|
13 1 dBA (with
LNC) |
|
Life time/Fan Life
time |
40,000
hours |
|
Pin
Connector |
4 pin PWM + LNC
(Low-Noise Cable) |
|
50% fan speed and 29%
noise can be reduced |
|
Cooling
Power |
150
W |
|
Weight |
825
g |
