All stock codes associated to this product
SSTPM01WAW, SST-PM01WA-W
Overview
Primera is the Spanish word for first or first class. Cases in this series
are designed for those seeking to build PCs with rich feature set and
trend-setting aesthetics.
The Primera PM01 is an incredible computer case that fuses eye-catching
styling and functionality in a package rarely seen in the PC world. It utilizes
high quality, piano-like finish with oversized intake mesh panel inspired by
sports car intake grill for unusually sleek exterior. Paired with an elaborate
lighting system consists of LED fans and built-in adjustable LED strips, the
PM01 can project the feel of a luxurious supercar on a highly customizable
computer case. The roomy interior layout supports a variety of large, high end
components that are designed to be cooled efficiently and quietly by the
included three 140mm LED intake fans and an 140mm exhaust fan. True to
SilverStone tradition, the PM01 also has excellent dust protection thanks to
implementation of easily removable filters and positive pressure airflow setup.
Novice users will find this case a pleasure to build with and maintain while
advanced users will find details such as support for two 360mm radiator mounting
positions and water tank mounting holes to be highly useful for building
beautiful liquid cooled PCs.
Specifications
|
Model
No. |
SST-PM01WA-W
(white with blue LED + window) |
|
-- |
|
-- |
|
-- |
|
Material |
Plastic
outer shell, steel body |
|
Motherboard |
ATX(up
to 12" x 10.7"),Micro-ATX |
|
Multimedia |
-- |
|
Drive
Bay |
External |
None |
|
-- |
|
Internal |
2.5"
or 3.5" x 4, 2.5" x 5 |
|
Cooling
System |
Front |
3
x 120mm / 140mm fan slot (includes 3 x 140mm LED fan) |
|
Rear |
1
x 120mm / 140mm fan slot (includes 1 x 140mm fan) |
|
Side |
-- |
|
Top |
3
x 120mm fan slot or 2 x 140mm fan slot |
|
Bottom |
-- |
|
Internal |
-- |
|
Radiator
Support |
Front |
240mm
/ 280mm / 360mm x 1 |
|
Top |
240mm
/ 280mm / 360mm x 1 |
|
Rear |
120mm
/ 140mm x 1 |
|
Expansion
Slot |
7 |
|
Front
I/O Port |
USB
2.0 x 2 |
|
USB
3.0 x 2 |
|
Audio
x 1 |
|
MIC
x 1 |
|
Power
Supply |
StandardPS2(ATX) |
|
Operating
system support |
-- |
|
Expansion
Card |
Support
graphics card up to 16.5", width restriction - 6.88" |
|
Limitation
of CPU cooler |
180mm |
|
Limitation
of PSU |
240mm |
|
Net
Weight |
9kg |
|

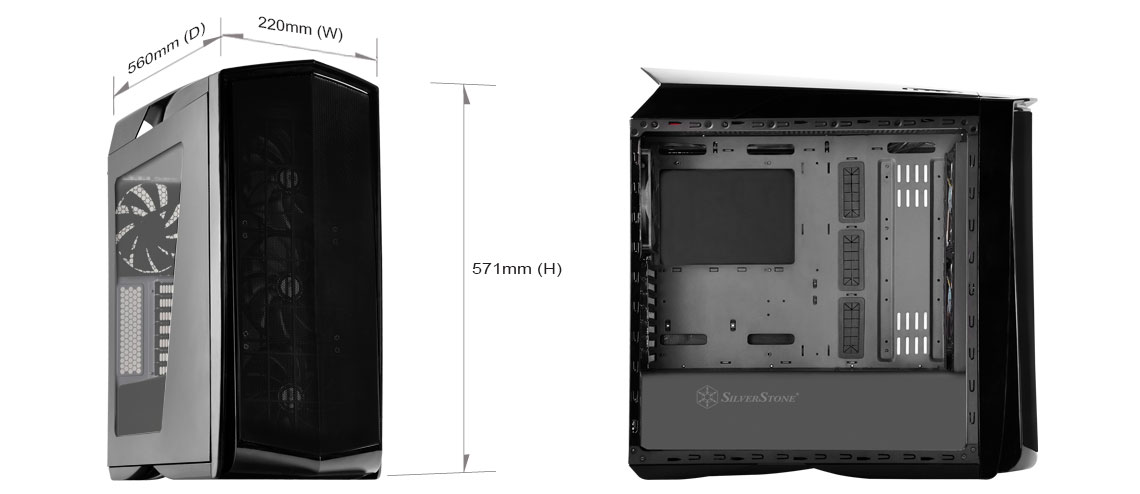

Dimension |
220mm
(W) x 571mm (H) x 560mm (D), 70.3 Liters |
|
Extra |
-- |
|
Support
VESA Mount |
-- |
Remark
* Four modes: full brightness, half brightness, breathing pattern, and
off.
