All stock codes associated to this product
JUA330U, 15AJUA330U, 15A-JUA330U, 4712795080339
Overview
Looking for an easy way to add a second monitor? Let's get to multitasking!
The JUA350 USB 3.0 Display Adapter from j5 create works as an external video
card, instantly allowing users to attach additional displays via an HDMI
connection without the hassle of a lengthy setup or having to install additional
internal hardware. The j5 create USB 3.0 Display Adapter can support up to four
displays running on the same computer, turning your workstation into a fully
functioning multi-display powerhouse.
This video over USB adapter works as an external video card, instantly
allowing additional displays, without the hassle of opening the computer casing
and installing an external graphics card. You can have your 2nd monitor with an

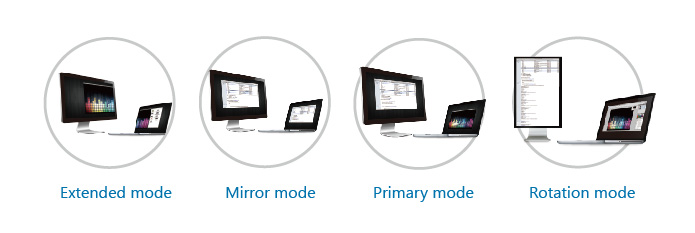

extended display, a mirrored display, a rotational display (rotation mode not
available for MAC), or make it your primary monitor.
Now enjoy true 1080p HD resolution through any computer with a USB 3.0 port.
These adapters are also backwards compatible with USB 2.0 resolutions and
playback, ideal for office applications. Simple "Plug and Play" operation allows
you to connect your computer to a second monitor or projector and within seconds
to create a new visual environment.
Features
-
Easily
add an additional display instantly through the USB3.0 and VGA/DVI
connection
-
Video
playback performs at 1080P HD with a resolution of up to 2048 x 1152
-
Add
an additional monitor without adding an expensive, internal video card,
avoiding complicated installation
-
Hot
swappable USB enables you to add or remove monitors without rebooting your
system
-
Move
and view your large spreadsheets across two screens without overlapping
windows
-
Multitask
with larger landscape/desktop space
-
Ideal
for viewing multiple windows at the same time
-
reat
for multitasking in a wide variety of applications including: Phone centers,
Stock Markets, Hospitals, Graphic Design, Editing, Accounting, Etc
-
A
must have for surfing the web and working on your email/facebook/twitter
accounts all at the same time
Specifications
|
Interface |
|
Host
Interface |
USB 3.0 A-Type
Connector |
|
Video
Interface |
HDMI Female
Connector |
|
HDMI to DVI Converter
Included |
|
Power |
|
Power
Mode |
Bus-powered or Self-
Powered |
|
Power
Consumption |
500mA |
|
Physical
Specification |
|
Housing
Material |
Aluminum |
|

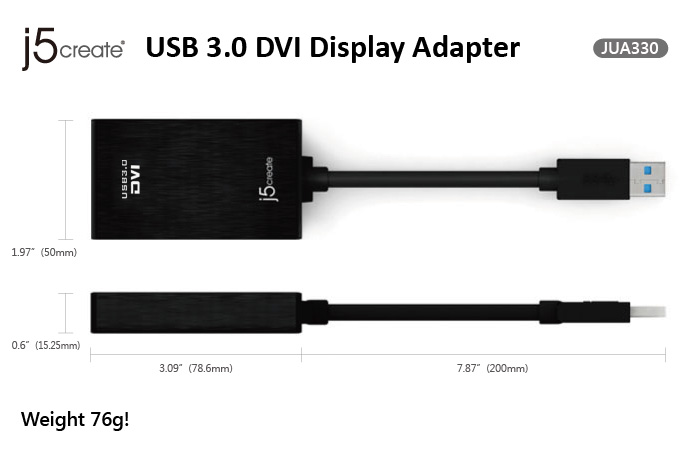

Dimensions |
Main body: 50(W)x
78.6(H)x15.25(D) mm / Cable length: 200 mm |
|
Weight |
Approximately 76
g |
Environments
| Microsoft
Windows 10 / 8.1 / 8 / 7 / XP (32-bit or 64-bit) |
| Mac OS X 10.6
/ 10.7 / 10.8 / 10.9 / 10.10 / 10.11 |
| Available USB
2.0 port |
| Temperature:
Operating -50F~131F / Non- Operating: -77F~167F |
| Minimum
System Requirements |
| Driver will
automatically install on 10 / 8.1 / 8 / 7 (Requires internet access) |
|
QTY |
1~2
Dongle |
34
Dongles |
|
CPU |
Intel i3 Dual Core 2.4
GHz or above |
Intel i5 Dual Core 1.6
GHz or above |
|
RAM |
4 GB or
Higher |
4 GB or
Higher |
|
Full HD
Video |
Playing Video on the
extended monitor |
|
CPU: Intel i5 Quad Core
3.10 GHz or above |
|
RAM: 4 GB or
higher |
|
Higher Processor
recommended for Multi-Displays and optimal
performance. |
| NOTE.
USB HUB is not recommended for USB 3.0 display adapter |
| Note for
Video Player: |
| *Windows 8
& 7 user: "Windows Media Player" is recommended for video playback |
| * Windows
XP & MAC user: Windows XP &MAC products are not supported by USB
3.0 at this time, therefore we suggest USB 2.0 for 'office application' only;
Video Playback is not recommend due to USB 2.0 bandwidth limitations causing
limited video performance. |
*Playing Video
with multiple monitors: only "Media Player Classic" is supported. |
Resolutions and Color Depth
|
Aspect Ratio |
Resolution |
Color Depth |
|
Wide Screen Display |
|
16:09 |
2048 x 1152 |
16,32 bits |
|
16:10 |
1920 x 1200 |
16,32 bits |
|
16:09 |
1920 x 1080 |
16,32 bits |
|
16:10 |
1680 x 1050 |
16,32 bits |
|
16:09 |
1600 x 900 |
16,32 bits |
|
16:10 |
1440 x 900 |
16,32 bits |
|
16:09 |
1360 x 768 |
16,32 bits |
|
16:10 |
1280 x 800 |
16,32 bits |
|
15:09 |
1280 x 768 |
16,32 bits |
|
16:09 |
1280 x 720 |
16,32 bits |
|
Standard Display |
|
4:03 |
1600 x 1200 |
16,32 bits |
|
4:03 |
1400 x 1050 |
16,32 bits |
|
5:04 |
1280 x 1024 |
16,32 bits |
|
4:03 |
1280 x 960 |
16,32 bits |
|
4:03 |
1152 x 864 |
16,32 bits |
|
4:03 |
1024 x 768 |
16,32 bits |
|
4:03 |
800 x 600 |
16,32 bits |
Package Contents
