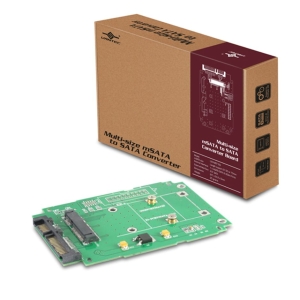

Vantec mSATA to SATA Converter Board
  • 1 x mSATA 6Gb/s Ports (backwards compatible with SATA II/I)

IMG 1 of 1
No Longer Available
Part Number:
410233
(?) Brand:
Vantec Web Site
Manuf No:
UGT-MST100
UGTMST100
Shipping Weight:
0.25 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
UGTMST100, UGT-MST100, ACVAUGTMST100

Overview

The Multi-size mSATA to SATA Converter Board convert an mSATA SSD into a SATA converter board for easy integration into any systems, embedded systems, customs design that requires small form factor. This design offers the flexibility to install the mSATA card anywhere that requires a SATA interface for compatibility purpose. This Converter Board offers the same 6Gb/s performance that you will expect from the mSATA using the pass thru function and the unique design allows for different size mSATA card like 27mm, 50mm, and 70mm in length to be fitted on to the Converter board and it only takes up 5mm in thickness.

Features

  • Convert mSATA to standard 2.5 SATA SSD
  • Support different length mSATA card, 27mm, 50mm or 70mm
  • 2.5 SATA SSD form factor, only 8mm thickness
  • Compatible with SATA I/II/III
  • Pass thru design for maximum 6Gb/s performance
  • Simple design with mounting hole for custom installation into any embedded devices
  • Uses minimum power for better power management
  • Locking Mechanism to hold mSATA SSD in place
  • Fully Compatible with SATA 2.6
  • Support ATA/ATAP-7 Specification
  • Support Dual Power Voltage: 1.8V and 3.3V

Specifications

 Model:

UGT-MST100

 mSATA size:

Length support 27mm, 50mm or 70mm

 Internal Interface:

1 x mSATA 6Gb/s Ports (backwards compatible with SATA II/I)

 External Interface:

2.5 SATA

 Dimension:

97.1 x 64.2 x 5 mm

 Material:

PCB

 Weight:

25 grams

 System Requirements

  • SATA port on system
  • Any OS with SATA support like Windows XP/Vista/7/8/8.1, OS X 10.6 or newer, or Linux

Package Content

  • 1 x Multi-size mSATA to SATA Converter board
  • 1 x Quick install Guide
  • 1 x Screws set

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (Vantec) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
