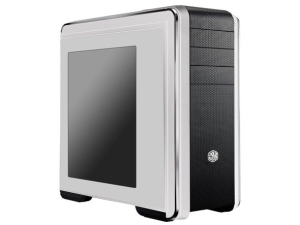

CMS-693-WWN1-V2 | CoolerMaster CM 690 III Mid Tower Case - With Window - NO PSU, Green

Overview

• Full mesh on the front panel and top with large vents on the side panel for superior cooling
• 3 designated places for radiators: 240mm: top, front; 120mm: rear
• Supports up to three 200mm large fans for extreme  airflow with support for up to 9 total fans (KKN1: 9 fans, KWN1: 7 fans, WWN1-V2: 7 fans)
• New ODD tool-less design EZ tray for quick installation
• Supports up to 10 SSDs (4 in the removable HDD/SSD combo cage, 1 behind the M/B tray) and 7 HDDs with HDD/SSD combo trays
• Dual Super Speed USB 3.0

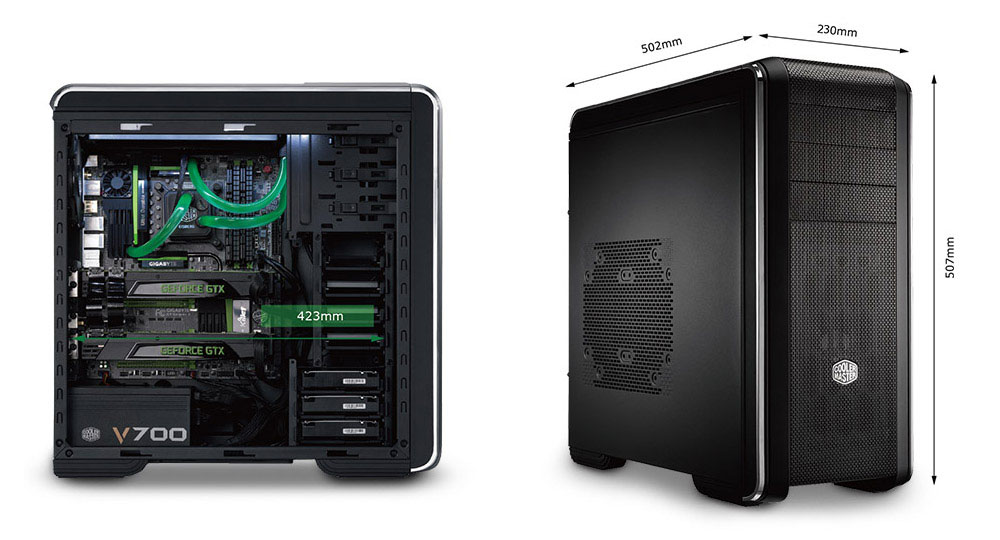

• High-end component support long graphics cards up to 423mm and tall CPU coolers up to 171mm
• Multiple removable dust filters (top, front, PSU) for improved system maintenance
• Top compartment with cover to place personal belongings

Overview

Introducing the new generation of iconic CM 690 series – CM 690 III!

CM 690 III is a revolutionary update to the popular CM 690 II mid-towers.The exterior retains the curved metal mesh look the series is known for. The interior has been completely updated the HDD/SSD combo cage can be switched between 3.5-inch or 2.5-inch drives by adjustable trays without any screw.There's enough room for a 240mm liquid cooling radiator at the top or front, 120mm in the rear and supports up to 9 fans, including 3 large 200mm fans for extreme airflow. And cleaning is hassle free thanks to the multiple dust filters at the bottom, top, and front.

Features

• Removable top cover for easier installation and maintenance
• Supports long VGAs up to 423mm / 16.6 inch
• Large slide-out dust filter for easy maintenance
• Dual SuperSpeed USB 3.0; The cover protects I/O area and top compartment
• Removable HDD/SSD combo cage with adjustable HDD/SSD trays
• Extra cable management space (27mm); Supports one SSD behind the M/B tray

Cooling

• Supports a 240mm radiator at the top
• Supports a 120mm radiator in the rear
• Supports two 120mm fans or one 180/200mm fan on the side panel (CMS-693-KKN1)
• Supports a 200mm fan at the top
• Supports a 240mm radiator in the front
• Includes a front 200mm fan for high airflow

Airflow

• Top: 120/140mm fan x 2, or 200mm fan x 1 (optional)

• Front: 200mm fan x 1 (installed), or 120/140mm fan x 2 / 180mm fan x 1 (optional)

• Rear: 120mm fan x 1 (installed)

• Side: 120mm fan x 2 or 180/200mm fan x 1 (optional) for CMS-693-KKN1

• Bottom: 120mm fan x 1 (optional)

• HDD cage: 120mm fan x 1 (optional)

MORE INFORMATION

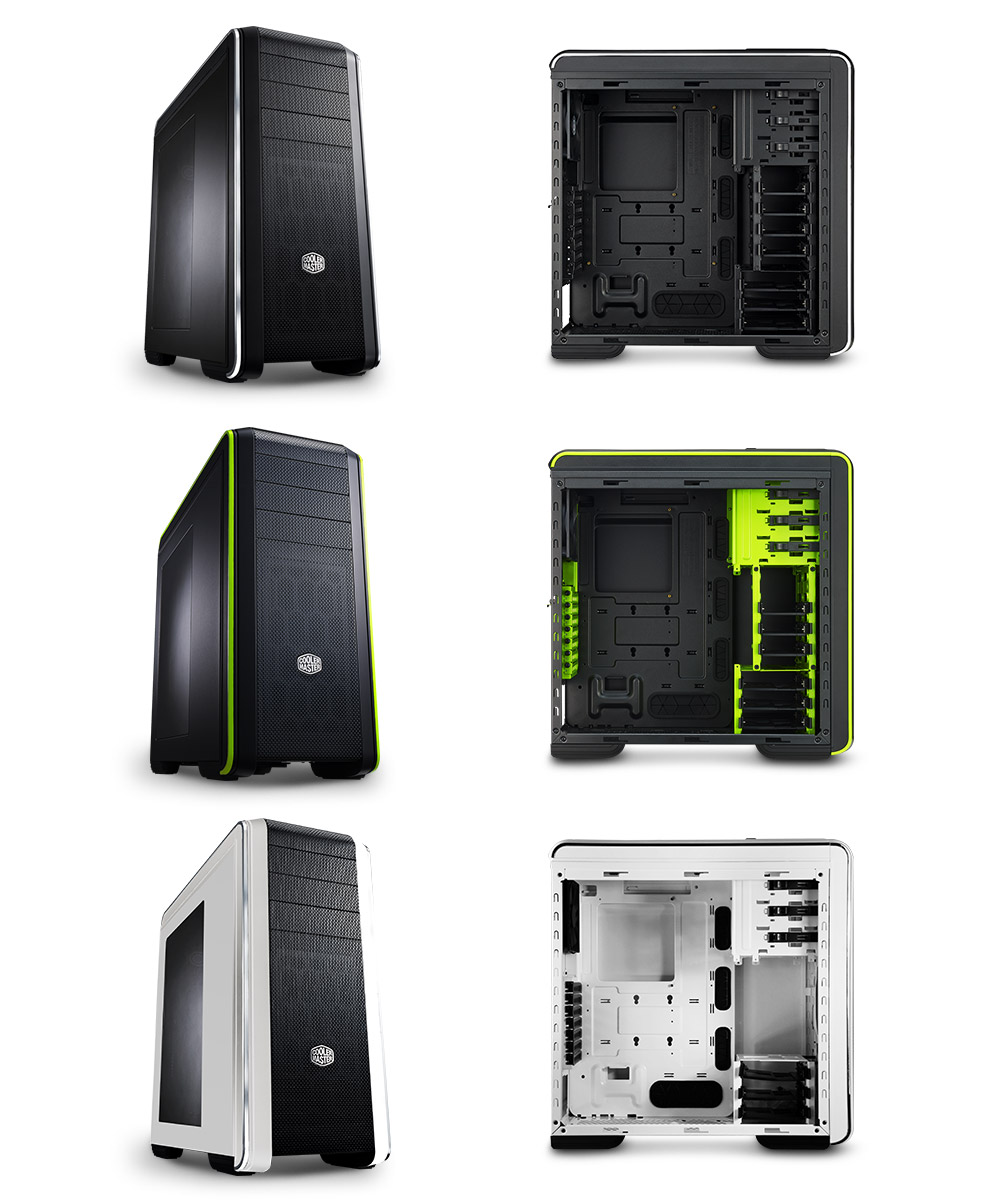

THREE COLORS TO CHOOSE: SILVER / GREEN / WHITE

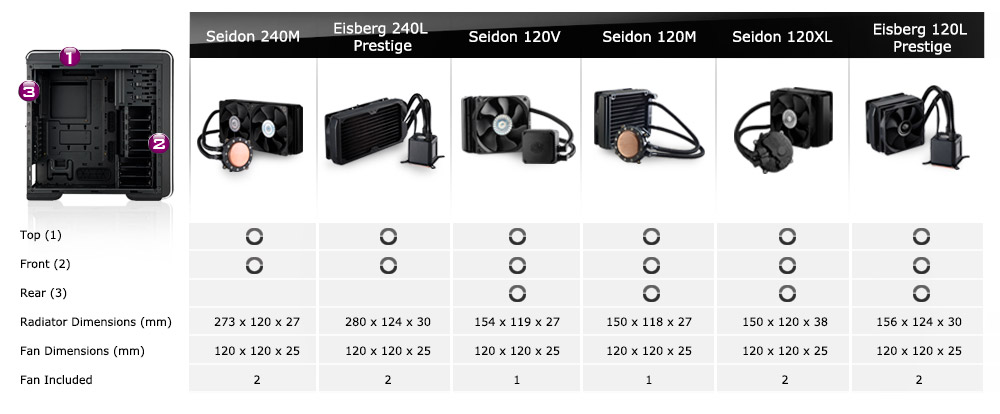

LIQUID COOLING COMPATIBILITY LIST

Compatible With

• Seidon 240M
• Eisberg 240L Prestige
• Seidon 120M
• Seidon 120XL
• Eisberg 120L Prestige

Specifications
